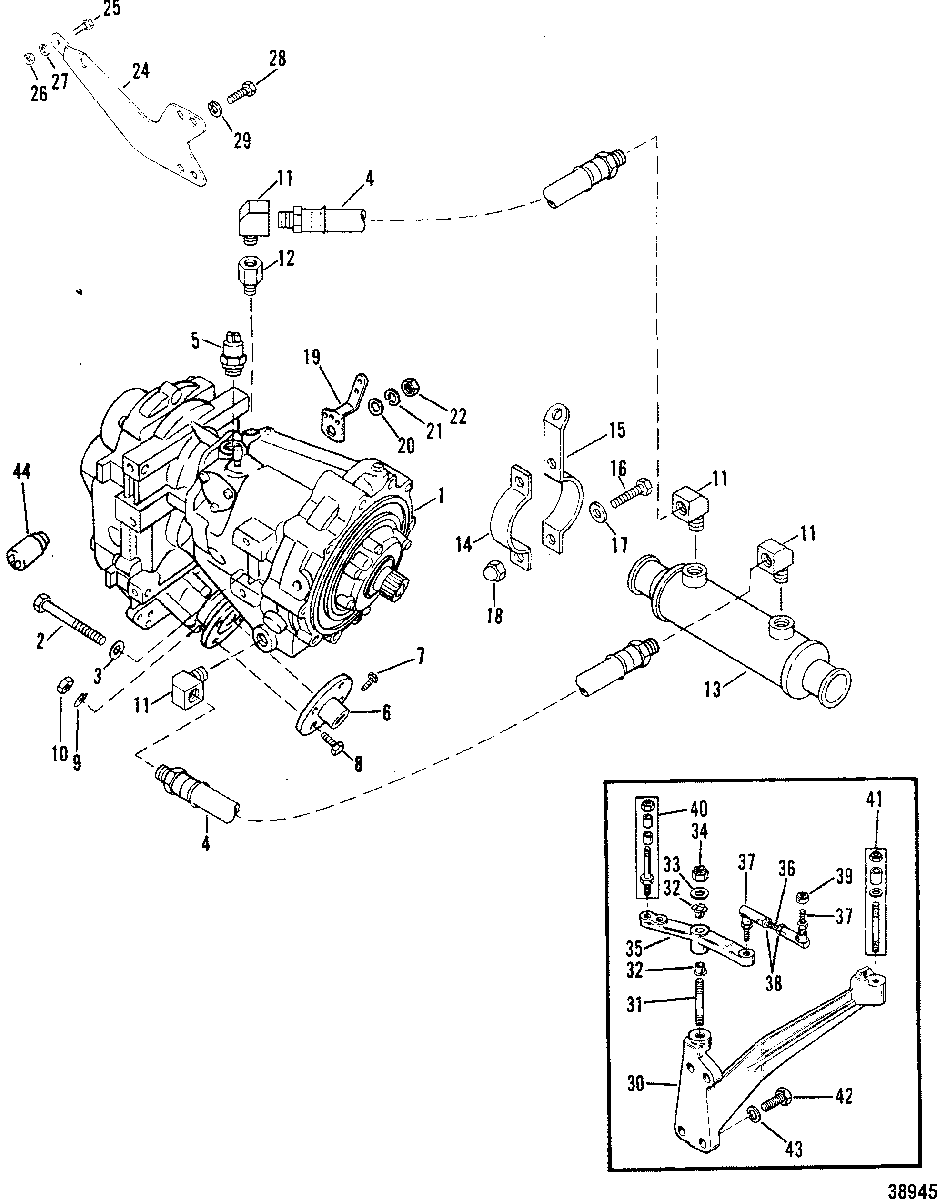

TRANSMISSION AND RELATED PARTS(V-DRIVE) для Mercruiser - 7.4l MIE W/B/W GM 454 V-8 1988-1992 0B788366 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    60959A6 TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)
    TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)
  • 1
    60960A6 TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)
    TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)
  • 1
    60961A6 TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)
    TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)
  • 1
    60962A6 TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)
    TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)
  • 2
    10-60179 SCREW, (.437-14 x 3.500), TRANSMISSION
    SCREW, (.437-14 x 3.500), TRANSMISSION
  • 3
    13-32993 LOCKWASHER, (.437), TRANSMISSION SCREW
    LOCKWASHER, (.437), TRANSMISSION SCREW
  • 4
    32-4751613 HOSE, (49.00 Inches), OIL COOLER/TRANSMISSION
    HOSE, (49.00 Inches), OIL COOLER/TRANSMISSION
  • 4
    32-475166 HOSE ASSEMBLY, (30.00 Inches), OIL COOLER/TRANSMISSION
    HOSE ASSEMBLY, (30.00 Inches), OIL COOLER/TRANSMISSION
  • 5
    87-88031 SWITCH ASSEMBLY, TEMPERATURE
    SWITCH ASSEMBLY, TEMPERATURE
  • 6
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 6
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    FLANGE ASSEMBLY, (5.00 x 1.125)
  • 6
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 6
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 6
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 6
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 6
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
    FLANGE ASSEMBLY, (5.00 x 2.00)
  • 7
    10-60171 SCREW, (.375-16 x 1.250), FLANGE
    (Use only with flanges having 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", or 1-3/4" shafts)
    SCREW, (.375-16 x 1.250), FLANGE
    (Use only with flanges having 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", or 1-3/4" shafts)
  • 7
    10-60169 SCREW, (.375-16 x .750), FLANGE
    (Use only with flanges having 2" shafts)
    SCREW, (.375-16 x .750), FLANGE
    (Use only with flanges having 2" shafts)
  • 8
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 9
    13-32993 LOCKWASHER, (.437), FLANGE SCREW
    LOCKWASHER, (.437), FLANGE SCREW
  • 10
    11-22024 NUT, (.437-14), FLANGE SCREW
    NUT, (.437-14), FLANGE SCREW
  • 11
    22-47629 ELBOW, 90 Degree, HOSE
    ELBOW, 90 Degree, HOSE
  • 11
    22-63824 ELBOW (90 EXTENDED) - HOSE
    ELBOW (90 EXTENDED) - HOSE
  • 12
    22-88517 FITTING, Reducing, ELBOW
    FITTING, Reducing, ELBOW
  • 13
    63832T COOLER, Transmission Oil
    COOLER, Transmission Oil
  • 14
    56328A1 BRACKET, OIL COOLER (SHORT)
    BRACKET, OIL COOLER (SHORT)
  • 15
    63820F3 BRACKET, OIL COOLER (LONG)
    BRACKET, OIL COOLER (LONG)
  • 16
    10-69028 SCREW, (.250-28 x .750) Stainless Steel, OIL COOLER BRACKET
    SCREW, (.250-28 x .750) Stainless Steel, OIL COOLER BRACKET
  • 17
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, OIL COOLER BRACKET SCREW
    WASHER, (.406 x .734 x .063) Stainless Steel, OIL COOLER BRACKET SCREW
  • 18
    11-30506 NUT, (.250-28), OIL COOLER BRACKET SCREW
    NUT, (.250-28), OIL COOLER BRACKET SCREW
  • 19
    43325 LEVER
    LEVER
  • 20
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 21
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 22
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 24
    93141A7 BRACKET ASSEMBLY, SHIFT CABLE
    NON-SIDE ENTRY
    BRACKET ASSEMBLY, SHIFT CABLE
    NON-SIDE ENTRY
  • 25
    10-93139 SCREW, SHIFT CABLE (1-1/8")
    NON-SIDE ENTRY
    SCREW, SHIFT CABLE (1-1/8")
    NON-SIDE ENTRY
  • 26
    11-8267089 NUT, (.250-28), SHIFT CABLE SCREW
    NUT, (.250-28), SHIFT CABLE SCREW
  • 27
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel, SHIFT CABLE SCREW
    WASHER, (.330 x .750 x .060) Stainless Steel, SHIFT CABLE SCREW
  • 28
    10-92913 SCREW, BRACKET TO TRUNNION (3/4") NON-SIDE ENTRY
    SCREW, BRACKET TO TRUNNION (3/4") NON-SIDE ENTRY
  • 29
    13-32993 LOCKWASHER, (.437), BRACKET SCREW
    NON-SIDE ENTRY
    LOCKWASHER, (.437), BRACKET SCREW
    NON-SIDE ENTRY
  • 30
    98578A2 BRACKET, SHIFT
    SIDE ENTRY
    BRACKET, SHIFT
    SIDE ENTRY
  • 31
    16-8M0034438 STUD, (.375-24/.375-16 x 2.250), CRANK TO BRACKET
    SIDE ENTRY
    STUD, (.375-24/.375-16 x 2.250), CRANK TO BRACKET
    SIDE ENTRY
  • 32
    23-26954 BUSHING, CRANK STUD
    SIDE ENTRY
    BUSHING, CRANK STUD
    SIDE ENTRY
  • 33
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, CRANK STUD
    SIDE ENTRY
    WASHER, (.406 x .734 x .063) Stainless Steel, CRANK STUD
    SIDE ENTRY
  • 34
    11-862903 NUT, (.375-24), CRANK STUD
    SIDE ENTRY
    NUT, (.375-24), CRANK STUD
    SIDE ENTRY
  • 35
    98576 CRANNK, SHIFT
    SIDE ENTRY
    CRANNK, SHIFT
    SIDE ENTRY
  • 36
    98574A1 SHIFT ROD ASSEMBLY
    SHIFT ROD ASSEMBLY
  • 37
    73393 BALL JOINT
    BALL JOINT
  • 38
    11-25168 NUT, (.250-28), JAM
    SIDE ENTRY
    NUT, (.250-28), JAM
    SIDE ENTRY
  • 39
    11-8267089 NUT, (.250-28), CABLE TO SHIFT ROD
    SIDE ENTRY
    NUT, (.250-28), CABLE TO SHIFT ROD
    SIDE ENTRY
  • 40
    16-97477A3 STUD KIT, CABLE TO CRANK
    SIDE ENTRY
    STUD KIT, CABLE TO CRANK
    SIDE ENTRY
  • 41
    16-73563A1 STUD KIT, CABLE TO SHIFT BRACKET
    SIDE ENTRY
    STUD KIT, CABLE TO SHIFT BRACKET
    SIDE ENTRY
  • 42
    10-47462 SCREW, (.437-14 x 1.250), SHIFT BRACKET TO TRANSMISSION
    SIDE ENTRY
    SCREW, (.437-14 x 1.250), SHIFT BRACKET TO TRANSMISSION
    SIDE ENTRY
  • 43
    13-32993 LOCKWASHER, (.437), SHIFT BRACKET SCREW
    SIDE ENTRY
    LOCKWASHER, (.437), SHIFT BRACKET SCREW
    SIDE ENTRY
  • 44
    47613 SWITCH, NEUTRAL START
    SWITCH, NEUTRAL START
