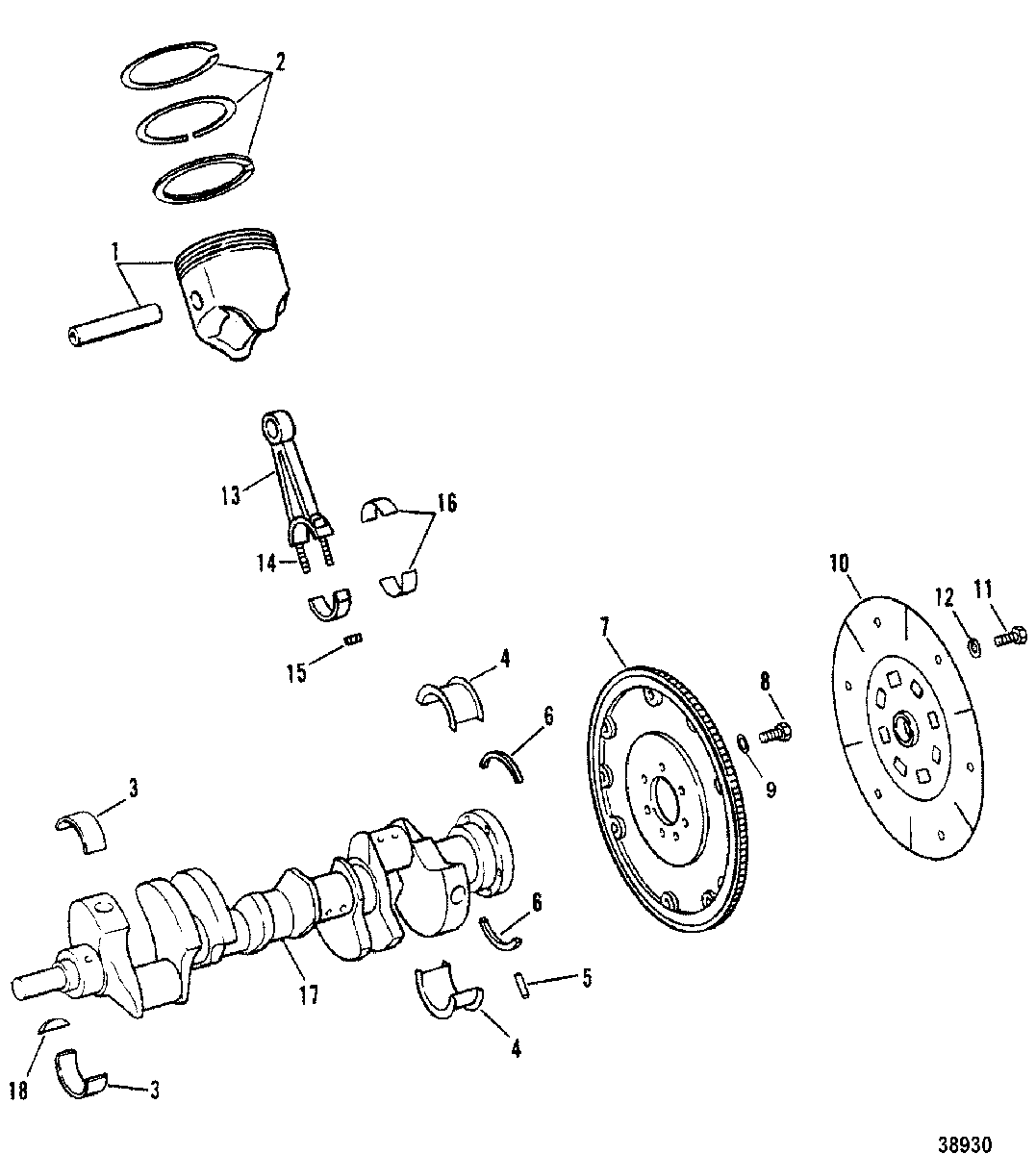

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 7.4l MIE W/B/W GM 454 V-8 1988-1992 0B788366 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    737-879194035 PISTON ASSEMBLY (STANDARD)
    PISTON ASSEMBLY (STANDARD)
  • 2
    737-6615T1 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 2
    39-67127 RING SET, Piston - Standard
    RING SET, Piston - Standard
  • 2
    39-67128 RING SET, Piston - .030 Oversize
    RING SET, Piston - .030 Oversize
  • 3
    23-818473001 BEARING, CRANKSHAFT (STANDARD)
    BEARING, CRANKSHAFT (STANDARD)
  • 3
    23-818474 BEARING, CRANKSHAFT MAIN (.001 USA)
    BEARING, CRANKSHAFT MAIN (.001 USA)
  • 3
    23-818475 BEARING, CRANKSHAFT MAIN (.002 USA)
    BEARING, CRANKSHAFT MAIN (.002 USA)
  • 3
    23-85724 BEARING, CRANKSHAFT MAIN (.010 USA)
    BEARING, CRANKSHAFT MAIN (.010 USA)
  • 3
    23-818477 BEARING, CRANKSHAFT MAIN (.020 USA)
    BEARING, CRANKSHAFT MAIN (.020 USA)
  • 4
    23-818473001 BEARING, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING, CRANKSHAFT MAIN - REAR (STANDARD)
  • 4
    23-818474 BEARING, CRANKSHAFT MAIN - REAR (.001 USA)
    BEARING, CRANKSHAFT MAIN - REAR (.001 USA)
  • 4
    23-818475 BEARING, CRANKSHAFT MAIN - REAR (.002 USA)
    BEARING, CRANKSHAFT MAIN - REAR (.002 USA)
  • 4
    23-818476001 BEARING, CRANKSHAFT MAIN - REAR (.010 USA)
    BEARING, CRANKSHAFT MAIN - REAR (.010 USA)
  • 4
    23-818477 BEARING, CRANKSHAFT MAIN - REAR (.020 USA)
    BEARING, CRANKSHAFT MAIN - REAR (.020 USA)
  • 5
    17-843378 PIN, Dowel (1/4 In. Diameter), REAR BEARING CAP (1/4" DIA.)
    PIN, Dowel (1/4 In. Diameter), REAR BEARING CAP (1/4" DIA.)
  • 6
    26-8M0062773 SEAL, REAR BEARING CAP (L.H. ROTATION)
    SEAL, REAR BEARING CAP (L.H. ROTATION)
  • 6
    26-75980 SEAL, Oil, REAR BEARING CAP (R.H. ROTATION)
    SEAL, Oil, REAR BEARING CAP (R.H. ROTATION)
  • 7
    230-5534 FLYWHEEL
    FLYWHEEL
  • 8
    10-845757 SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
    SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
  • 9
    13-39131 LOCKWASHER, (.437), FLYWHEEL SCREW
    LOCKWASHER, (.437), FLYWHEEL SCREW
  • 10
    860125T DRIVE PLATE, FLYWHEEL
    DRIVE PLATE, FLYWHEEL
  • 11
    10-35091 SCREW, (.375-16 x 1.00), DRIVE PLATE TO FLYWHEEL
    SCREW, (.375-16 x 1.00), DRIVE PLATE TO FLYWHEEL
  • 12
    13-35048 LOCKWASHER, (.375), DRIVE PLATE SCREW
    LOCKWASHER, (.375), DRIVE PLATE SCREW
  • 13
    614-8M0030663 CONNECTING ROD
    CONNECTING ROD
  • 14
    10-52192 BOLT, CONNECTING ROD CAP
    BOLT, CONNECTING ROD CAP
  • 15
    11-37493 NUT, (.375-24), CONNECTING ROD CAP BOLT
    NUT, (.375-24), CONNECTING ROD CAP BOLT
  • 16
    23-85726001 BEARING SET, Connecting Rod - Standard
    BEARING SET, Connecting Rod - Standard
  • 16
    23-85727 BEARING SET, Connecting Rod - (.001 Undersize)
    BEARING SET, Connecting Rod - (.001 Undersize)
  • 16
    23-85728 BEARING SET, Connecting Rod - (.002 Undersize)
    BEARING SET, Connecting Rod - (.002 Undersize)
  • 16
    23-85691 BEARING SET, Connecting Rod - (.010 Undersize)
    BEARING SET, Connecting Rod - (.010 Undersize)
  • 16
    23-85729 BEARING SET, Connecting Rod - (.020 Undersize)
    BEARING SET, Connecting Rod - (.020 Undersize)
  • 17
    429-6612 CRANKSHAFT (L.H. ROTATION)
    CRANKSHAFT (L.H. ROTATION)
  • 17
    429-6612 CRANKSHAFT (R.H. ROTATION)
    CRANKSHAFT (R.H. ROTATION)
  • 18
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
