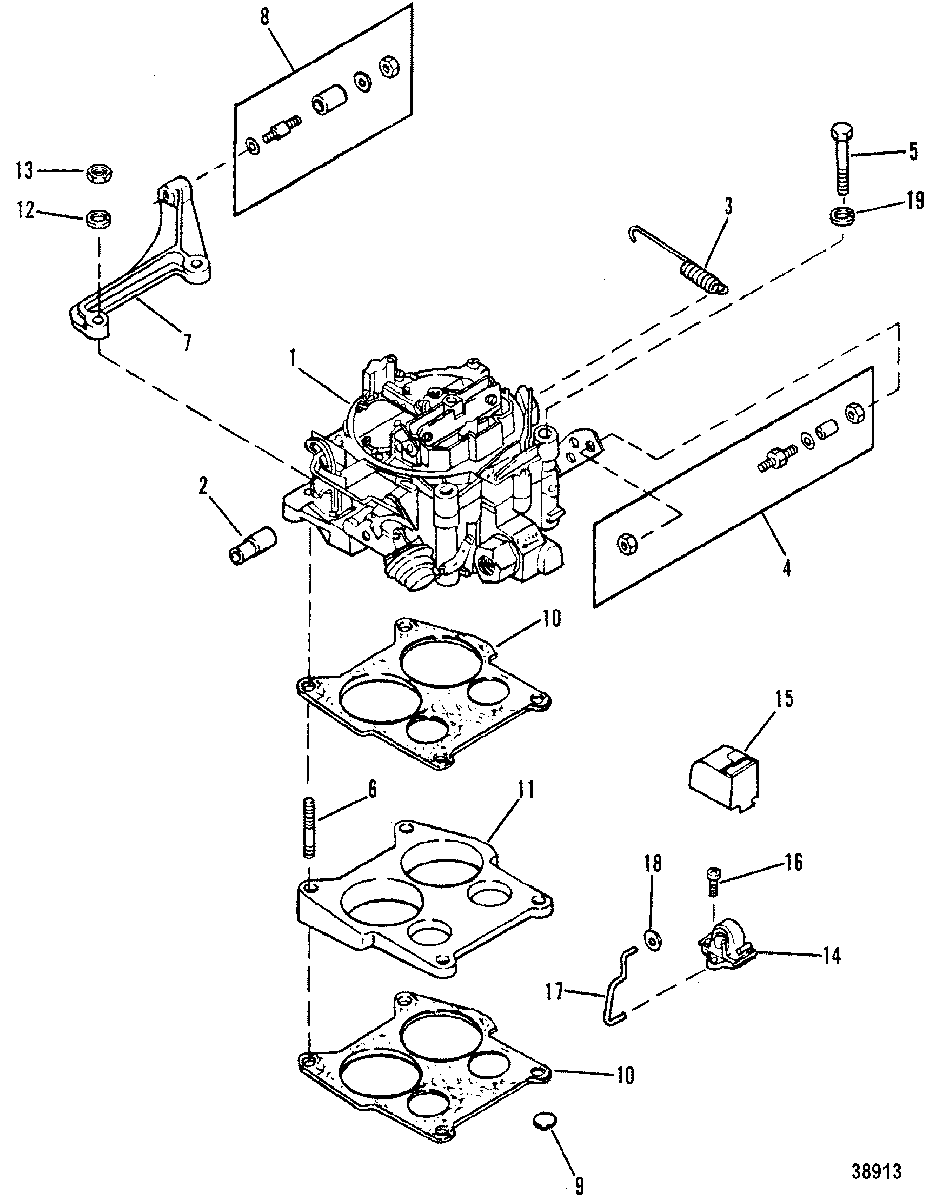

CARBURETOR AND LINKAGE для Mercruiser - 7.4l MIE W/B/W GM 454 V-8 1988-1992 0B788366 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    1347-804626R02 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    22-97282 CONNECTOR
    CONNECTOR
  • 3
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 4
    16-97477A3 STUD KIT
    STUD KIT
  • 5
    10-74822 SCREW, (.312-18 x 3.500) (HORIZONTAL MOUNTING)
    SCREW, (.312-18 x 3.500) (HORIZONTAL MOUNTING)
  • 6
    16-63332 STUD, (.312 x 1.2812)
    STUD, (.312 x 1.2812)
  • 6
    16-46857 STUD, (5/16 x 1-7/8) (HORIZONTAL MOUNTING)
    STUD, (5/16 x 1-7/8) (HORIZONTAL MOUNTING)
  • 6
    16-53724 STUD, (5/16 x 1-3/4) (1-3/4")
    STUD, (5/16 x 1-3/4) (1-3/4")
  • 6
    16-97940 STUD (2-1/8") (HORIZONTAL MOUNTING)
    STUD (2-1/8") (HORIZONTAL MOUNTING)
  • 6
    16-53722 STUD, (5/16 x 4-3/8) (4-3/8")
    STUD, (5/16 x 4-3/8) (4-3/8")
  • 7
    49929 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 7
    41329A5 BRACKET, THROTTLE CABLE (HORIZONTAL MTG/V-DRIVE)
    BRACKET, THROTTLE CABLE (HORIZONTAL MTG/V-DRIVE)
  • 8
    16-73563A1 STUD KIT
    STUD KIT
  • 9
    22-12524 PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
  • 10
    27-524572 GASKET
    GASKET
  • 11
    53513A4 WEDGE
    WEDGE
  • 12
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 13
    11-862902 NUT, (.9375-24)
    NUT, (.9375-24)
  • 14
    66205 CHOKE, AUTOMATIC
    CHOKE, AUTOMATIC
  • 15
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 16
    10-69235 SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT
    SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT
  • 17
    66197 CHOKE ROD, CHOKE
    CHOKE ROD, CHOKE
  • 17
    77931 CHOKE ROD (HORIZONTAL MOUNTING)
    CHOKE ROD (HORIZONTAL MOUNTING)
  • 18
    54-59989 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
  • 19
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
