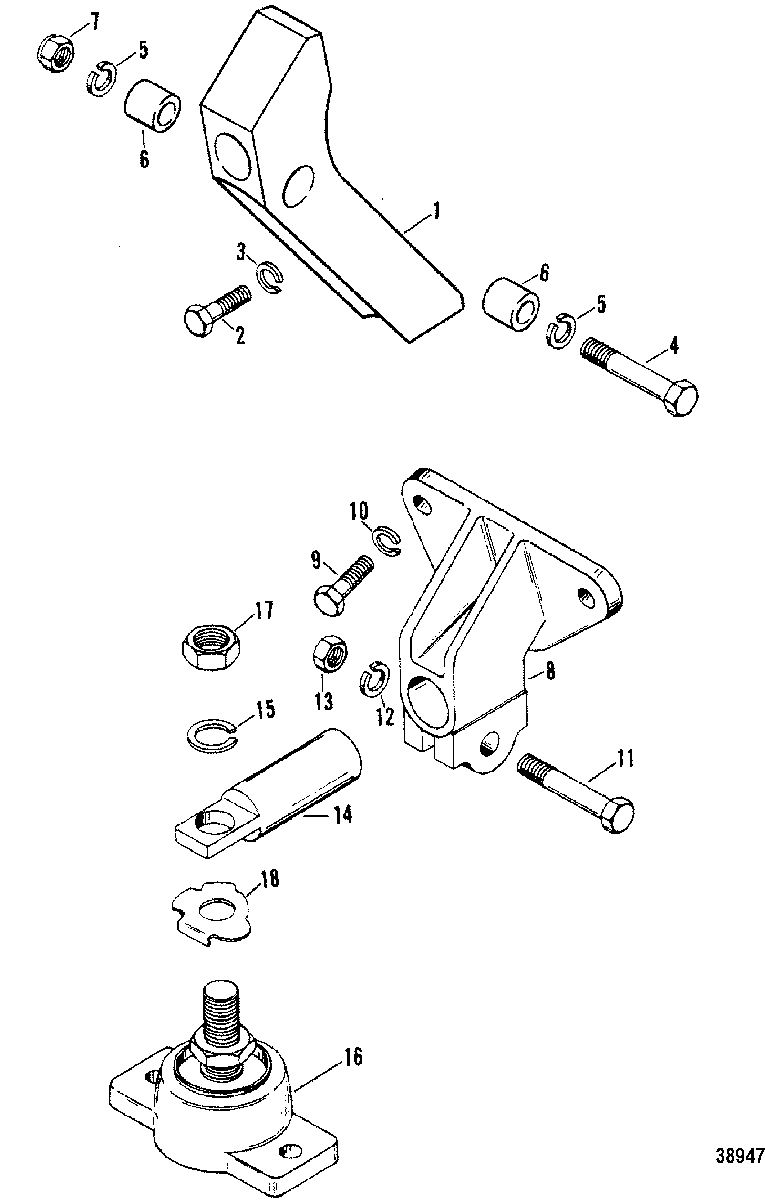

TRANSMISSION AND ENGINE MOUNTING(V-DRIVE) для Mercruiser - 7.4l MIE W/B/W GM 454 V-8 1988-1992 0B788366 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    62285 BRACKET, MOUNTING (REAR)
    BRACKET, MOUNTING (REAR)
  • 2
    10-47462 SCREW, (.437-14 x 1.250), MOUNTING BRACKET TO TRANSMISSION
    SCREW, (.437-14 x 1.250), MOUNTING BRACKET TO TRANSMISSION
  • 3
    13-32993 LOCKWASHER, (.437), MOUNTING BRACKET SCREW
    LOCKWASHER, (.437), MOUNTING BRACKET SCREW
  • 4
    10-47654 SCREW, (.437-14 x 2.750), CLAMPING - MOUNTING BRACKET
    SCREW, (.437-14 x 2.750), CLAMPING - MOUNTING BRACKET
  • 5
    13-32993 LOCKWASHER, (.437), CLAMPING SCREW
    LOCKWASHER, (.437), CLAMPING SCREW
  • 6
    54-47528 CLAMP, ADJUSTING TRUNNION SCREW
    CLAMP, ADJUSTING TRUNNION SCREW
  • 7
    11-82670814 NUT, (.437-14), SCREW CLAMPING
    NUT, (.437-14), SCREW CLAMPING
  • 8
    66418T BRACKET, Front, MOUNTING - ENGINE
    BRACKET, Front, MOUNTING - ENGINE
  • 9
    10-68101 SCREW, (.375-16 x 1.375), MOUNTING BRACKET
    SCREW, (.375-16 x 1.375), MOUNTING BRACKET
  • 10
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
  • 11
    10-37269 SCREW, (.437-14 x 2.00), CLAMPING - MOUNTING BRACKET
    SCREW, (.437-14 x 2.00), CLAMPING - MOUNTING BRACKET
  • 12
    13-32993 LOCKWASHER, (.437), CLAMPING SCREW
    LOCKWASHER, (.437), CLAMPING SCREW
  • 13
    11-82670814 NUT, (.437-14), CLAMPING SCREW
    NUT, (.437-14), CLAMPING SCREW
  • 14
    66166A4 TRUNNION, ADJUSTING - MOUNTING BRACKET
    TRUNNION, ADJUSTING - MOUNTING BRACKET
  • 15
    13-68102 LOCKWASHER, (.750), MOUNTING BRACKET
    LOCKWASHER, (.750), MOUNTING BRACKET
  • 16
    66284A2 BASE ASSEMBLY, ENGINE MOUNT
    BASE ASSEMBLY, ENGINE MOUNT
  • 17
    11-20739 NUT, (.750-16), JAM - ENGINE MOUNT BASE
    NUT, (.750-16), JAM - ENGINE MOUNT BASE
  • 18
    14-66658 TAB WASHER, ENGINE MOUNT BASE
    TAB WASHER, ENGINE MOUNT BASE
