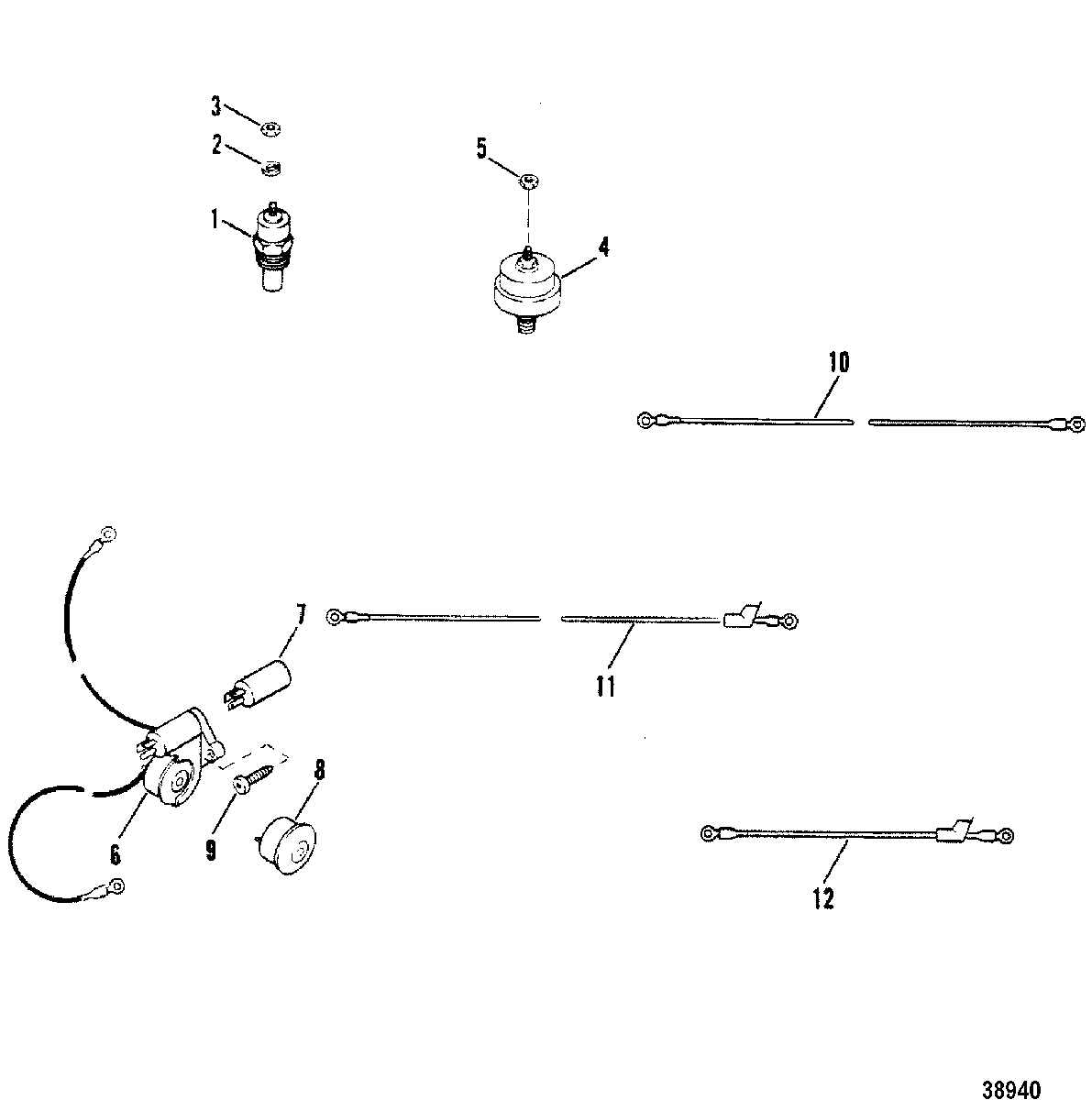

AUDIO WARNING SYSTEM для Mercruiser - 7.4l MIE W/B/W GM 454 V-8 1988-1992 0B788366 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    48952 SWITCH ASSEMBLY, WATER TEMPERATURE
    (STANDARD COOLING)
    SWITCH ASSEMBLY, WATER TEMPERATURE
    (STANDARD COOLING)
  • 1
    87-86080 SWITCH, Temperature, WATER TEMPERATURE
    (CLOSED COOLING)
    SWITCH, Temperature, WATER TEMPERATURE
    (CLOSED COOLING)
  • 2
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 3
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 4
    87-805605A1 SWITCH, Pressure
    SWITCH, Pressure
  • 5
    11-45076 NUT, (#10-32) Brass, PRESSURE SWITCH TERMINAL
    NUT, (#10-32) Brass, PRESSURE SWITCH TERMINAL
  • 6
    816492A14 HOUSING KIT, Buzzer
    HOUSING KIT, Buzzer
  • 7
    816492A14 TIMER, TEMPERATURE BUZZER
    TIMER, TEMPERATURE BUZZER
  • 8
    68878A6 HORN ASSEMBLY, Buzzer Alarm
    HORN ASSEMBLY, Buzzer Alarm
  • 9
    10-69013 SCREW, (#10-16 x .880), HORN ATTACHING
    SCREW, (#10-16 x .880), HORN ATTACHING
  • 10
    84-86044A4 CABLE ASSEMBLY, (36 Inches ) Tan/Blue, TAN/BLUE (36")
    CABLE ASSEMBLY, (36 Inches ) Tan/Blue, TAN/BLUE (36")
  • 11
    84-88032A1 CABLE ASSEMBLY, (20 Inches ) Tan/Blue, TAN/BLUE (20")
    CABLE ASSEMBLY, (20 Inches ) Tan/Blue, TAN/BLUE (20")
  • 12
    84-86322A8 CABLE ASSEMBLY, (8.00 Inches) Black
    CABLE ASSEMBLY, (8.00 Inches) Black
