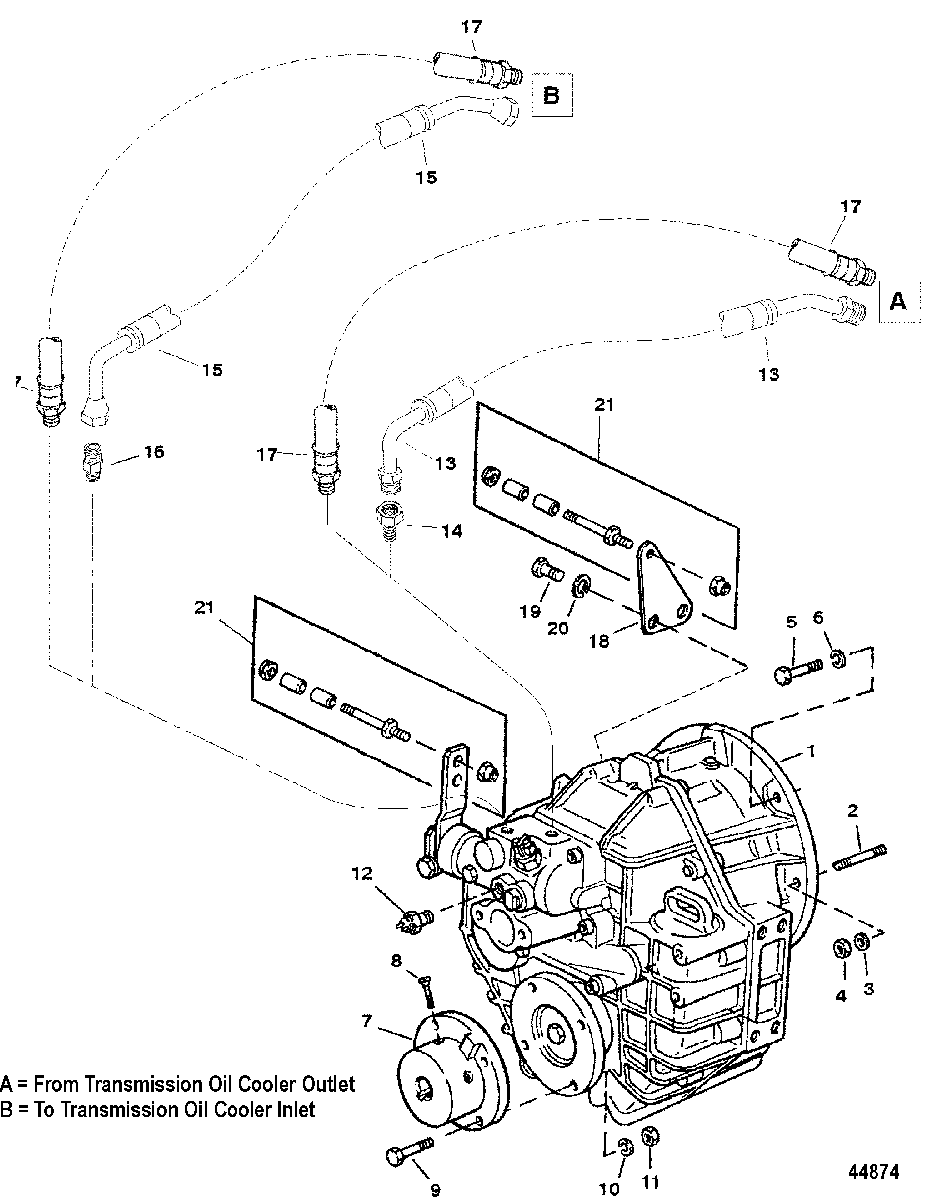

TRANSMISSION AND RELATED PARTS(HURTH 630 & 800) для Mercruiser - 7.4L MIE MPI (LH) GEN. VI GM 454 V-8 1996-1997 0F820104 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    863744T2 TRANSMISSION, (1.5:1 Ratio)
    TRANSMISSION, (1.5:1 Ratio)
  • 1
    863744T3 TRANSMISSION, (2.0:1 Ratio)
    IN-LINE TRANSMISSION (630)
    TRANSMISSION, (2.0:1 Ratio)
    IN-LINE TRANSMISSION (630)
  • 1
    806729A2 TRANSMISSION
    (2.5:1 RATIO)
    TRANSMISSION
    (2.5:1 RATIO)
  • 1
    806730A2 TRANSMISSION
    (2.8:1 RATIO) IN-LINE TRANSMISSION (800)
    TRANSMISSION
    (2.8:1 RATIO) IN-LINE TRANSMISSION (800)
  • 1
    863745T2 TRANSMISSION, (1.5:1 Ratio)
    V-DRIVE TRANSMISSION
    TRANSMISSION, (1.5:1 Ratio)
    V-DRIVE TRANSMISSION
  • 1
    863745T3 TRANSMISSION, (2.0:1 Ratio)
    V-DRIVE TRANSMISSION
    TRANSMISSION, (2.0:1 Ratio)
    V-DRIVE TRANSMISSION
  • 1
    863745T4 TRANSMISSION, (2.5:1 Ratio)
    V-DRIVE TRANSMISSION
    TRANSMISSION, (2.5:1 Ratio)
    V-DRIVE TRANSMISSION
  • 2
    16-805259 STUD
    V-DRIVE TRANSMISSION
    STUD
    V-DRIVE TRANSMISSION
  • 3
    12-22248 WASHER, (.453 x .875 x .060)
    IN-LINE TRANSMISSION (630) & V-DRIVE TRANSMISSION
    WASHER, (.453 x .875 x .060)
    IN-LINE TRANSMISSION (630) & V-DRIVE TRANSMISSION
  • 4
    11-34933 NUT, (.437-20) Stainless Steel
    V-DRIVE TRANSMISSION
    NUT, (.437-20) Stainless Steel
    V-DRIVE TRANSMISSION
  • 5
    10-47462 SCREW, (.437-14 x 1.250)
    V-DRIVE TRANSMISSION
    SCREW, (.437-14 x 1.250)
    V-DRIVE TRANSMISSION
  • 6
    13-32993 LOCKWASHER, (.437)
    V-DRIVE TRANSMISSION
    LOCKWASHER, (.437)
    V-DRIVE TRANSMISSION
  • 2
    16-8M0034453 STUD, (.437-14/.437-20 x 2.190)
    STUD, (.437-14/.437-20 x 2.190)
  • 3
    12-79552 WASHER, (.453 x .750 x .062) Stainless Steel
    IN-LINE TRANSMISSION (800)
    WASHER, (.453 x .750 x .062) Stainless Steel
    IN-LINE TRANSMISSION (800)
  • 4
    11-859116 NUT, (.4375-20)
    NUT, (.4375-20)
  • 7
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 7
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    FLANGE ASSEMBLY, (5.00 x 1.125)
  • 7
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 7
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 7
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 7
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 7
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
    FLANGE ASSEMBLY, (5.00 x 2.00)
  • 8
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 8
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 9
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 10
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 11
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 12
    87-88031 SWITCH, Tempature
    SWITCH, Tempature
  • 13
    32-807416 HOSE, Oil (FROM OIL COOLER)
    USE WITH SIDE MOUNTED OIL COOLER
    HOSE, Oil (FROM OIL COOLER)
    USE WITH SIDE MOUNTED OIL COOLER
  • 14
    22-93190 FITTING, (.375 NPTF x .50 Inverted Flare)
    USE WITH SIDE MOUNTED OIL COOLER
    FITTING, (.375 NPTF x .50 Inverted Flare)
    USE WITH SIDE MOUNTED OIL COOLER
  • 15
    32-807414 HOSE (TO OIL COOLER)
    USE WITH SIDE MOUNTED OIL COOLER
    HOSE (TO OIL COOLER)
    USE WITH SIDE MOUNTED OIL COOLER
  • 16
    22-807272 FITTING, (.50) Inch Flare To (.375) Inch NPT
    USE WITH SIDE MOUNTED OIL COOLER
    FITTING, (.50) Inch Flare To (.375) Inch NPT
    USE WITH SIDE MOUNTED OIL COOLER
  • 17
    32-8054781 HOSE, (19.50) (FROM OIL COOLER)
    USE WITH REAR MOUNTED OIL COOLER
    HOSE, (19.50) (FROM OIL COOLER)
    USE WITH REAR MOUNTED OIL COOLER
  • 18
    806238 BRACKET
    BRACKET
  • 19
    10-40001124 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 20
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 21
    16-97477A3 STUD KIT
    STUD KIT
