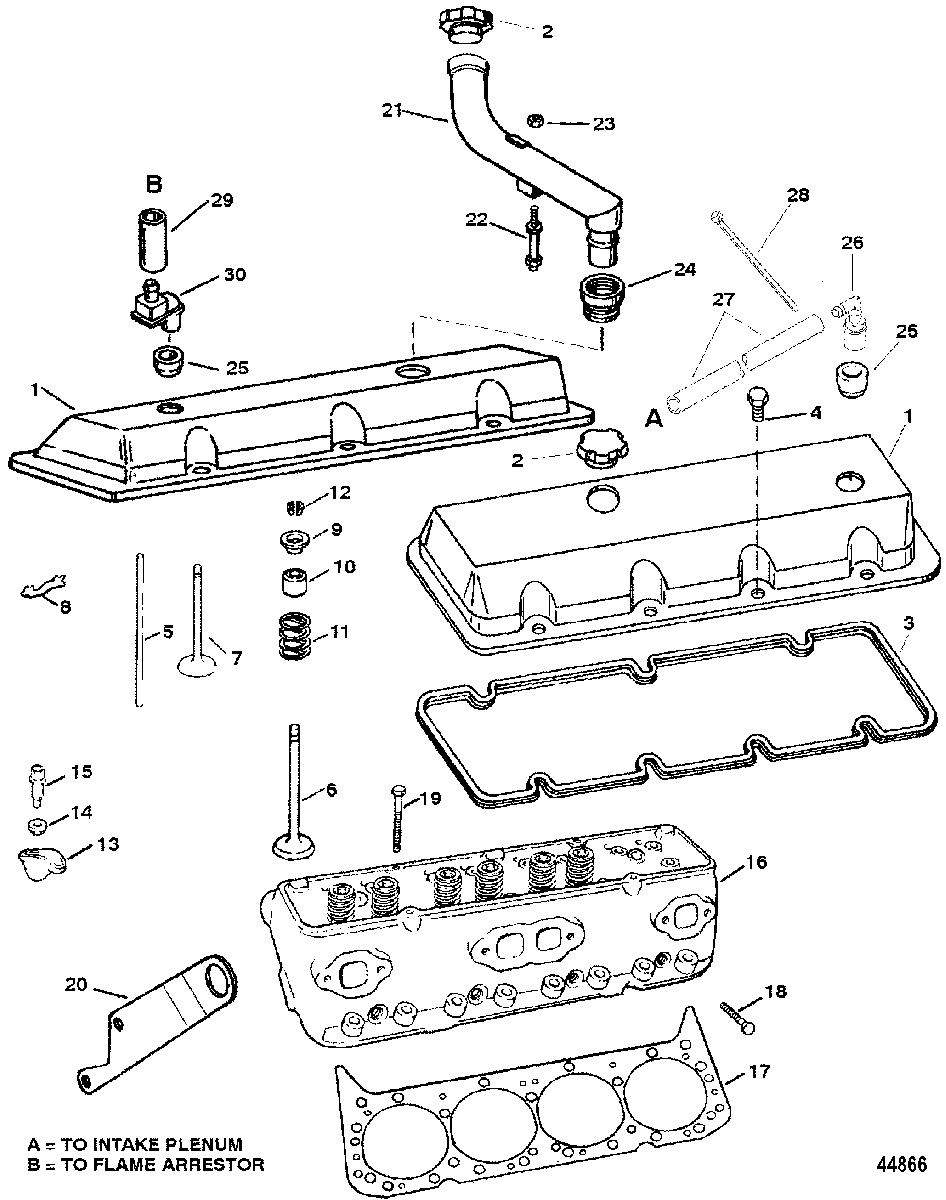

CYLINDER HEAD AND ROCKER COVER(8.2L) для Mercruiser - 7.4L MIE MPI (LH) GEN. VI GM 454 V-8 1996-1997 0F820104 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    850462 COVER
    COVER
  • 2
    36-811569 CAP, Oil Tank
    CAP, Oil Tank
  • 3
    27-8M0092920 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 4
    10-811589 BOLT, (1/4-20 x 0.875)
    BOLT, (1/4-20 x 0.875)
  • 5
    852003 PUSH ROD
    (INTAKE)
    PUSH ROD
    (INTAKE)
  • 5
    852004 PUSH ROD
    (EXHAUST)
    PUSH ROD
    (EXHAUST)
  • 6
    816962 VALVE, Exhaust
    (STANDARD)
    VALVE, Exhaust
    (STANDARD)
  • 6
    816963T VALVE, Exhaust
    (.015 O.S.)
    VALVE, Exhaust
    (.015 O.S.)
  • 7
    801877 VALVE, Intake
    (STANDARD)
    VALVE, Intake
    (STANDARD)
  • 7
    801878 VALVE, Intake
    (.015 O.S.)
    VALVE, Intake
    (.015 O.S.)
  • 8
    881686 GUIDE
    GUIDE
  • 9
    827644A1 CAP ASSEMBLY, Valve
    CAP ASSEMBLY, Valve
  • 10
    26-827645 SEAL, Valve
    SEAL, Valve
  • 11
    24-801879T SPRING, Valve
    SPRING, Valve
  • 12
    28-54530 KEY
    KEY
  • 13
    811591T ARM, Rocker
    ARM, Rocker
  • 14
    850472 BALL, Rocker Arm
    BALL, Rocker Arm
  • 15
    10-811593 BOLT, Rocker Arm
    BOLT, Rocker Arm
  • 16
    938-8M0115141 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 17
    27-879150139 GASKET, Cylinder Head
    GASKET, Cylinder Head
  • 18
    8M0102366 BOLT, (2.00 Inch)
    BOLT, (2.00 Inch)
  • 19
    8M0102366 BOLT, (4.125 Inch)
    BOLT, (4.125 Inch)
  • 20
    807081T BRACKET (FRONT)
    BRACKET (FRONT)
  • 21
    36-807131T TUBE
    TUBE
  • 22
    16-805706 STUD
    STUD
  • 23
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 24
    26-805622 GROMMET
    GROMMET
  • 25
    25-811553 GROMMET
    GROMMET
  • 26
    21-806603 VALVE, PVC
    VALVE, PVC
  • 27
    32-8M0062321 HOSE, PVC (22.50 Inch Bulk)
    HOSE, PVC (22.50 Inch Bulk)
  • 28
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 29
    32-8M0062669 TUBING, (24.00 Inches Bulk)
    (USE WITH METAL FLAME ARRESTOR)
    TUBING, (24.00 Inches Bulk)
    (USE WITH METAL FLAME ARRESTOR)
  • 29
    32-8M0086022 HOSE, Breather
    (USE WITH PLASTIC FLAME ARRESTOR)
    HOSE, Breather
    (USE WITH PLASTIC FLAME ARRESTOR)
  • 30
    807925A2 BAFFLE
    BAFFLE
  • -
    27-805396A92 GASKET SET, Overhaul
    (8.2L)
    GASKET SET, Overhaul
    (8.2L)
