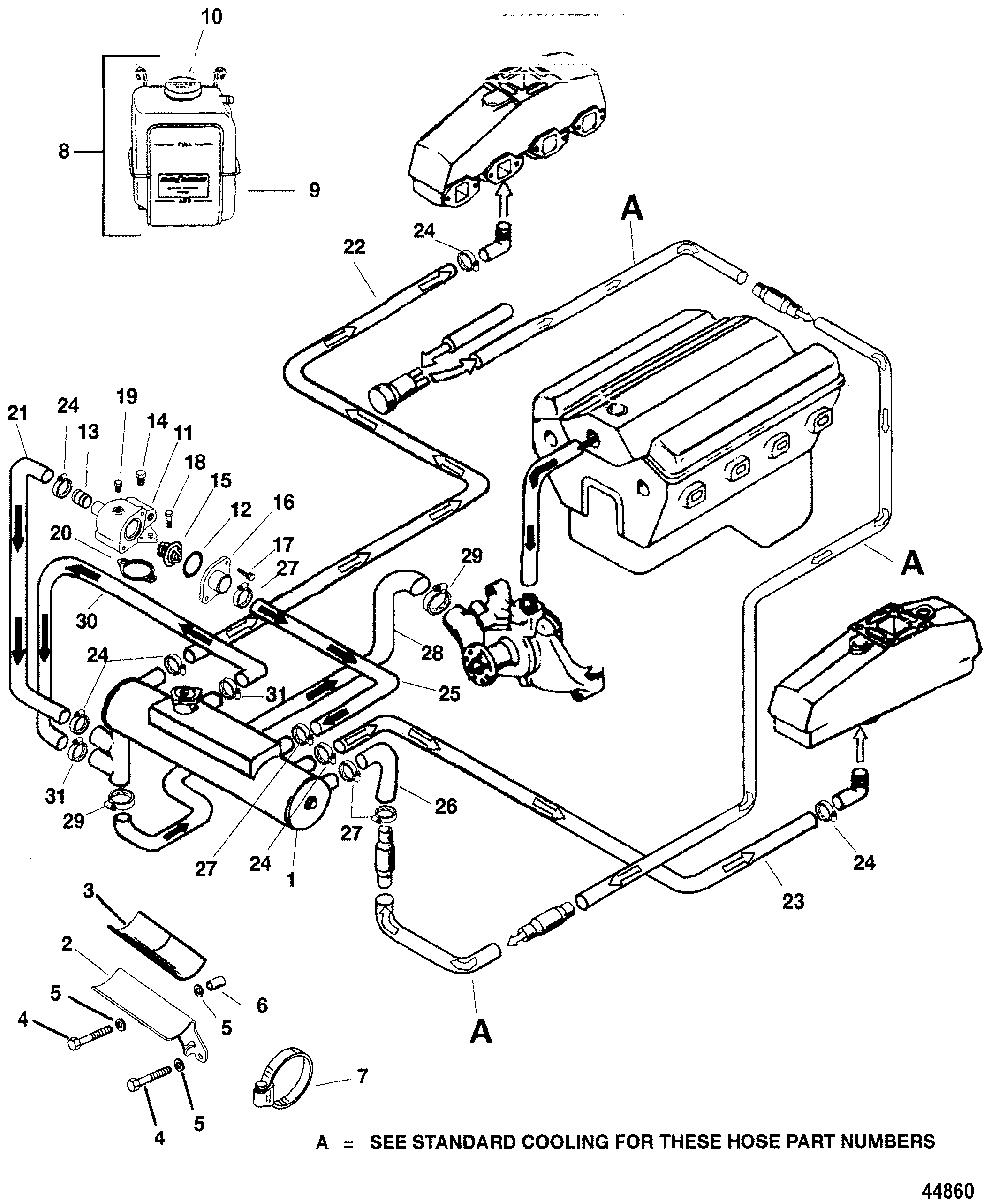

CLOSED COOLING SYSTEM для Mercruiser - 7.4L MIE MPI (LH) GEN. VI GM 454 V-8 1996-1997 0F820104 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    807400A1 HEAT EXCHANGER
    HEAT EXCHANGER
  • NS
    8M0036623 COVER, Heat Exchanger End
    COVER, Heat Exchanger End
  • NS
    27-8M0036987 GASKET, End Cover
    GASKET, End Cover
  • NS
    10-814877 BOLT
    BOLT
  • NS
    25-8M0039163 O-RING, Special
    O-RING, Special
  • NS
    36-8148791 CAP
    CAP
  • 2
    860092A1 BRACKET ASSEMBLY, Heat Exchanger
    BRACKET ASSEMBLY, Heat Exchanger
  • 3
    18431 PAD
    PAD
  • 4
    10-91903 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 4
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 5
    12-31263 WASHER
    WASHER
  • 6
    23-74756 SPACER
    SPACER
  • 7
    54-815504388 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 8
    71587A10 RECOVERY KIT, Coolant
    (See Note)
    RECOVERY KIT, Coolant
    (See Note)
  • -
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 9
    71587A11 BOTTLE, Plastic
    BOTTLE, Plastic
  • 10
    72058 CAP
    CAP
  • 11
    861188A1 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 12
    25-8071341 SEAL
    SEAL
  • 13
    23-52020 SLEEVE, Hose
    SLEEVE, Hose
  • 14
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 15
    991551 THERMOSTAT
    THERMOSTAT
  • 16
    807075A1 COVER
    COVER
  • 17
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 18
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 19
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 20
    27-530451 GASKET
    GASKET
  • 21
    32-807271 HOSE, Thermostat by-pass
    HOSE, Thermostat by-pass
  • 22
    32-861306 HOSE, Heat Exchanger To Exhaust Manifold
    (STARBOARD)
    HOSE, Heat Exchanger To Exhaust Manifold
    (STARBOARD)
  • 23
    32-807141 HOSE, Heat Exhanger to Exhaust Manifold
    (PORT)
    HOSE, Heat Exhanger to Exhaust Manifold
    (PORT)
  • 24
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 25
    32-807137 HOSE, Thermostat Housing To Heat Exchanger
    HOSE, Thermostat Housing To Heat Exchanger
  • 26
    32-807406 HOSE, Oil Cooler to Heat Exchanger
    HOSE, Oil Cooler to Heat Exchanger
  • 27
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 28
    32-805138 HOSE, Water Pump to Heat Exchanger
    HOSE, Water Pump to Heat Exchanger
  • 29
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 30
    32-99520 HOSE, Heat Exchanger to Heat Exchanger
    HOSE, Heat Exchanger to Heat Exchanger
  • 31
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • -
    27-805396A95 GASKET SET
    (7.4L)
    GASKET SET
    (7.4L)
  • -
    27-805396A92 GASKET SET, Overhaul
    (8.2L)
    GASKET SET, Overhaul
    (8.2L)
