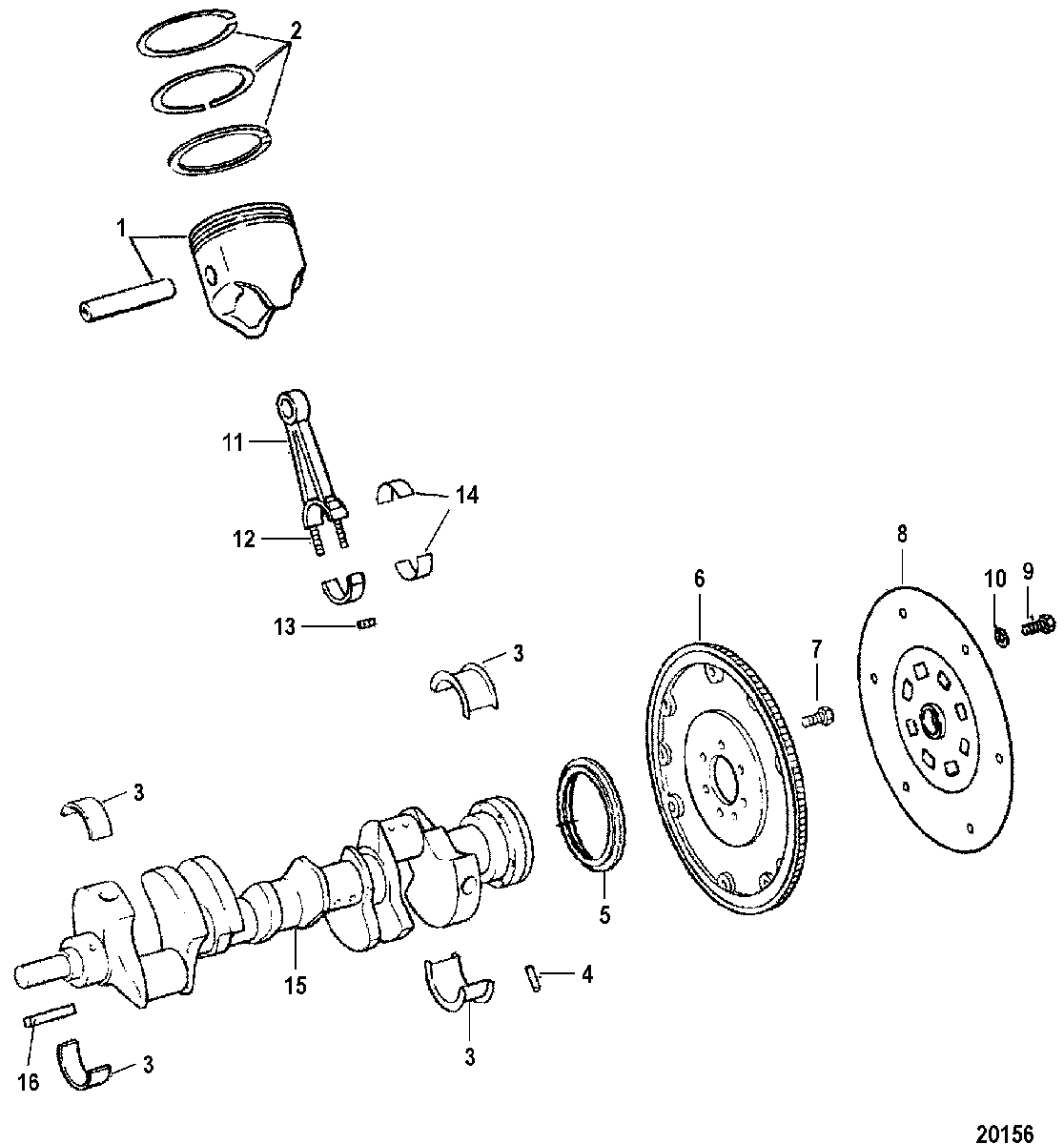

CRANKSHAFT, PISTONS AND CONN. RODS (8.2L) для Mercruiser - 7.4L MIE MPI (LH) GEN. VI GM 454 V-8 1996-1997 0F820104 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    737-827664 PISTON ASSEMBLY, Standard
    PISTON ASSEMBLY, Standard
  • 1
    737-827665A1 PISTON KIT
    (.030 O.S.)
    PISTON KIT
    (.030 O.S.)
  • 2
    39-827660T RING SET, Piston - Standard
    RING SET, Piston - Standard
  • 2
    39-850447 RING, Piston
    (.030 O.S.)
    RING, Piston
    (.030 O.S.)
  • 3
    23-818473001 BEARING SET, Main - Standard
    BEARING SET, Main - Standard
  • 3
    23-818474 BEARING SET, Main - .001 Undersize
    BEARING SET, Main - .001 Undersize
  • 3
    23-818475 BEARING SET, Main - .002 Undersize
    BEARING SET, Main - .002 Undersize
  • 3
    23-818476001 BEARING SET, Main - .010 Undersize
    BEARING SET, Main - .010 Undersize
  • 3
    23-818477 BEARING SET, Main - .020 Undersize
    BEARING SET, Main - .020 Undersize
  • 4
    17-43504 PIN, Dowel (1/4 Diameter) (1/4 IN. DIA.)
    PIN, Dowel (1/4 Diameter) (1/4 IN. DIA.)
  • 5
    26-811554 SEAL
    SEAL
  • 6
    230-8115631 FLYWHEEL
    FLYWHEEL
  • 7
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 8
    860125T DRIVEPLATE ASSEMBLY
    DRIVEPLATE ASSEMBLY
  • 9
    10-35091 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 10
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    614-8M0084554 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 12
    10-19234 SCREW, (.437-20)
    SCREW, (.437-20)
  • 13
    11-58056 NUT
    NUT
  • 14
    23-85726001 BEARING SET, Connecting Rod - Standard
    BEARING SET, Connecting Rod - Standard
  • 14
    23-85727 BEARING SET, Connecting Rod - (.001 Undersize)
    BEARING SET, Connecting Rod - (.001 Undersize)
  • 14
    23-85728 BEARING SET, Connecting Rod - (.002 Undersize)
    BEARING SET, Connecting Rod - (.002 Undersize)
  • 14
    23-85691 BEARING SET, Connecting Rod - (.010 Undersize)
    BEARING SET, Connecting Rod - (.010 Undersize)
  • 14
    23-85729 BEARING SET, Connecting Rod - (.020 Undersize)
    BEARING SET, Connecting Rod - (.020 Undersize)
  • 15
    429-843083T CRANKSHAFT
    CRANKSHAFT
  • 16
    28-845607 KEY
    KEY
  • -
    27-805396A92 GASKET SET, Overhaul
    (8.2L)
    GASKET SET, Overhaul
    (8.2L)
