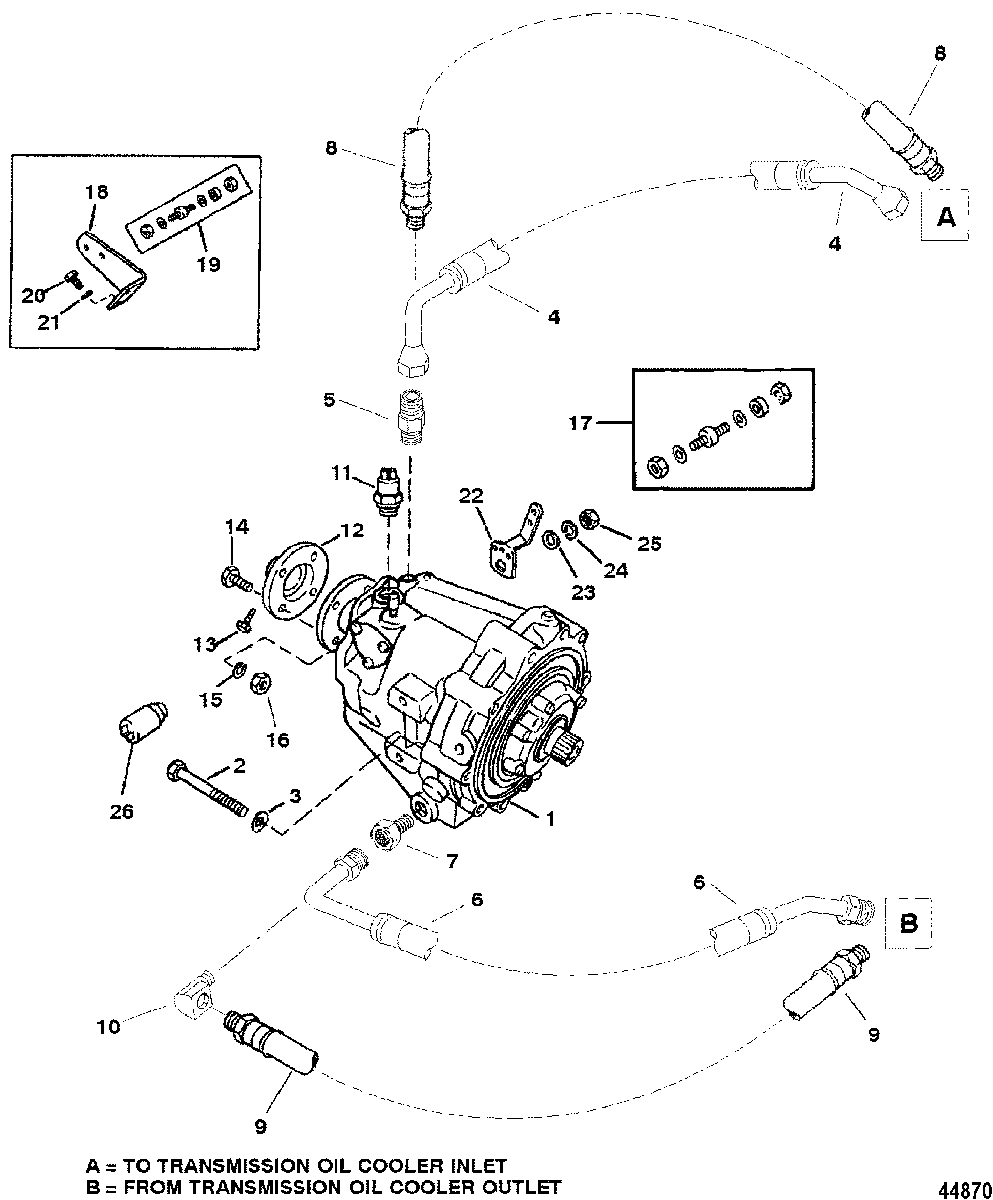

TRANSMISSION AND RELATED PARTS(BORG WARNER 72) для Mercruiser - 7.4L MIE MPI (LH) GEN. VI GM 454 V-8 1996-1997 0F820104 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    47810A19 TRANSMISSION
    (1.1:1 RATIO)
    TRANSMISSION
    (1.1:1 RATIO)
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    32-807414 HOSE (TO OIL COOLER)
    USE WITH SIDE MOUNTED OIL COOLER
    HOSE (TO OIL COOLER)
    USE WITH SIDE MOUNTED OIL COOLER
  • 5
    22-807272 FITTING, (.50) Inch Flare To (.375) Inch NPT
    USE WITH SIDE MOUNTED OIL COOLER
    FITTING, (.50) Inch Flare To (.375) Inch NPT
    USE WITH SIDE MOUNTED OIL COOLER
  • 6
    32-807417 HOSE (FROM OIL COOLER)
    USE WITH SIDE MOUNTED OIL COOLER
    HOSE (FROM OIL COOLER)
    USE WITH SIDE MOUNTED OIL COOLER
  • 7
    22-93190 FITTING, (.375 NPTF x .50 Inverted Flare)
    USE WITH SIDE MOUNTED OIL COOLER
    FITTING, (.375 NPTF x .50 Inverted Flare)
    USE WITH SIDE MOUNTED OIL COOLER
  • 8
    32-8054781 HOSE, (19.50) (TO OIL COOLER)
    USE WITH REAR MOUNTED OIL COOLER
    HOSE, (19.50) (TO OIL COOLER)
    USE WITH REAR MOUNTED OIL COOLER
  • 9
    32-475166 HOSE ASSEMBLY, (30.00 Inches) (FROM OIL COOLER)
    USE WITH REAR MOUNTED OIL COOLER
    HOSE ASSEMBLY, (30.00 Inches) (FROM OIL COOLER)
    USE WITH REAR MOUNTED OIL COOLER
  • 10
    22-47629 ELBOW, 90 Degree
    USE WITH REAR MOUNTED OIL COOLER
    ELBOW, 90 Degree
    USE WITH REAR MOUNTED OIL COOLER
  • 11
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 12
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 12
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    FLANGE ASSEMBLY, (5.00 x 1.125)
  • 12
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 12
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 12
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 12
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 12
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
    FLANGE ASSEMBLY, (5.00 x 2.00)
  • 13
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 13
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 14
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 15
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 16
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 17
    16-97477A3 STUD KIT
    STUD KIT
  • 18
    18351A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 19
    16-97477A3 STUD KIT
    STUD KIT
  • 20
    10-54615 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 21
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 22
    43325 LEVER
    LEVER
  • 23
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 24
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 25
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 26
    47613 SWITCH
    SWITCH
