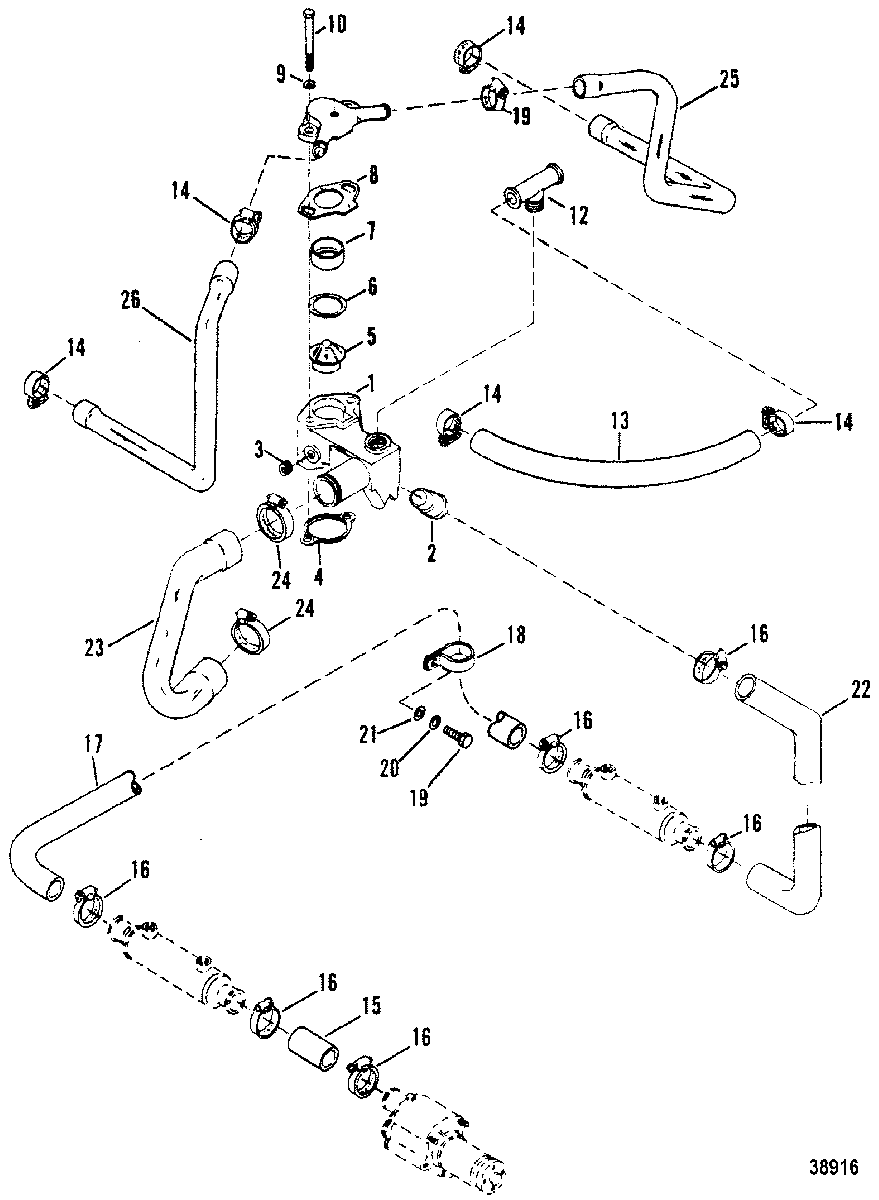

THERMOSTAT HOUSING(STANDARD COOLING) OLD DESIGN для Mercruiser - 340 MIE W/B/W GM 454 V-8 1981-1987 5889914 THRU 0B788365

  • №
    Артикул
    Название
  • 1
    90736A18 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    23-47511 SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 3
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 4
    27-530451 GASKET, THERMOSTAT HOUSING
    GASKET, THERMOSTAT HOUSING
  • 5
    8M0089715 THERMOSTAT, (140 Degrees) (143 )
    THERMOSTAT, (140 Degrees) (143 )
  • 6
    27-47510 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 7
    23-47508T SLEEVE, THERMOSTAT
    SLEEVE, THERMOSTAT
  • 8
    27-41812 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 9
    8M0061068 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 10
    10-60410 SCREW, (.375-16 x 4.250), THERMOSTAT HOUSING TO INTAKE MANIFOLD
    SCREW, (.375-16 x 4.250), THERMOSTAT HOUSING TO INTAKE MANIFOLD
  • 11
    13-35048 LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
    LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
  • 12
    22-98477A2 VALVE ASSEMBLY, THERMOSTAT HOUSING
    VALVE ASSEMBLY, THERMOSTAT HOUSING
  • 13
    32-8M0062614 HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOWS (19")
    HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOWS (19")
  • 13
    32-73795 HOSE, TEE TO EXHAUST ELBOWS (PORT) V-DRIVE
    HOSE, TEE TO EXHAUST ELBOWS (PORT) V-DRIVE
  • 13
    32-73794 HOSE, TEE TO EXHAUST ELBOW (STBD) V-DRIVE
    HOSE, TEE TO EXHAUST ELBOW (STBD) V-DRIVE
  • 14
    54-815504220 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    32-8M0062665 HOSE, (48.00 Inches Bulk), WATER PUMP TO OIL COOLER
    HOSE, (48.00 Inches Bulk), WATER PUMP TO OIL COOLER
  • 16
    54-815504220 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    32-63829 HOSE, OIL COOLER TO OIL COOLER
    HOSE, OIL COOLER TO OIL COOLER
  • 18
    54-47715 CLIP, HOSE
    CLIP, HOSE
  • 19
    10-47277 SCREW, (.312-24 x .750), HOSE CLIP
    SCREW, (.312-24 x .750), HOSE CLIP
  • 20
    13-39107 LOCKWASHER, (.312-24), CLIP SCREW
    LOCKWASHER, (.312-24), CLIP SCREW
  • 21
    12-26825 WASHER, (.328 x .750 x .06), CLIP SCREW
    WASHER, (.328 x .750 x .06), CLIP SCREW
  • 22
    32-896998 HOSE, Molded, OIL COOLER TO THERMOSTAT HOUSING
    HOSE, Molded, OIL COOLER TO THERMOSTAT HOUSING
  • 23
    32-897181 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 24
    54-815504232 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    97385 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
  • 26
    32-897301 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STBD)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STBD)
