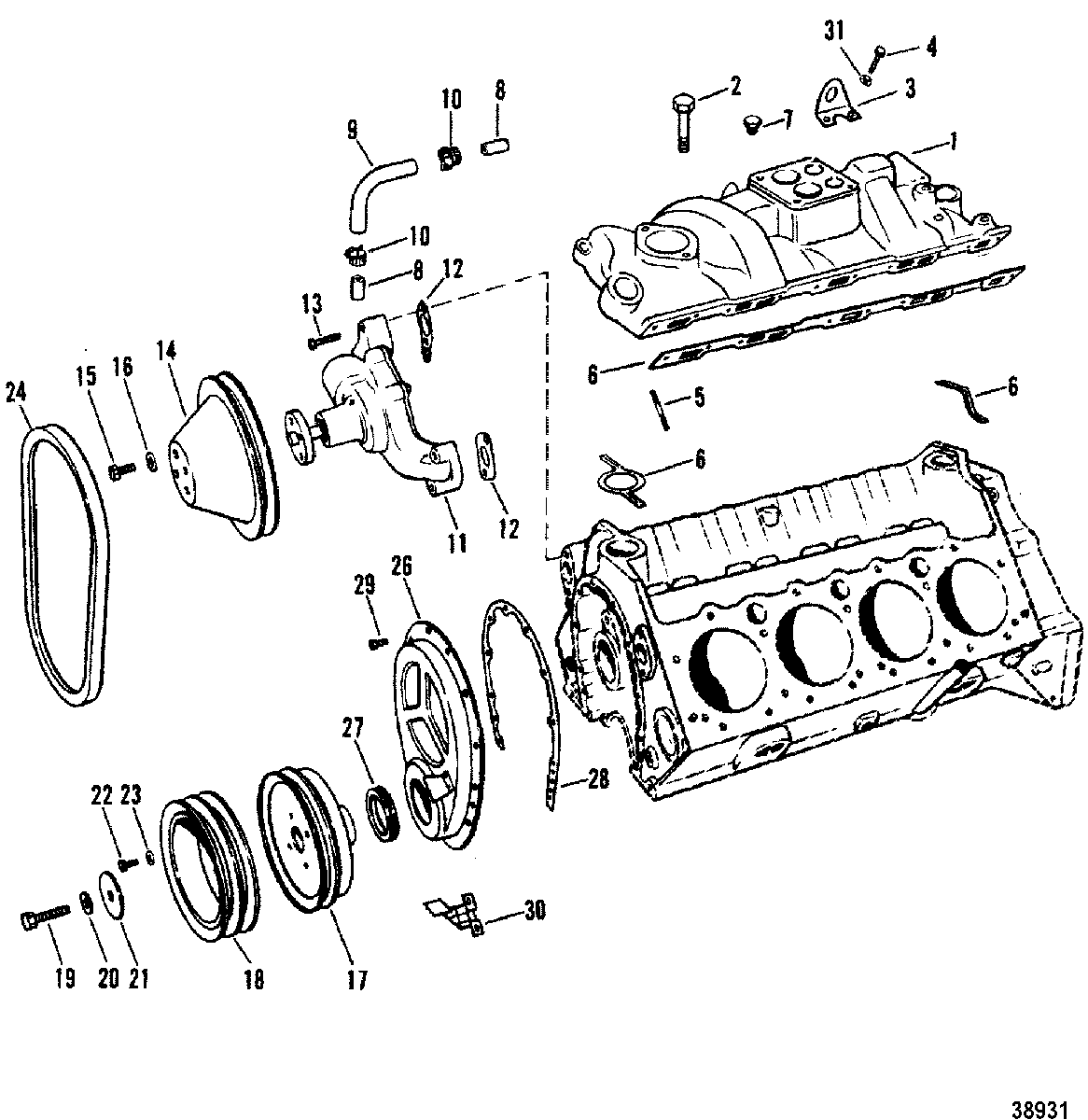

INTAKE MANIFOLD AND FRONT COVER( OLD DESIGN) для Mercruiser - 340 MIE W/B/W GM 454 V-8 1981-1987 5889914 THRU 0B788365

  • №
    Артикул
    Название
  • 1
    811575T MANIFOLD, Intake
    MANIFOLD, Intake
  • 2
    10-37510 BOLT, (1.5 In.), INTAKE MANIFOLD (GM #3736035)
    BOLT, (1.5 In.), INTAKE MANIFOLD (GM #3736035)
  • 3
    54-64628 LIFTING EYE
    LIFTING EYE
  • 4
    10-34354 SCREW, (.375-16 x 1.50), LIFTING EYE
    SCREW, (.375-16 x 1.50), LIFTING EYE
  • 5
    N.S.S. Not Sold Separate, STUD (GM #3959544)
    GUARD TO INTAKE MANIFOLD
    Not Sold Separate, STUD (GM #3959544)
    GUARD TO INTAKE MANIFOLD
  • 6
    27-8M0050224 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 7
    22-75983 PLUG, WATER PUMP/INTAKE MANIFOLD
    PLUG, WATER PUMP/INTAKE MANIFOLD
  • 8
    22-806242 CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD
    CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD
  • 9
    32-99520 HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD
    HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD
  • 10
    54-815504412 CLAMP, BY-PASS HOSE
    CLAMP, BY-PASS HOSE
  • 11
    46-8M0113735 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 12
    27-49110 GASKET, Circulating Water Pump Mount, WATER PUMP MOUNTING
    GASKET, Circulating Water Pump Mount, WATER PUMP MOUNTING
  • 13
    10-32132 SCREW, (.375-16 x 1.750), WATER PUMP TO CYLINDER BLOCK (1-3/4")
    SCREW, (.375-16 x 1.750), WATER PUMP TO CYLINDER BLOCK (1-3/4")
  • 14
    42799 PULLEY, WATER PUMP (2 GROOVE)
    PULLEY, WATER PUMP (2 GROOVE)
  • 15
    10-47277 SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
    SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
  • 16
    13-39107 LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
    LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
  • 17
    816729 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 18
    52181 PULLEY, CRANKSHAFT
    PULLEY, CRANKSHAFT
  • 19
    10-14758 BOLT, PULLEY AND HARMONIC BALANCER
    BOLT, PULLEY AND HARMONIC BALANCER
  • 20
    13-14759 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 21
    N.S.S. Not Sold Separate, WASHER (PULLEY AND BALANCER BOLT) (GM #3864814)
    Not Sold Separate, WASHER (PULLEY AND BALANCER BOLT) (GM #3864814)
  • 22
    10-98556 BOLT, (.375-16 x 1.750), PULLEY
    BOLT, (.375-16 x 1.750), PULLEY
  • 23
    13-35048 LOCKWASHER, (.375), PULLEY BOLT
    LOCKWASHER, (.375), PULLEY BOLT
  • 24
    57-78200Q1 BELT, (47 Inches), ALTERNATOR DRIVE (47")
    BELT, (47 Inches), ALTERNATOR DRIVE (47")
  • 26
    66215 COVER ASSEMBLY, CRANKCASE FRONT
    COVER ASSEMBLY, CRANKCASE FRONT
  • 27
    26-8219471 SEAL, Oil, CRANKCASE FRONT COVER
    SEAL, Oil, CRANKCASE FRONT COVER
  • 28
    27-54529 GASKET, Timing Cover, CRANKCASE FRONT END COVER
    GASKET, Timing Cover, CRANKCASE FRONT END COVER
  • 29
    10-8M0040582 SCREW, (.250-20 x .563), CRANKCASE FRONT END COVER TO BLOCK (7/16")
    SCREW, (.250-20 x .563), CRANKCASE FRONT END COVER TO BLOCK (7/16")
  • 30
    59966 POINTER, TIMING (L.H. ROTATION)
    POINTER, TIMING (L.H. ROTATION)
  • 30
    N.S.S. Not Sold Separate, POINTER, TIMING (R.H. ROTATION) (GM #3993813)
    Not Sold Separate, POINTER, TIMING (R.H. ROTATION) (GM #3993813)
  • 31
    13-35048 LOCKWASHER, (.375), LIFTING EYE SCREW
    LOCKWASHER, (.375), LIFTING EYE SCREW
