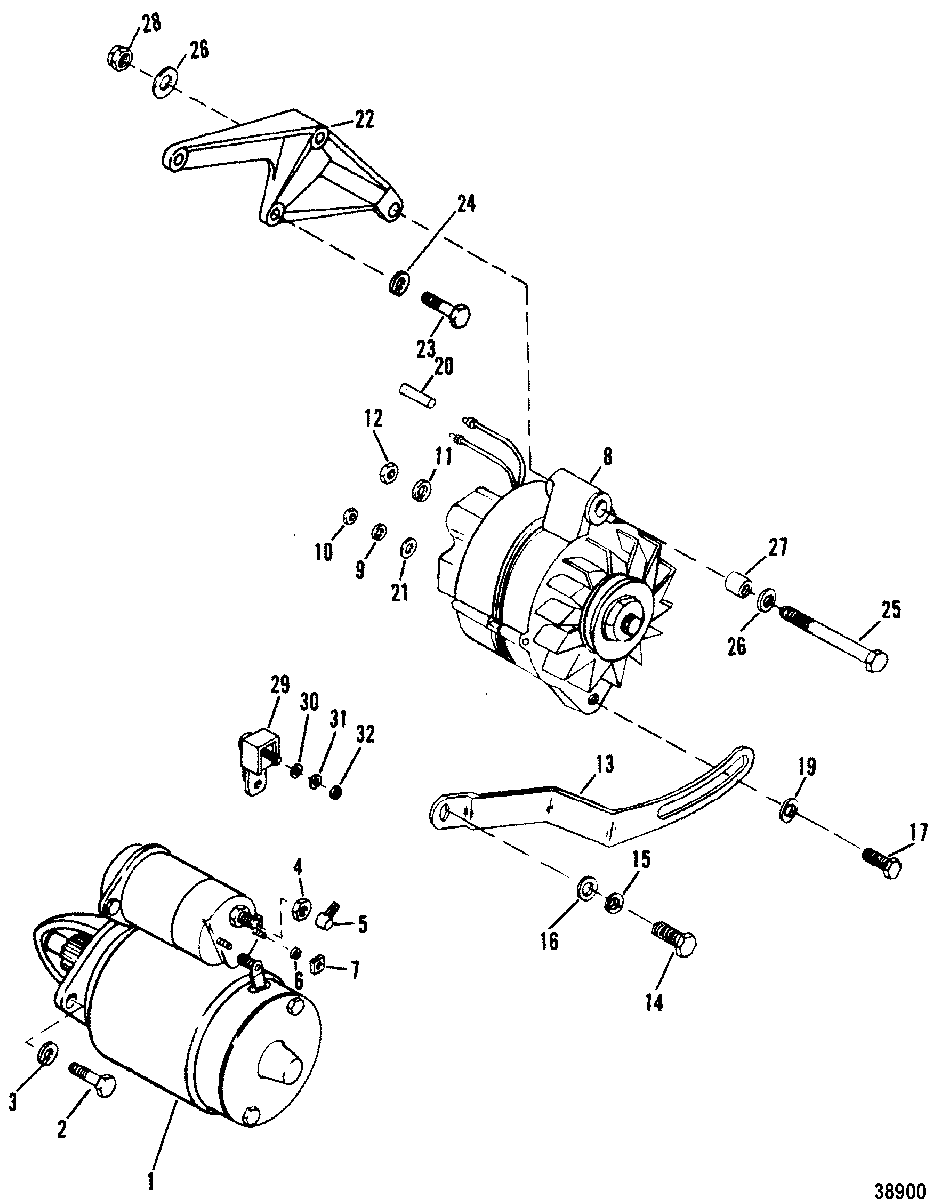

STARTER AND ALTERNATOR для Mercruiser - 340 MIE W/B/W GM 454 V-8 1981-1987 5889914 THRU 0B788365

  • №
    Артикул
    Название
  • 1
    50-808011A05 STARTER MOTOR ASSEMBLY, L.H. ROTATION (DELCO REMY #1109485)
    STARTER MOTOR ASSEMBLY, L.H. ROTATION (DELCO REMY #1109485)
  • 1
    50-97499R3 STARTER MOTOR ASSEMBLY, R.H. ROTATION (DELCO REMY #1109484)
    STARTER MOTOR ASSEMBLY, R.H. ROTATION (DELCO REMY #1109484)
  • 2
    10-47462 SCREW, (.437-14 x 1.250), STARTER MOTOR
    SCREW, (.437-14 x 1.250), STARTER MOTOR
  • 3
    13-32993 LOCKWASHER, (.437), STARTER MOTOR SCREW
    LOCKWASHER, (.437), STARTER MOTOR SCREW
  • 4
    11-86226 NUT, (.375-16), STARTER TERMINAL
    NUT, (.375-16), STARTER TERMINAL
  • 4
    11-15874 NUT, (M10), STARTER TERMINAL
    NUT, (M10), STARTER TERMINAL
  • 5
    85-79695T BOOT, Insulator - Black, STARTER TERMINAL
    BOOT, Insulator - Black, STARTER TERMINAL
  • 6
    13-26995 LOCKWASHER, (#8) Stainless Steel, STARTER TERMINAL
    LOCKWASHER, (#8) Stainless Steel, STARTER TERMINAL
  • 7
    11-26419 NUT, (#8-32) Brass, STARTER TERMINAL
    NUT, (#8-32) Brass, STARTER TERMINAL
  • 7
    11-400211 NUT, (M5) Stainless Steel, STARTER TERMINAL
    NUT, (M5) Stainless Steel, STARTER TERMINAL
  • 8
    817119A4 ALTERNATOR ASSEMBLY, (55 Ampere)
    ALTERNATOR ASSEMBLY, (55 Ampere)
  • 9
    13-26996 LOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINAL
    LOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINAL
  • 10
    11-79989 NUT, (#10-24) Stainless Steel, ALTERNATOR TERMINAL
    NUT, (#10-24) Stainless Steel, ALTERNATOR TERMINAL
  • 11
    13-21272 LOCKWASHER, (.250), ALTERNATOR TERMINAL
    LOCKWASHER, (.250), ALTERNATOR TERMINAL
  • 12
    11-64015 NUT, (.250-20), ALTERNATOR TERMINAL
    NUT, (.250-20), ALTERNATOR TERMINAL
  • 13
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 14
    10-47462 SCREW, (.437-14 x 1.250), ALTERNATOR BRACE
    SCREW, (.437-14 x 1.250), ALTERNATOR BRACE
  • 15
    13-32993 LOCKWASHER, (.437), ALTERNATOR BRACE SCREW
    LOCKWASHER, (.437), ALTERNATOR BRACE SCREW
  • 16
    12-31263 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 17
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE
    SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE
  • 19
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 20
    5790811 SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS
    SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS
  • 21
    12-96457 WASHER, Phenolic (.27 x .81 x .062), ALTERNATOR TERMINAL
    WASHER, Phenolic (.27 x .81 x .062), ALTERNATOR TERMINAL
  • 22
    47487T BRACKET ASSEMBLY, ALTERNATOR
    BRACKET ASSEMBLY, ALTERNATOR
  • 23
    10-34353 SCREW, (.375-16 x 1.00), ALTERNATOR BRACKET
    SCREW, (.375-16 x 1.00), ALTERNATOR BRACKET
  • 23
    10-35787 SCREW, (.375-16 x 2.250), ALTERNATOR BRACKET
    SCREW, (.375-16 x 2.250), ALTERNATOR BRACKET
  • 24
    13-35048 LOCKWASHER, (.375), ALTERNATOR BRACKET SCREW
    LOCKWASHER, (.375), ALTERNATOR BRACKET SCREW
  • 25
    10-48308 SCREW, (.375-24 x 3.750), ALTERNATOR
    SCREW, (.375-24 x 3.750), ALTERNATOR
  • 26
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 27
    23-33186 BUSHING, ALTERNATOR BRACKET SCREW
    BUSHING, ALTERNATOR BRACKET SCREW
  • 28
    11-23161 NUT, (.375-24), ALTERNATOR BRACKET SCREW
    NUT, (.375-24), ALTERNATOR BRACKET SCREW
  • 29
    88-79023A91 FUSE ASSEMBLY, 90 Ampere
    NOT USED ON LATER ENGINES
    FUSE ASSEMBLY, 90 Ampere
    NOT USED ON LATER ENGINES
  • 30
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    NOT USED ON LATER ENGINES
    WASHER, Phenolic (.27 x .81 x .062)
    NOT USED ON LATER ENGINES
  • 31
    13-26992 LOCKWASHER, (.250) Stainless Steel, FUSE TERMINAL
    NOT USED ON LATER ENGINES
    LOCKWASHER, (.250) Stainless Steel, FUSE TERMINAL
    NOT USED ON LATER ENGINES
  • 32
    11-21825 NUT, (.250-28), FUSE TERMINAL
    NOT USED ON LATER ENGINES
    NUT, (.250-28), FUSE TERMINAL
    NOT USED ON LATER ENGINES
