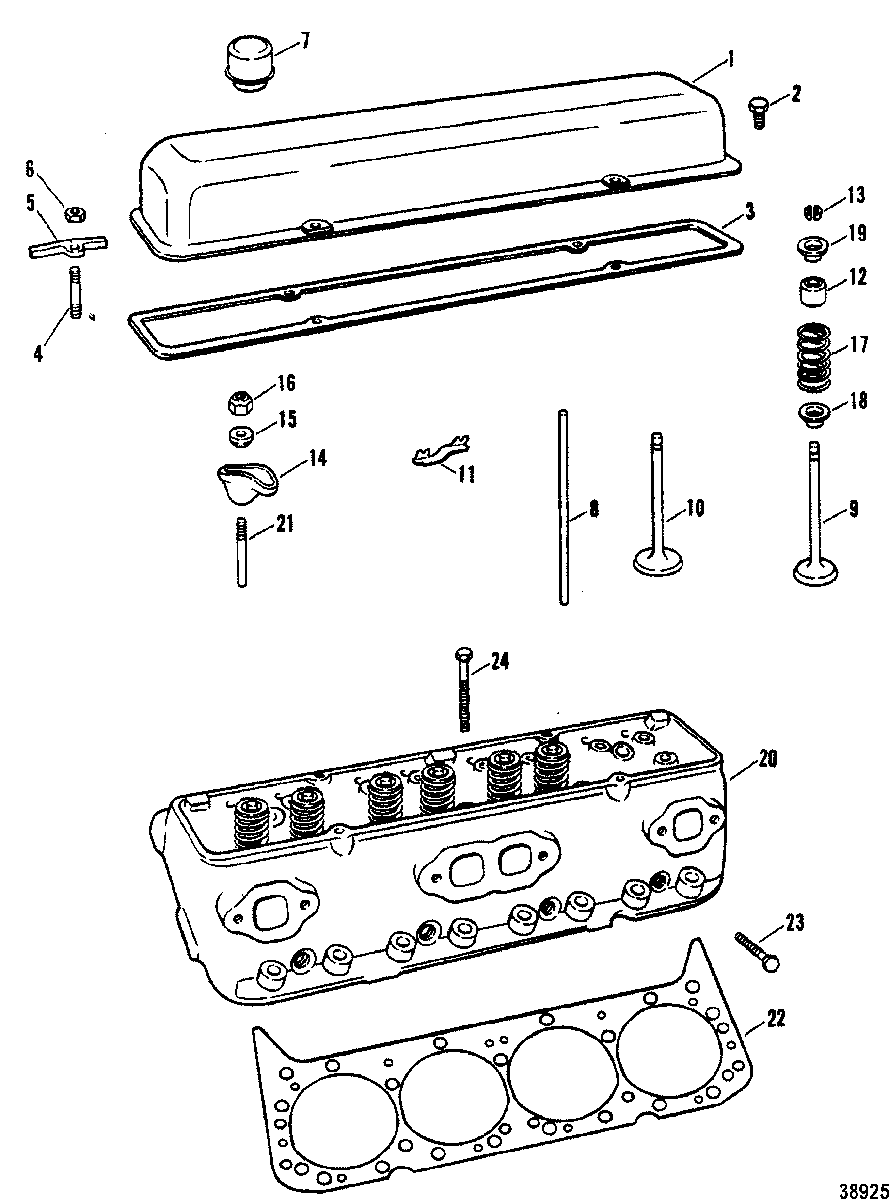

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 340 MIE W/B/W GM 454 V-8 1981-1987 5889914 THRU 0B788365

  • №
    Артикул
    Название
  • 1
    17671 ROCKER COVER
    ATTACHES WITH SCREWS
    ROCKER COVER
    ATTACHES WITH SCREWS
  • 1
    17671 COVER
    ATTACHES WITH STUDS
    COVER
    ATTACHES WITH STUDS
  • 2
    10-8M0040582 SCREW, (.250-20 x .563), ATTACHES WITH SCREWS
    SCREW, (.250-20 x .563), ATTACHES WITH SCREWS
  • 3
    27-49121 GASKET
    GASKET
  • 4
    16-11995 STUD
    ATTACHES WITH STUDS
    STUD
    ATTACHES WITH STUDS
  • 5
    14763 REINFORCEMENT
    REINFORCEMENT
  • 5
    14764 REINFORCEMENT
    REINFORCEMENT
  • 6
    11-11996 NUT
    ATTACHES WITH STUDS
    NUT
    ATTACHES WITH STUDS
  • 7
    36-807152 CAP, Filler, OIL
    CAP, Filler, OIL
  • 8
    75589 ROD, VALVE PUSH (INLET)
    ROD, VALVE PUSH (INLET)
  • 8
    75590 ROD, VALVE PUSH (EXHAUST)
    ROD, VALVE PUSH (EXHAUST)
  • 9
    67861 VALVE, EXHAUST (STANDARD)
    VALVE, EXHAUST (STANDARD)
  • 9
    N.S.S. Not Sold Separate, VALVE, EXHAUST (.015 O.S.) - GM #6263735
    Not Sold Separate, VALVE, EXHAUST (.015 O.S.) - GM #6263735
  • 10
    49134 VALVE, Intake (STANDARD)
    VALVE, Intake (STANDARD)
  • 10
    49135 VALVE, INLET (.015 O.S.)
    VALVE, INLET (.015 O.S.)
  • 11
    75979 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 12
    26-75988 SEAL, VALVE
    SEAL, VALVE
  • 13
    28-54530 KEY, VALVE STEM
    KEY, VALVE STEM
  • 14
    19241 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 15
    58041 BALL, ROCKER VALVE ARM
    BALL, ROCKER VALVE ARM
  • 16
    11-49119 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 17
    24-75584 SPRING (INLET AND EXHAUST)
    VALVE SPRING WITHOUT OUTSIDE SHIELD
    SPRING (INLET AND EXHAUST)
    VALVE SPRING WITHOUT OUTSIDE SHIELD
  • 18
    14755 ROTATOR, EXHAUST VALVE
    VALVE SPRING WITHOUT OUTSIDE SHIELD
    ROTATOR, EXHAUST VALVE
    VALVE SPRING WITHOUT OUTSIDE SHIELD
  • 19
    49129 CAP, VALVE
    VALVE SPRING WITHOUT OUTSIDE SHIELD
    CAP, VALVE
    VALVE SPRING WITHOUT OUTSIDE SHIELD
  • 20
    938-883491R1 CYLINDER ASSEMBLY
    VALVE SPRING WITHOUT OUTSIDE SHIELD
    CYLINDER ASSEMBLY
    VALVE SPRING WITHOUT OUTSIDE SHIELD
  • 21
    16-49133 STUD, ROCKER VALVE ARM
    VALVE SPRING WITHOUT OUTSIDE SHIELD
    STUD, ROCKER VALVE ARM
    VALVE SPRING WITHOUT OUTSIDE SHIELD
  • 17
    24-14754T SPRING (INLET AND EXHAUST)
    VALVE SPRING WITH OUTSIDE SHIELD
    SPRING (INLET AND EXHAUST)
    VALVE SPRING WITH OUTSIDE SHIELD
  • 18
    14755 ROTATOR, EXHAUST VALVE
    VALVE SPRING WITH OUTSIDE SHIELD
    ROTATOR, EXHAUST VALVE
    VALVE SPRING WITH OUTSIDE SHIELD
  • 19
    14753 CAP
    VALVE SPRING WITH OUTSIDE SHIELD
    CAP
    VALVE SPRING WITH OUTSIDE SHIELD
  • 20
    938-883491R1 CYLINDER HEAD ASSEMBLY
    VALVE SPRING WITH OUTSIDE SHIELD
    CYLINDER HEAD ASSEMBLY
    VALVE SPRING WITH OUTSIDE SHIELD
  • 21
    16-49133 STUD, CYLINDER HEAD
    VALVE SPRING WITH OUTSIDE SHIELD
    STUD, CYLINDER HEAD
    VALVE SPRING WITH OUTSIDE SHIELD
  • 22
    27-8M0049045 GASKET, Cylinder Head
    GASKET, Cylinder Head
  • 23
    8M0102366 BOLT, (2.00 Inch), CYLINDER HEAD TO CYLINDER BLOCK (2")
    BOLT, (2.00 Inch), CYLINDER HEAD TO CYLINDER BLOCK (2")
  • 24
    8M0102366 BOLT, (4.125 Inch), CYLINDER HEAD TO CYLINDER BLOCK (4-1/8")
    BOLT, (4.125 Inch), CYLINDER HEAD TO CYLINDER BLOCK (4-1/8")
