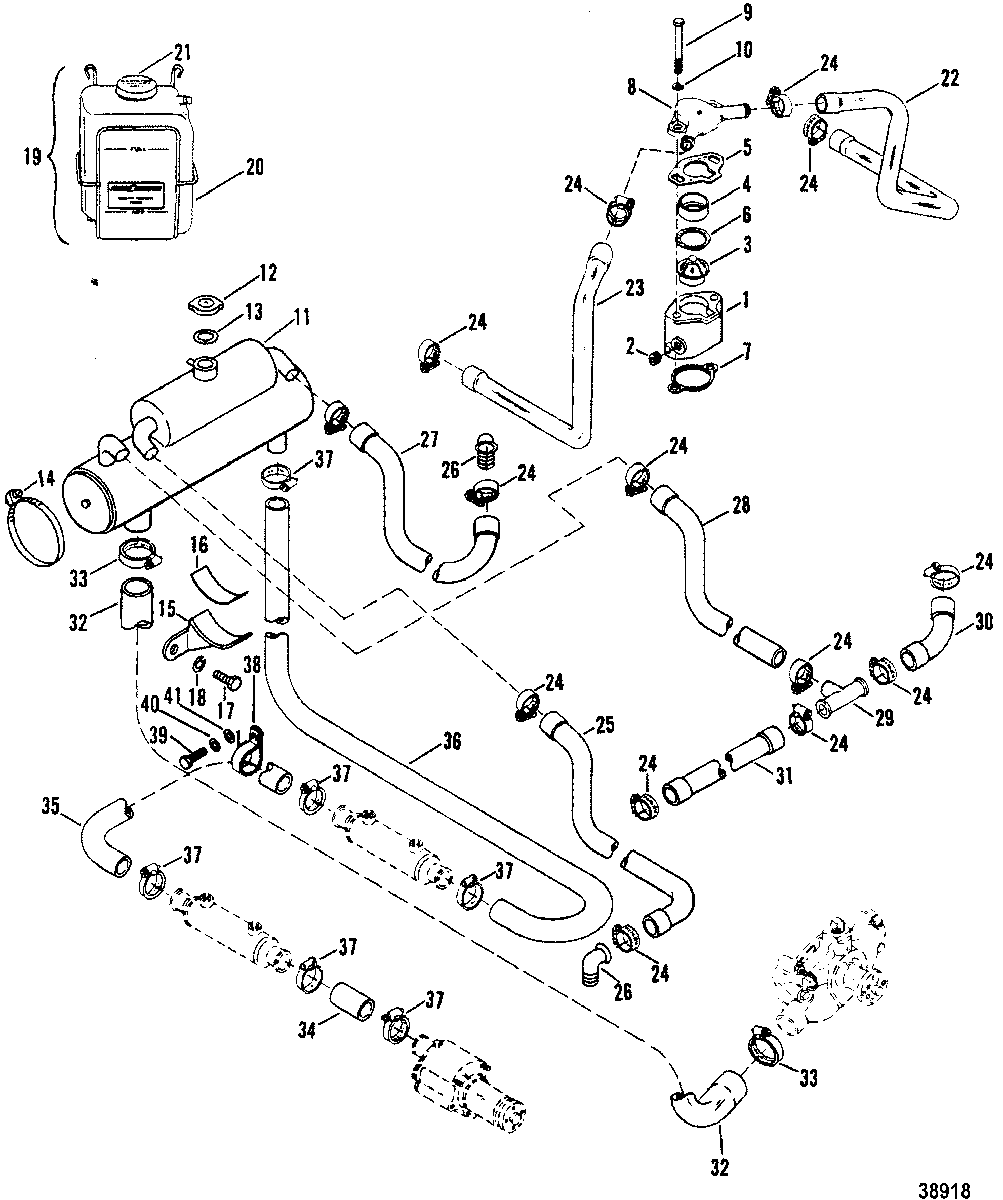

CLOSED COOLING SYSTEM для Mercruiser - 340 MIE W/B/W GM 454 V-8 1981-1987 5889914 THRU 0B788365
-
№АртикулНазвание
-
155131A5 HOUSING, ThermostatHOUSING, Thermostat
-
222-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
38M0089715 THERMOSTAT, (140 Degrees) (143 )THERMOSTAT, (140 Degrees) (143 )
-
423-47508T SLEEVESLEEVE
-
527-488181 GASKET, UPPERGASKET, UPPER
-
627-47510 GASKET, MIDDLEGASKET, MIDDLE
-
727-530451 GASKET, LOWERGASKET, LOWER
-
88M0061068 COVERCOVER
-
910-48115 SCREW, (.375-16 x 3.50), THERMOSTAT HOUSING TO INTAKE MANIFOLD (3-1/2")SCREW, (.375-16 x 3.50), THERMOSTAT HOUSING TO INTAKE MANIFOLD (3-1/2")
-
1013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1179607A3 RESERVOIR ASSEMBLY (4") SEE PARTS BELOWRESERVOIR ASSEMBLY (4") SEE PARTS BELOW
-
1144446A2 RESERVOIR ASSEMBLY (5") SEE PARTS BELOWRESERVOIR ASSEMBLY (5") SEE PARTS BELOW
-
1236-55143Q CAP, Pressure, HEAT EXCHANGERCAP, Pressure, HEAT EXCHANGER
-
1327-71614 GASKET, PRESSURE CAPGASKET, PRESSURE CAP
-
1454-815504372 CLAMP, RESERVOIR (USE WITH 4" RESERVOIR)CLAMP, RESERVOIR (USE WITH 4" RESERVOIR)
-
1454-815504388 CLAMP, RESERVOIR (USE WITH 5" RESERVOIR)CLAMP, RESERVOIR (USE WITH 5" RESERVOIR)
-
1579605A1 BRACKET, MOUNTING (PORT)
USE WITH 4" RESERVOIRBRACKET, MOUNTING (PORT)
USE WITH 4" RESERVOIR -
1579606A1 BRACKET, MOUNTING (STARBOARD)
USE WITH 4" RESERVOIRBRACKET, MOUNTING (STARBOARD)
USE WITH 4" RESERVOIR -
1592777A1 BRACKET, MOUNTING (PORT) V-DRIVE
USE WITH 4" RESERVOIRBRACKET, MOUNTING (PORT) V-DRIVE
USE WITH 4" RESERVOIR -
1592778A1 BRACKET, MOUNTING (STARBOARD) V-DRIVE
USE WITH 4" RESERVOIRBRACKET, MOUNTING (STARBOARD) V-DRIVE
USE WITH 4" RESERVOIR -
16772233 PAD, MOUNTING BRACKET
USE WITH 4" RESERVOIRPAD, MOUNTING BRACKET
USE WITH 4" RESERVOIR -
1544441A3 BRACKET, MOUNTING (PORT)
USE WITH 5" RESERVOIRBRACKET, MOUNTING (PORT)
USE WITH 5" RESERVOIR -
1544441A3 BRACKET, MOUNTING (STARBOARD)
USE WITH 5" RESERVOIRBRACKET, MOUNTING (STARBOARD)
USE WITH 5" RESERVOIR -
1544445A3 BRACKET ASSEMBLY, MOUNTING (PORT) V-DRIVE
USE WITH 5" RESERVOIRBRACKET ASSEMBLY, MOUNTING (PORT) V-DRIVE
USE WITH 5" RESERVOIR -
1544445A3 BRACKET, MOUNTING (STARBOARD) V-DRIVE
USE WITH 5" RESERVOIRBRACKET, MOUNTING (STARBOARD) V-DRIVE
USE WITH 5" RESERVOIR -
16772231 PAD, MOUNTING BRACKET
USE WITH 5" RESERVOIRPAD, MOUNTING BRACKET
USE WITH 5" RESERVOIR -
1710-34353 SCREW, (.375-16 x 1.00), MOUNTING BRACKET TO ENGINE (1")SCREW, (.375-16 x 1.00), MOUNTING BRACKET TO ENGINE (1")
-
1813-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREWLOCKWASHER, (.375), MOUNTING BRACKET SCREW
-
1710-47461 SCREW, (.437-14 x 1.00), MOUNTING BRACKET TO ENGINE (1")SCREW, (.437-14 x 1.00), MOUNTING BRACKET TO ENGINE (1")
-
1813-32993 LOCKWASHER, (.437), MOUNTING BRACKET SCREWLOCKWASHER, (.437), MOUNTING BRACKET SCREW
-
1971587A10 COOLANT RECOVERY KITCOOLANT RECOVERY KIT
-
2071587A11 BOTTLE, PLASTICBOTTLE, PLASTIC
-
2172058 CAP, PLASTIC BOTTLECAP, PLASTIC BOTTLE
-
2297385 HOSE, THERMOSTAT COVER TO MANIFOLD (PORT)HOSE, THERMOSTAT COVER TO MANIFOLD (PORT)
-
2332-897301 HOSE, THERMOSTAT COVER TO MANIFOLD (STARBOARD)HOSE, THERMOSTAT COVER TO MANIFOLD (STARBOARD)
-
2454-815504220 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
-
2532-19403 HOSE, RESERVOIR TO MANIFOLD (STARBOARD)HOSE, RESERVOIR TO MANIFOLD (STARBOARD)
-
2532-77332 HOSE, RESERVOIR TO MANIFOLD (STARBOARD) - V-DRIVEHOSE, RESERVOIR TO MANIFOLD (STARBOARD) - V-DRIVE
-
2622-36305T ELBOW, (90 Degrees), EXHAUST MANIFOLD - TOP (90 Degrees)ELBOW, (90 Degrees), EXHAUST MANIFOLD - TOP (90 Degrees)
-
2622-865159 FITTING, (45 Degrees), EXHAUST MANIFOLD - TOP (45 Degrees)FITTING, (45 Degrees), EXHAUST MANIFOLD - TOP (45 Degrees)
-
2732-19404 HOSE, RESERVOIR TO MANIFOLD (PORT)HOSE, RESERVOIR TO MANIFOLD (PORT)
-
2732-77332 HOSE, RESERVOIR TO MANIFOLD (PORT) - V-DRIVEHOSE, RESERVOIR TO MANIFOLD (PORT) - V-DRIVE
-
2832-8M0062665 HOSE, TEE TO RESERVOIRHOSE, TEE TO RESERVOIR
-
2832-8M0062665 HOSE, (48.00 Inches Bulk), RESERVOIR TO RESERVOIR
V-DRIVEHOSE, (48.00 Inches Bulk), RESERVOIR TO RESERVOIR
V-DRIVE -
2922-55133 TEE, FITTINGTEE, FITTING
-
3032-92846 HOSE, TEE TO EXHAUST ELBOW (PORT)HOSE, TEE TO EXHAUST ELBOW (PORT)
-
3032-93634 HOSE, TEE TO EXHAUST ELBOW (PORT) - V-DRIVEHOSE, TEE TO EXHAUST ELBOW (PORT) - V-DRIVE
-
3132-8M0062614 HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOW (STARBOARD)HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOW (STARBOARD)
-
3232-92838 HOSE, RESERVOIR TO WATER PUMPHOSE, RESERVOIR TO WATER PUMP
-
3354-815504232 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
-
3432-8M0062665 HOSE, (48.00 Inches Bulk), WATER PUMP TO OIL COOLER (7")HOSE, (48.00 Inches Bulk), WATER PUMP TO OIL COOLER (7")
-
3532-63829 HOSE, OIL COOLER TO OIL COOLER
(USE W/4" RESERVOIR)HOSE, OIL COOLER TO OIL COOLER
(USE W/4" RESERVOIR) -
3532-44590 HOSE, OIL COOLER TO OIL COOER
(USE W/5" RESERVOIR)HOSE, OIL COOLER TO OIL COOER
(USE W/5" RESERVOIR) -
3632-79671 HOSE, OIL COOLER TO RESERVOIR
(USE W/4" RESERVOIR)HOSE, OIL COOLER TO RESERVOIR
(USE W/4" RESERVOIR) -
3632-92837 HOSE, OIL COOLER TO RESERVOIR
(USE W/5" RESERVOIR)HOSE, OIL COOLER TO RESERVOIR
(USE W/5" RESERVOIR) -
3754-815504220 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
-
3854-47715 CLIP, HOSECLIP, HOSE
-
3910-47277 SCREW, (.312-24 x .750), HOSE CLIPSCREW, (.312-24 x .750), HOSE CLIP
-
4013-39107 LOCKWASHER, (.312-24), CLIP SCREWLOCKWASHER, (.312-24), CLIP SCREW
-
4112-26825 WASHER, (.328 x .750 x .06), CLIP SCREWWASHER, (.328 x .750 x .06), CLIP SCREW
-
-22-36382 FITTING, (.250-18 x .62) Brass
5" RESERVOIRFITTING, (.250-18 x .62) Brass
5" RESERVOIR -
-27-95688 GASKET, End Cover
5" RESERVOIRGASKET, End Cover
5" RESERVOIR -
-95687 COVER, END
5" RESERVOIRCOVER, END
5" RESERVOIR -
-10-95689 SCREW, END COVER
5" RESERVOIRSCREW, END COVER
5" RESERVOIR -
-12-95690 WASHER, FIBER
5" RESERVOIRWASHER, FIBER
5" RESERVOIR -
-22-328022 PLUG, Pipe (.125-27)
4" RESERVOIRPLUG, Pipe (.125-27)
4" RESERVOIR -
-27-65128 GASKET, END COVER
4" RESERVOIRGASKET, END COVER
4" RESERVOIR -
-66221 COVER, END
4" RESERVOIRCOVER, END
4" RESERVOIR -
-10-66223 SCREW, END COVER
4" RESERVOIRSCREW, END COVER
4" RESERVOIR -
-12-75451 WASHER, FIBER
4" RESERVOIRWASHER, FIBER
4" RESERVOIR
