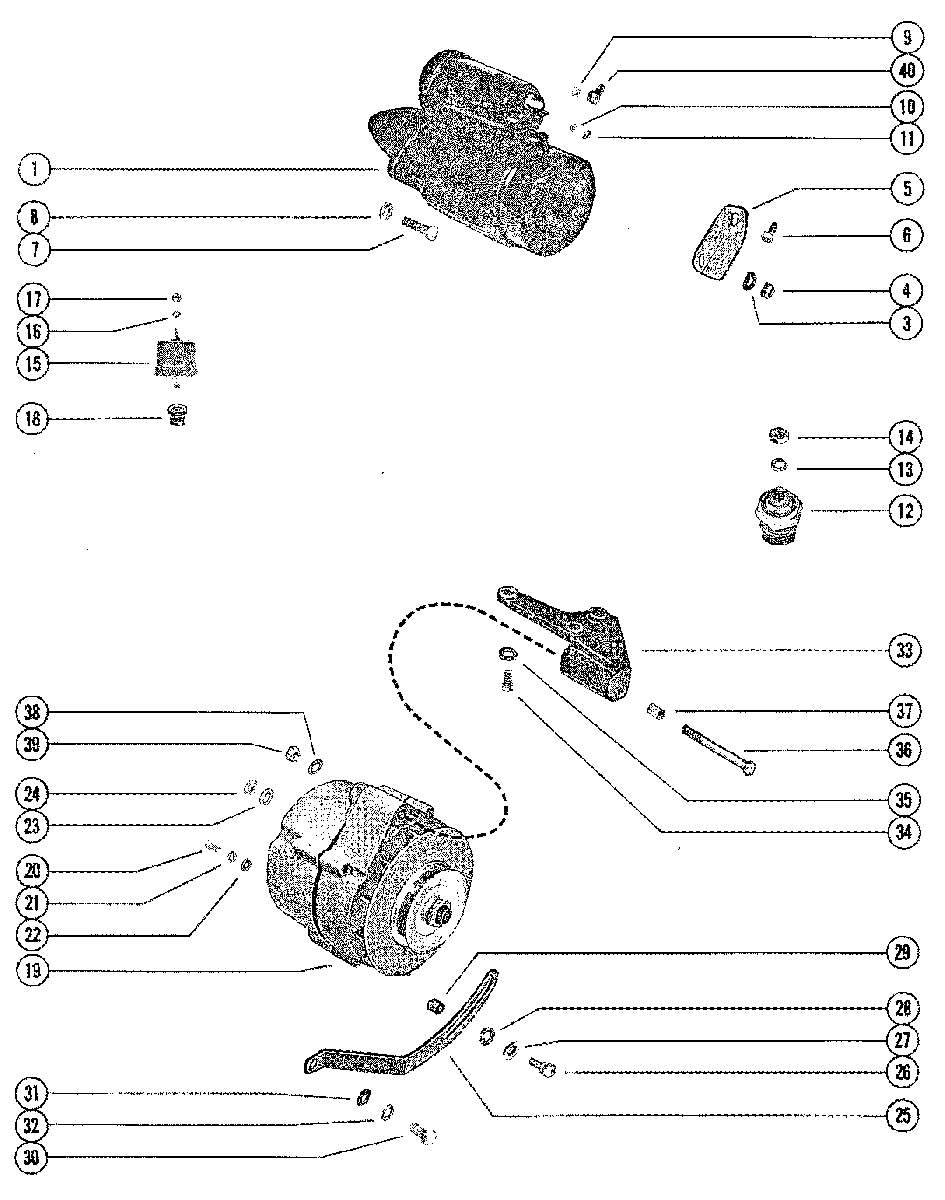

STARTER MOTOR AND ALTERNATOR для Mercruiser - 330 GM 454 V-8 1977-1981 4623115 THRU 6083144

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY (STERN DRIVE)
    SEE NOTE BELOW
    STARTER MOTOR ASSEMBLY (STERN DRIVE)
    SEE NOTE BELOW
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY (L.H. ROTATION) INBOARD
    SEE NOTE BELOW
    STARTER MOTOR ASSEMBLY (L.H. ROTATION) INBOARD
    SEE NOTE BELOW
  • 1
    50-97499R3 STARTER MOTOR ASSEMBLY (R.H. ROTATION) INBOARD
    SEE NOTE BELOW
    STARTER MOTOR ASSEMBLY (R.H. ROTATION) INBOARD
    SEE NOTE BELOW
  • 3
    13-26992 LOCKWASHER, STARTER MOTOR BRACE STERN DRIVE
    LOCKWASHER, STARTER MOTOR BRACE STERN DRIVE
  • 4
    11-20890 NUT, STARTER MOTOR BRACE STERN DRIVE
    NUT, STARTER MOTOR BRACE STERN DRIVE
  • 5
    89057 BRACE, STARTER MOTOR STERN DRIVE
    BRACE, STARTER MOTOR STERN DRIVE
  • 6
    10-35765A1 SCREW, BRACE TO ENGINE (5/8") STERN DRIVE
    SCREW, BRACE TO ENGINE (5/8") STERN DRIVE
  • 7
    10-94435001 SCREW, STARTER MOTOR TO CYLINDER BLOCK (4 21/32")-STERN DRIV
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (4 21/32")-STERN DRIV
  • 7
    10-47462 SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")-INBOARD
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")-INBOARD
  • 8
    13-32993 LOCKWASHER, STARTER MOTOR SCREW
    LOCKWASHER, STARTER MOTOR SCREW
  • 9
    11-86226 NUT, STARTER TERMINAL (3/8")
    NUT, STARTER TERMINAL (3/8")
  • 10
    13-26995 LOCKWASHER, STARTER TERMINAL (#8)
    LOCKWASHER, STARTER TERMINAL (#8)
  • 11
    11-26419 NUT, STARTER TERMINAL (#8)
    NUT, STARTER TERMINAL (#8)
  • 12
    97258A1 WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 13
    13-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 14
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 15
    8M0068784 OIL PRESSURE SENDER ASSEMBLY
    OIL PRESSURE SENDER ASSEMBLY
  • 16
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 17
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 15
    87-805605A1 OIL PRESSURE SWITCH ASSEMBLY INBOARD
    OIL PRESSURE SWITCH ASSEMBLY INBOARD
  • 16
    13-26996 LOCKWASHER, OIL PRESSURE SWITCH TERMINAL (#10) INBOARD
    LOCKWASHER, OIL PRESSURE SWITCH TERMINAL (#10) INBOARD
  • 17
    11-68219 NUT OIL, PRESSURED SWITCH TERMINAL (#10) INBOARD
    NUT OIL, PRESSURED SWITCH TERMINAL (#10) INBOARD
  • 18
    22-64013 BUSHING, OIL PRESSURE SENDER
    BUSHING, OIL PRESSURE SENDER
  • 19
    78403A2 ALTERNATOR ASSEMBLY (SEE NOTE BELOW)
    ALTERNATOR ASSEMBLY (SEE NOTE BELOW)
  • 20
    10-20055 SCREW, GROUND CABLE TO ALTERNATOR
    USE WITH DELCO REMY ALTERNATOR
    SCREW, GROUND CABLE TO ALTERNATOR
    USE WITH DELCO REMY ALTERNATOR
  • 21
    13-26996 LOCKWASHER, GROUND CABLE SCREW
    USE WITH DELCO REMY ALTERNATOR
    LOCKWASHER, GROUND CABLE SCREW
    USE WITH DELCO REMY ALTERNATOR
  • 22
    12-30164 WASHER, GROUND CABLE SCREW
    USE WITH DELCO REMY ALTERNATOR
    WASHER, GROUND CABLE SCREW
    USE WITH DELCO REMY ALTERNATOR
  • 23
    13-26991 LOCKWASHER, ALTERNATOR TERMINAL
    USE WITH DELCO REMY ALTERNATOR
    LOCKWASHER, ALTERNATOR TERMINAL
    USE WITH DELCO REMY ALTERNATOR
  • 24
    11-68531 NUT, ALTERNATOR TERMINAL
    USE WITH DELCO REMY ALTERNATOR
    NUT, ALTERNATOR TERMINAL
    USE WITH DELCO REMY ALTERNATOR
  • 23
    13-26996 LOCKWASHER, ALTERNATOR TERMINAL
    USE WITH MOTOROLA ALTERNATOR
    LOCKWASHER, ALTERNATOR TERMINAL
    USE WITH MOTOROLA ALTERNATOR
  • 24
    11-30968 NUT, ALTERNATOR TERMINAL (#10-24)
    USE WITH MOTOROLA ALTERNATOR
    NUT, ALTERNATOR TERMINAL (#10-24)
    USE WITH MOTOROLA ALTERNATOR
  • 23
    13-26992 LOCKWASHER, ALTERNATOR TERMINAL
    USE WITH MOTOROLA ALTERNATOR
    LOCKWASHER, ALTERNATOR TERMINAL
    USE WITH MOTOROLA ALTERNATOR
  • 24
    11-20890 NUT, ALTERNATOR TERMINAL
    USE WITH MOTOROLA ALTERNATOR
    NUT, ALTERNATOR TERMINAL
    USE WITH MOTOROLA ALTERNATOR
  • 25
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 26
    10-73657 SCREW, ALTERNATOR BRACE (1 1/2")-WITH POWER STEERING
    STERN DRIVE
    SCREW, ALTERNATOR BRACE (1 1/2")-WITH POWER STEERING
    STERN DRIVE
  • 26
    10-35386 SCREW, ALTERNATOR BRACE (1")-WITHOUT POWER STEERING
    STERN DRIVE
    SCREW, ALTERNATOR BRACE (1")-WITHOUT POWER STEERING
    STERN DRIVE
  • 26
    10-29198 SCREW, ALTERNATOR BRACE (7/8")-INBOARD
    SCREW, ALTERNATOR BRACE (7/8")-INBOARD
  • 27
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 28
    13-39107 LOCKWASHER, BRACE SCREW
    LOCKWASHER, BRACE SCREW
  • 29
    23-90523 SPACER, ALTERNATOR BRACE SCREW-WITH POWER STEEING
    STERN DRIVE
    SPACER, ALTERNATOR BRACE SCREW-WITH POWER STEEING
    STERN DRIVE
  • 30
    10-47651 SCREW, BRACE TO ENGINE (1 1/2") WITHOUTH POWER STEERING
    STERN DRIVE
    SCREW, BRACE TO ENGINE (1 1/2") WITHOUTH POWER STEERING
    STERN DRIVE
  • 30
    10-47461 SCREW, BRACE TO ENGINE (1") WITH POWER STEERING
    STERN DRIVE
    SCREW, BRACE TO ENGINE (1") WITH POWER STEERING
    STERN DRIVE
  • 30
    10-31381 SCREW, BRACE TO ENGINE (1")-INBOARD
    SCREW, BRACE TO ENGINE (1")-INBOARD
  • 31
    12-22248 WASHER, BRACE TO ENGINE SCREW
    WASHER, BRACE TO ENGINE SCREW
  • 32
    13-32993 LOCKWASHER, BRACE TO ENGINE SCREW
    LOCKWASHER, BRACE TO ENGINE SCREW
  • 33
    47487T BRACKET, ALTERNATOR MOUNTING
    BRACKET, ALTERNATOR MOUNTING
  • 34
    10-34353 SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (1")
    SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (1")
  • 34
    10-35787 SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (2 1/4")
    SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (2 1/4")
  • 35
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
  • 36
    10-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
    SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
  • 37
    23-33186 BUSHING, ALTERNATOR TO BRACKET SCREW
    BUSHING, ALTERNATOR TO BRACKET SCREW
  • 38
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 39
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
  • 40
    85-79695T INSULATOR BOOT, STARTER TERMINAL
    INSULATOR BOOT, STARTER TERMINAL
