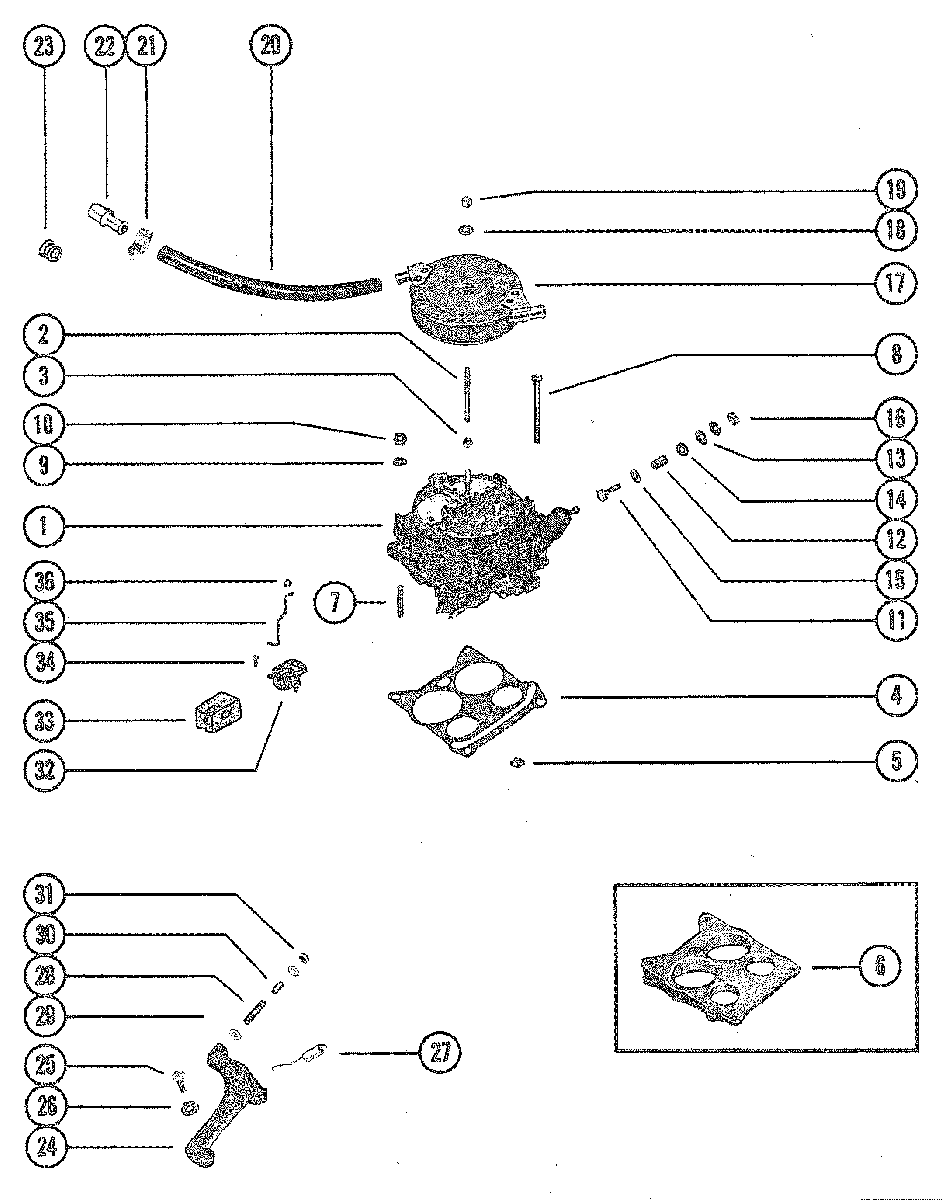

CARBURETOR AND AUTOMATIC CHOKE для Mercruiser - 330 GM 454 V-8 1977-1981 4623115 THRU 6083144

  • №
    Артикул
    Название
  • 1
    1347-804626R02 CARBURETOR ASSEMBLY (STERN DRIVE)
    CARBURETOR ASSEMBLY (STERN DRIVE)
  • 1
    1347-804626R02 CARBURETOR ASSEMBLY (INBOARD)
    CARBURETOR ASSEMBLY (INBOARD)
  • 2
    16-91842 STUD, FLAME ARRESTOR MOUNTING - CARBURETOR
    STUD, FLAME ARRESTOR MOUNTING - CARBURETOR
  • 3
    11-8267139 NUT, JAM - FLAME ARRESTOR MOUNTING STUD (BOTTOM)
    NUT, JAM - FLAME ARRESTOR MOUNTING STUD (BOTTOM)
  • 4
    27-524572 GASKET, CARBURETOR (FOR INBOARD ENGINE - QUANITITY OF 2)
    GASKET, CARBURETOR (FOR INBOARD ENGINE - QUANITITY OF 2)
  • 5
    22-12524 PLUG, INTAKE MANIFOLD VACUUM HOLE
    PLUG, INTAKE MANIFOLD VACUUM HOLE
  • 6
    53513A4 WEDGE, CARBURETOR MOUNTING (INBOARD)
    WEDGE, CARBURETOR MOUNTING (INBOARD)
  • 7
    16-46857 STUD, CARBURETOR MOUNTING (STERN DRIVE)
    STUD, CARBURETOR MOUNTING (STERN DRIVE)
  • 7
    16-63332 STUD, CARB. MTG. (1 1/4") INBOARD
    STUD, CARB. MTG. (1 1/4") INBOARD
  • 7
    16-53722 STUD, CARB. MTG. (4 3/8") INBOARD
    STUD, CARB. MTG. (4 3/8") INBOARD
  • 7
    16-54345 STUD, CARB. MTG. (1 5/16")INBOARD
    SERIAL 00000000-04890179
    STUD, CARB. MTG. (1 5/16")INBOARD
    SERIAL 00000000-04890179
  • 7
    16-53724 STUD, CARB. MTG. (1 3/4")INBOARD
    SERIAL 04890180-09999999
    STUD, CARB. MTG. (1 3/4")INBOARD
    SERIAL 04890180-09999999
  • 8
    10-74822 SCREW, CARBURETOR MOUNTING (STERN DRIVE)
    SCREW, CARBURETOR MOUNTING (STERN DRIVE)
  • 9
    12-20084 WASHER, CARB. (4 USED ON STERN DRIVE; 6 USED ON INBOARD)
    WASHER, CARB. (4 USED ON STERN DRIVE; 6 USED ON INBOARD)
  • 10
    11-29250 NUT, CARB. (2 USED ON STERN DRIVE; 6 USED ON INBOARD)
    NUT, CARB. (2 USED ON STERN DRIVE; 6 USED ON INBOARD)
  • 11
    10-98509 SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")
    SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")
  • 12
    23-57938 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 13
    23-34948 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 14
    12-56681 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 15
    12-847883 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 16
    11-8267086 NUT, THROTTLE CABLE SCREW
    NUT, THROTTLE CABLE SCREW
  • 17
    805298A1 FLAME ARRESTOR, CARUBRETOR
    FLAME ARRESTOR, CARUBRETOR
  • 18
    12-22937 WASGER, FLAME ARRESTOR STUD-METAL
    WASGER, FLAME ARRESTOR STUD-METAL
  • 18
    12-86400 WASHER, FLAME ARRESTOR STUD-RUBBERIZED
    WASHER, FLAME ARRESTOR STUD-RUBBERIZED
  • 19
    11-826709109 NUT, FLAME ARRESTOR STUD
    NUT, FLAME ARRESTOR STUD
  • 20
    32-8M0062669 HOSE, VENT - CARBURETOR (9 3/4") -INBOARD
    HOSE, VENT - CARBURETOR (9 3/4") -INBOARD
  • 20
    32-8M0062669 HOSE< VENT - CARBURETOR (8 1/4")
    -2 USED ON STERN DRIVE; 1 USED ON INBOARD
    HOSE< VENT - CARBURETOR (8 1/4")
    -2 USED ON STERN DRIVE; 1 USED ON INBOARD
  • 21
    54-53101 CLAMP, VENT HOSE ATTACHING
    CLAMP, VENT HOSE ATTACHING
  • 22
    47957 CONNECTOR, VENT HOSE TO ROCKER COVER
    CONNECTOR, VENT HOSE TO ROCKER COVER
  • 23
    25-59987 GROMMET, ROCKER COVER TO VENT HOSE CONNECTOR
    GROMMET, ROCKER COVER TO VENT HOSE CONNECTOR
  • 24
    805359A02 BRACKET, MOUNTING - THROTTLE CABLE (STERN DRIVE)
    BRACKET, MOUNTING - THROTTLE CABLE (STERN DRIVE)
  • 24
    57096 BRACKET, THROTTLE CABLE INBOARD
    SERIAL 00000000-04890179
    BRACKET, THROTTLE CABLE INBOARD
    SERIAL 00000000-04890179
  • 25
    10-35386 SCREW, BRACKET TO MANIFOLD
    SERIAL 00000000-04890179
    SCREW, BRACKET TO MANIFOLD
    SERIAL 00000000-04890179
  • 24
    49929 BRACKET, THROTTLE CABLE (INBOARD)
    SERIAL 04890180-09999999
    BRACKET, THROTTLE CABLE (INBOARD)
    SERIAL 04890180-09999999
  • 26
    12-69056 WASHER, THROTTLE CABLE BRACKET SCREW AND STUD
    WASHER, THROTTLE CABLE BRACKET SCREW AND STUD
  • 27
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 28
    16-35897 STUD, THROTTLE CABLE TO MOUNTING BRACKET (1 11/16")
    STUD, THROTTLE CABLE TO MOUNTING BRACKET (1 11/16")
  • 29
    12-69056 WASHER, THROTTLE CABLE STUD
    WASHER, THROTTLE CABLE STUD
  • 30
    23-31866 SPACER, THROTTLE CABLE STUD
    SPACER, THROTTLE CABLE STUD
  • 31
    11-826709109 NUT, THROTTLE CABLE STUD
    NUT, THROTTLE CABLE STUD
  • 32
    66205 CHOKE, AUTOMATIC - CARBURETOR
    CHOKE, AUTOMATIC - CARBURETOR
  • 33
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 34
    10-69235 SCREW, AUTOMATIC CHOKE THERMOSTAT (5/8")
    SCREW, AUTOMATIC CHOKE THERMOSTAT (5/8")
  • 35
    77931 ROD, AUTOMATIC CHOKE (STERN DRIVE)
    ROD, AUTOMATIC CHOKE (STERN DRIVE)
  • 35
    66197 ROD, AUTOMATIC CHOKE (INBOARD)
    ROD, AUTOMATIC CHOKE (INBOARD)
  • 36
    54-59989 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
