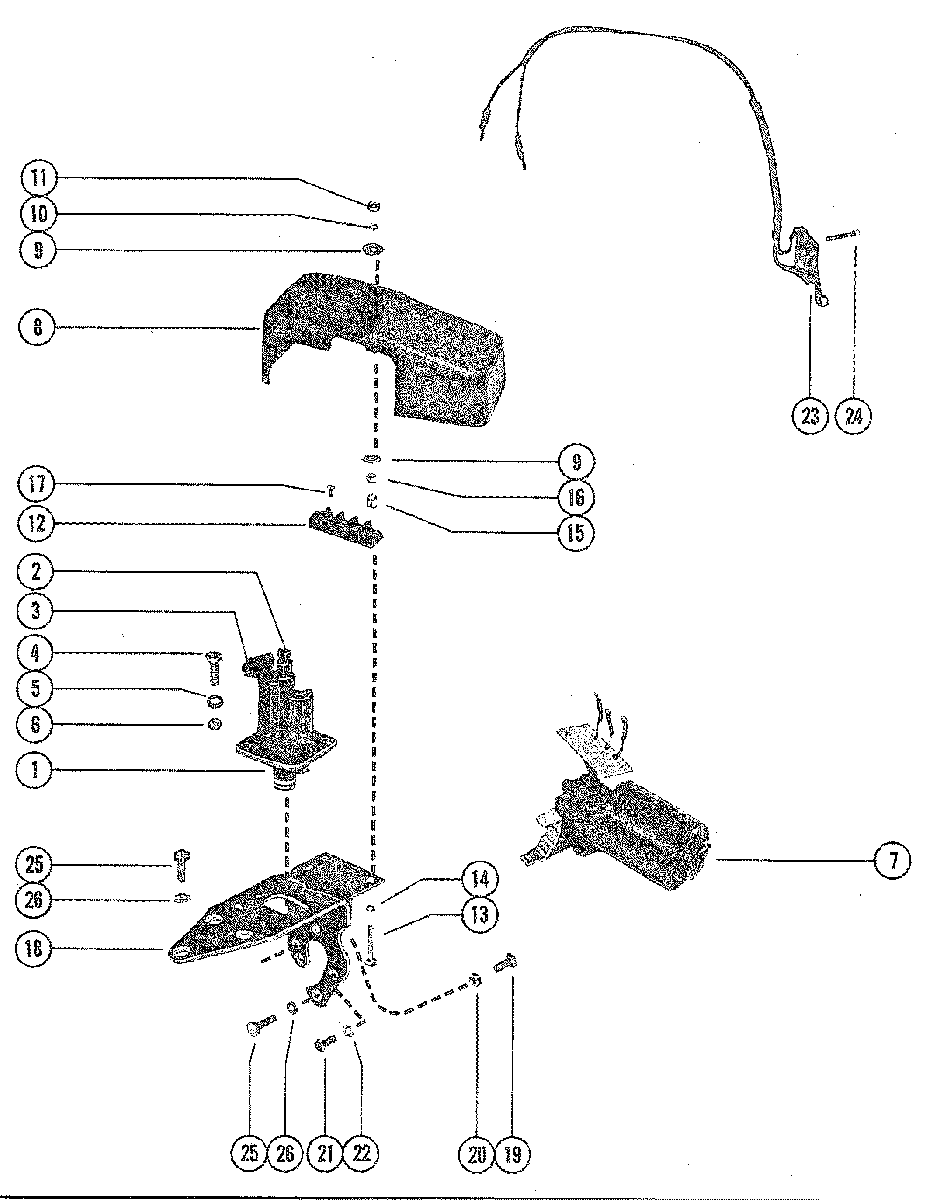

REVERSE LOCK VALVE AND SHIFT ACTUATOR (STERN DRIVE) для Mercruiser - 330 GM 454 V-8 1977-1981 4623115 THRU 6083144
-
№АртикулНазвание
-
154951A2 REVERSE LOCK VALVE ASSEMBLYREVERSE LOCK VALVE ASSEMBLY
-
222-48166 FITTING, STRAIGHT - REVERSE LOCK ASSEMBLYFITTING, STRAIGHT - REVERSE LOCK ASSEMBLY
-
322-52666 ELBOW, REVERSE LOCK VALVEELBOW, REVERSE LOCK VALVE
-
410-22485 SCREW, REVERSE LOCK VALVE TO CONTROL VALVE (3/4")SCREW, REVERSE LOCK VALVE TO CONTROL VALVE (3/4")
-
512-20583 WASHER, REVERSE LOCK VALVEWASHER, REVERSE LOCK VALVE
-
611-20184 NUT, REVERSE LOCK VALVE SCREWNUT, REVERSE LOCK VALVE SCREW
-
769392A4 SHIFT ACTUATOR ASSEMBLY (SEE PAGE 48 FOR BREAKDOWN)SHIFT ACTUATOR ASSEMBLY (SEE PAGE 48 FOR BREAKDOWN)
-
863038 COVER, SHIFT ACTUATORCOVER, SHIFT ACTUATOR
-
912-22887 WASHER, TERMINAL BLOCK AND COVER SCREWWASHER, TERMINAL BLOCK AND COVER SCREW
-
1013-26996 LOCKWASHER, TERMINAL BLOCK AND COVER SCREWLOCKWASHER, TERMINAL BLOCK AND COVER SCREW
-
1111-68219 NUT, TERMINAL BLOCK AND COVER SCREWNUT, TERMINAL BLOCK AND COVER SCREW
-
1286-43454 TERMINAL BLOCK, MOUNTING BRACKETTERMINAL BLOCK, MOUNTING BRACKET
-
1310-73656 SCREW, TERMINAL BLOCK AND COVER TO BRACKET (1 3/8")SCREW, TERMINAL BLOCK AND COVER TO BRACKET (1 3/8")
-
1413-26996 LOCKWASHER, TERMINAL BLOCK AND COVER SCREWLOCKWASHER, TERMINAL BLOCK AND COVER SCREW
-
1523-61526 SPACER, TERMINAL BLOCK AND COVER SCREWSPACER, TERMINAL BLOCK AND COVER SCREW
-
1611-24656 NUT, TERMINAL BLOCK AND COVER SCREWNUT, TERMINAL BLOCK AND COVER SCREW
-
1710-36046 SCREW, HARNESS TO TERMINAL BLOCK (1/4")SCREW, HARNESS TO TERMINAL BLOCK (1/4")
-
1885821A1 BRACKET ASSEMBLY, MOUNTING - SHIFT ACTUATORBRACKET ASSEMBLY, MOUNTING - SHIFT ACTUATOR
-
1910-69028 SCREW, STOP (3/4")SCREW, STOP (3/4")
-
2011-20184 NUT, STOP SCREWNUT, STOP SCREW
-
2110-34290 SCREW, SHIFT ACTUATOR TO MOUNTING BRACKET (5/8")SCREW, SHIFT ACTUATOR TO MOUNTING BRACKET (5/8")
-
2213-26992 LOCKWASHER, SHIFT ACTUATOR SCREWLOCKWASHER, SHIFT ACTUATOR SCREW
-
2339670A23 SWITCH ASSEMBLY, CUT-OUTSWITCH ASSEMBLY, CUT-OUT
-
2410-30902 SCREW, SWITCH TO CONTROL VALVE CAP (3/4")SCREW, SWITCH TO CONTROL VALVE CAP (3/4")
-
2510-25299 SCREW, MOUNTING BRACKET TO CONTROL VALVE (3/4")SCREW, MOUNTING BRACKET TO CONTROL VALVE (3/4")
-
2613-39107 LOCKWASHER, CONTROL VALVE BRACKET SCREWLOCKWASHER, CONTROL VALVE BRACKET SCREW
