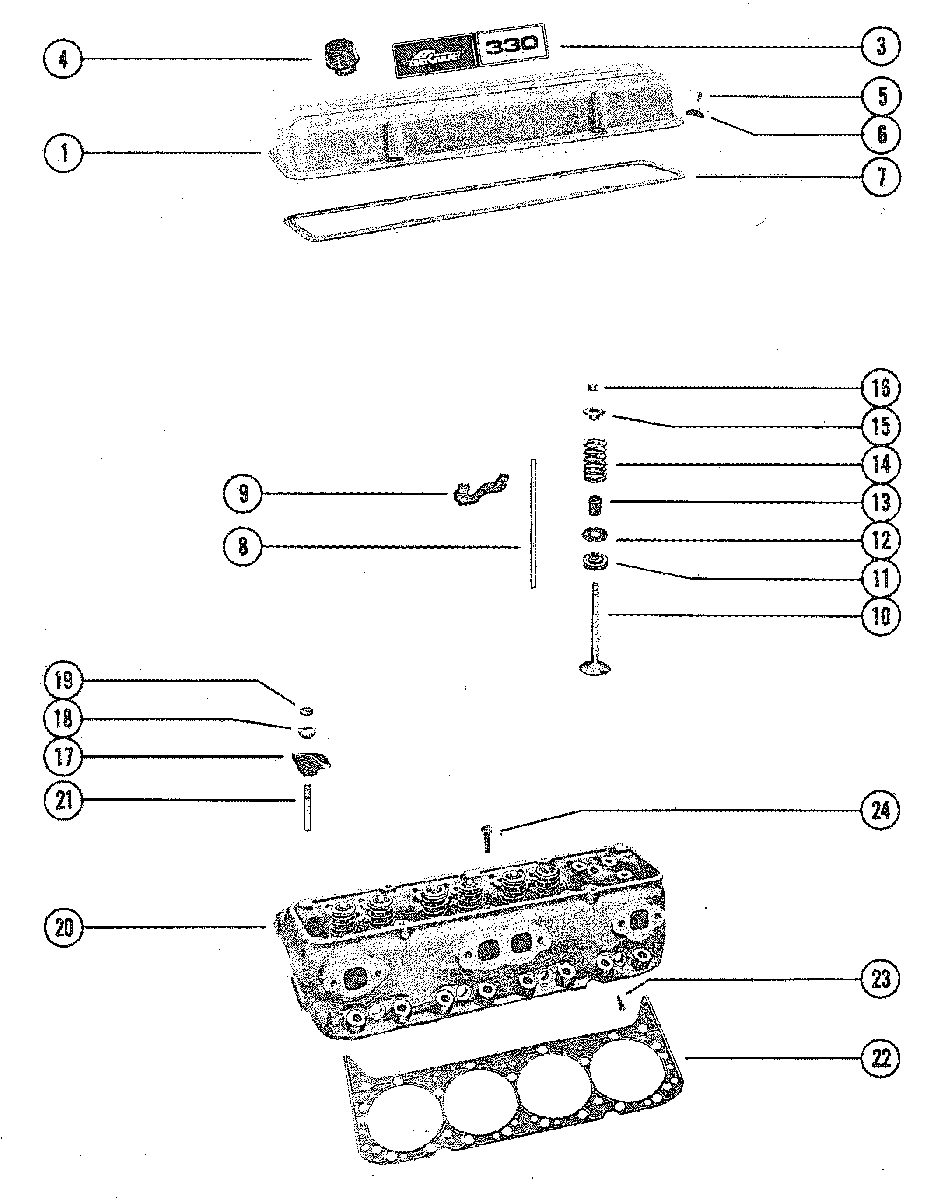

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 330 GM 454 V-8 1977-1981 4623115 THRU 6083144

  • №
    Артикул
    Название
  • 1
    17671 COVER, ROCKER (LEFT) (NOT USED ON LATER ENGINES)
    COVER, ROCKER (LEFT) (NOT USED ON LATER ENGINES)
  • 1
    17671 COVER, ROCKER (RIGHT) QUANTITY OF 2 ON LATER ENGINES)
    COVER, ROCKER (RIGHT) QUANTITY OF 2 ON LATER ENGINES)
  • 2
    37-77556 DECAL, ROCKER COVER "330 HP" (STARBOARD) STERN DRIVE
    DECAL, ROCKER COVER "330 HP" (STARBOARD) STERN DRIVE
  • 2
    37-77557 DECAL, ROCKER COVER "330 HP" (PORT) STERN DRIVE
    DECAL, ROCKER COVER "330 HP" (PORT) STERN DRIVE
  • 2
    37-77258 DECAL, ROCKER COVER "330 HP" (STARBOARD) INBOARD
    DECAL, ROCKER COVER "330 HP" (STARBOARD) INBOARD
  • 2
    37-77259 DECAL, ROCKER COVER "330 HP" (PORT) INBOARD
    DECAL, ROCKER COVER "330 HP" (PORT) INBOARD
  • 4
    36-807152 CAP, OIL FILLER
    CAP, OIL FILLER
  • 5
    10-8M0040582 SCREW, ROCKER COVER TO CYLINDER HEAD (1/2")
    SCREW, ROCKER COVER TO CYLINDER HEAD (1/2")
  • 6
    49174 REINFORCEMENT, ROCKER COVER SCREW
    REINFORCEMENT, ROCKER COVER SCREW
  • 7
    27-49121 GASKET, ROCKER COVER
    GASKET, ROCKER COVER
  • 8
    75589 ROD, VALVE PUSH (INLET)
    ROD, VALVE PUSH (INLET)
  • 8
    75590 ROD, VALVE PUSH (EXHAUST)
    ROD, VALVE PUSH (EXHAUST)
  • 9
    75979 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 10
    67861 VALVE, EXHAUST (STANDARD)
    VALVE, EXHAUST (STANDARD)
  • 10
    68572 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 10
    49134 VALVE, INLET (STANDARD)
    VALVE, INLET (STANDARD)
  • 10
    49135 VALVE, INLET (.015 O.S.)
    VALVE, INLET (.015 O.S.)
  • 11
    14755 ROTATOR, EXHAUST VALVE SPRING
    ROTATOR, EXHAUST VALVE SPRING
  • 12
    15-845669 SHIM, INLET VALVE SPRING
    SHIM, INLET VALVE SPRING
  • 13
    26-75988 SEAL, VALVE STEM
    SEAL, VALVE STEM
  • 14
    24-75584 SPRING, VALVE
    SPRING, VALVE
  • 15
    49129 CAP, VALVE SPRING
    CAP, VALVE SPRING
  • 16
    28-54530 KEY, VALVE STEM
    KEY, VALVE STEM
  • 17
    19241 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 18
    58041 BALL UNIT, ROCKER VALVE ARM
    BALL UNIT, ROCKER VALVE ARM
  • 19
    11-49119 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 20
    938-883491R1 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 21
    16-49133 STUD, ROCKER VALVE ARM
    STUD, ROCKER VALVE ARM
  • 22
    27-8M0049045 GASKET, CYLINDER HEAD TO CYLINDER BLOCK (2")
    GASKET, CYLINDER HEAD TO CYLINDER BLOCK (2")
  • 23
    8M0102366 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (4 1/8")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (4 1/8")
