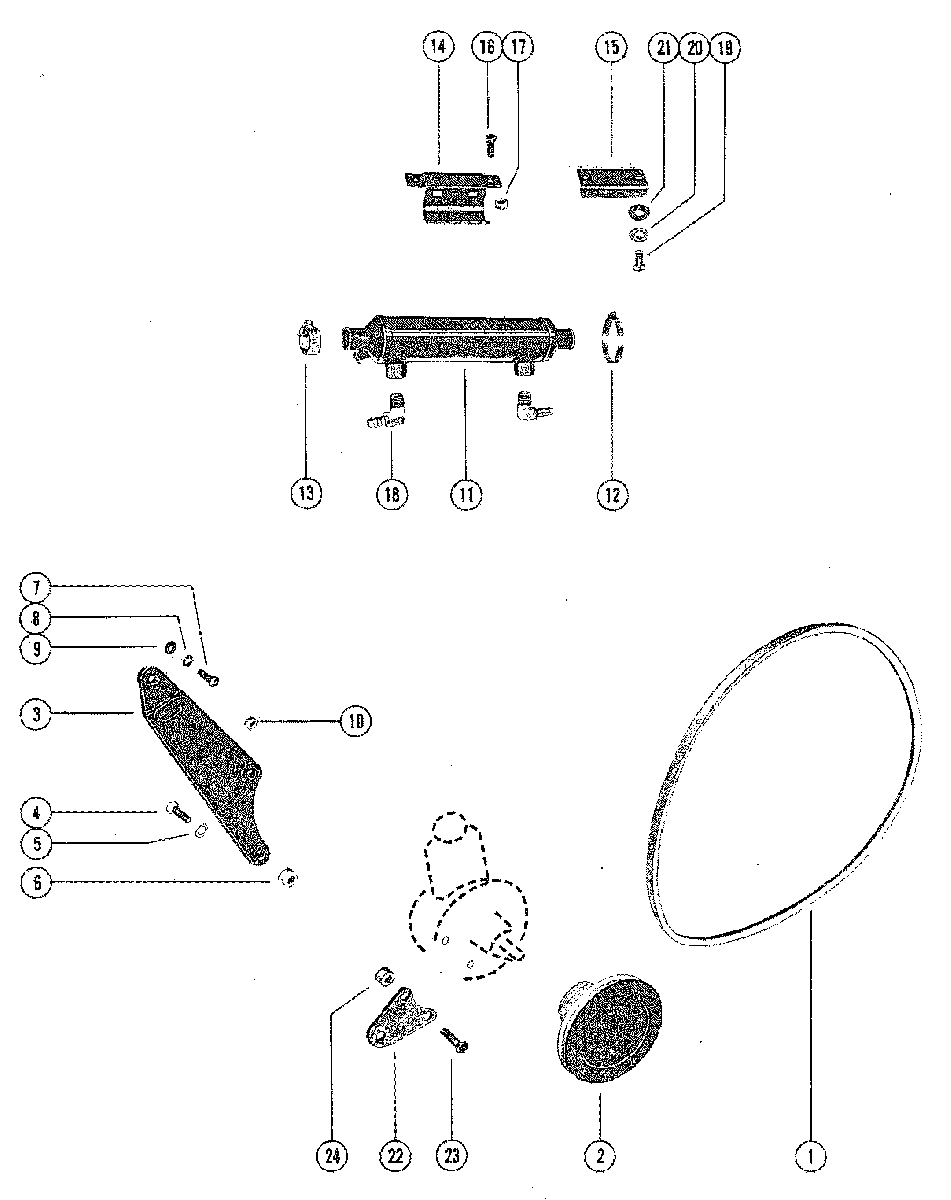

POWER STEERING COMPONENTS (STERN DRIVE) для Mercruiser - 330 GM 454 V-8 1977-1981 4623115 THRU 6083144
-
№АртикулНазвание
-
157-74270Q V-BELT, STEERING PUMPV-BELT, STEERING PUMP
-
273873A1 PULLEY, STEERING PUMPPULLEY, STEERING PUMP
-
349684 BRACKET, PUMP MOUNTINGBRACKET, PUMP MOUNTING
-
410-32132 SCREW, STEERING PUMP TO BRACKET (1 3/4")-NON METRICSCREW, STEERING PUMP TO BRACKET (1 3/4")-NON METRIC
-
410-40001203 SCREW, STEERING PUMP TO BRACKET (METRIC)SCREW, STEERING PUMP TO BRACKET (METRIC)
-
513-35048 LOCKWASHER, STEERING PUMP SCREW (NON METRIC)LOCKWASHER, STEERING PUMP SCREW (NON METRIC)
-
513-40024008 LOCKWASHER, STEERING PUMP SCREW (METRIC)LOCKWASHER, STEERING PUMP SCREW (METRIC)
-
623-90523 SPACER, STEERING PUMP SCREWSPACER, STEERING PUMP SCREW
-
710-47651 SCREW, BRACKET TO CYLINDER BLOCK (1 1/2")SCREW, BRACKET TO CYLINDER BLOCK (1 1/2")
-
813-32993 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
912-74758 WASHER, BRACKET SCREW (FOR SLOT)WASHER, BRACKET SCREW (FOR SLOT)
-
1011-86317 NUT, STEERING PUMP STUD (NON METRIC)NUT, STEERING PUMP STUD (NON METRIC)
-
1011-90517 NUT, STEERING PUMP STUD (METRIC)NUT, STEERING PUMP STUD (METRIC)
-
1199356A2 OIL COOLEROIL COOLER
-
1254-815504228 CLAMP, OIL COOLER TO BRACKETCLAMP, OIL COOLER TO BRACKET
-
1354-64324 CLAMP, HOSE ATTACHING TO OIL COOLER BRACKETCLAMP, HOSE ATTACHING TO OIL COOLER BRACKET
-
1449748A1 BRACKET ASSEMBLY, OIL COOLERBRACKET ASSEMBLY, OIL COOLER
-
1549735A1 BRACKET, OIL COOLER MOUNTBRACKET, OIL COOLER MOUNT
-
1610-20359 SCREW, OIL COOLER MOUNTING BRACKETSCREW, OIL COOLER MOUNTING BRACKET
-
1711-82670912 NUT, MOUNT BRACKET SCREWNUT, MOUNT BRACKET SCREW
-
1822-37760 ELBOW, OIL COOLERELBOW, OIL COOLER
-
1910-48424 SCREW, BRACKET TO ENGINESCREW, BRACKET TO ENGINE
-
2013-35048 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
2112-20572 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
2285011A1 BRACKET ASSEMBLY, PUMP
SERIAL 05163434-09999999BRACKET ASSEMBLY, PUMP
SERIAL 05163434-09999999 -
2310-26487 SCREW, PUMP BRK. TO MOUNTING BRK.
SERIAL 05163434-09999999SCREW, PUMP BRK. TO MOUNTING BRK.
SERIAL 05163434-09999999 -
2310-40001195 SCREW, PUMP BRK. TO MOUNTING BRK. (METRIC)
SERIAL 05163434-09999999SCREW, PUMP BRK. TO MOUNTING BRK. (METRIC)
SERIAL 05163434-09999999 -
2413-40024008 LOCKWASHER, PUMP BRACKET SCREW (METRIC)
SERIAL 05163434-09999999LOCKWASHER, PUMP BRACKET SCREW (METRIC)
SERIAL 05163434-09999999 -
2523-905201 SPACER, PUMP ASSEMBLY BRACKET SCREW
SERIAL 05163434-09999999SPACER, PUMP ASSEMBLY BRACKET SCREW
SERIAL 05163434-09999999
