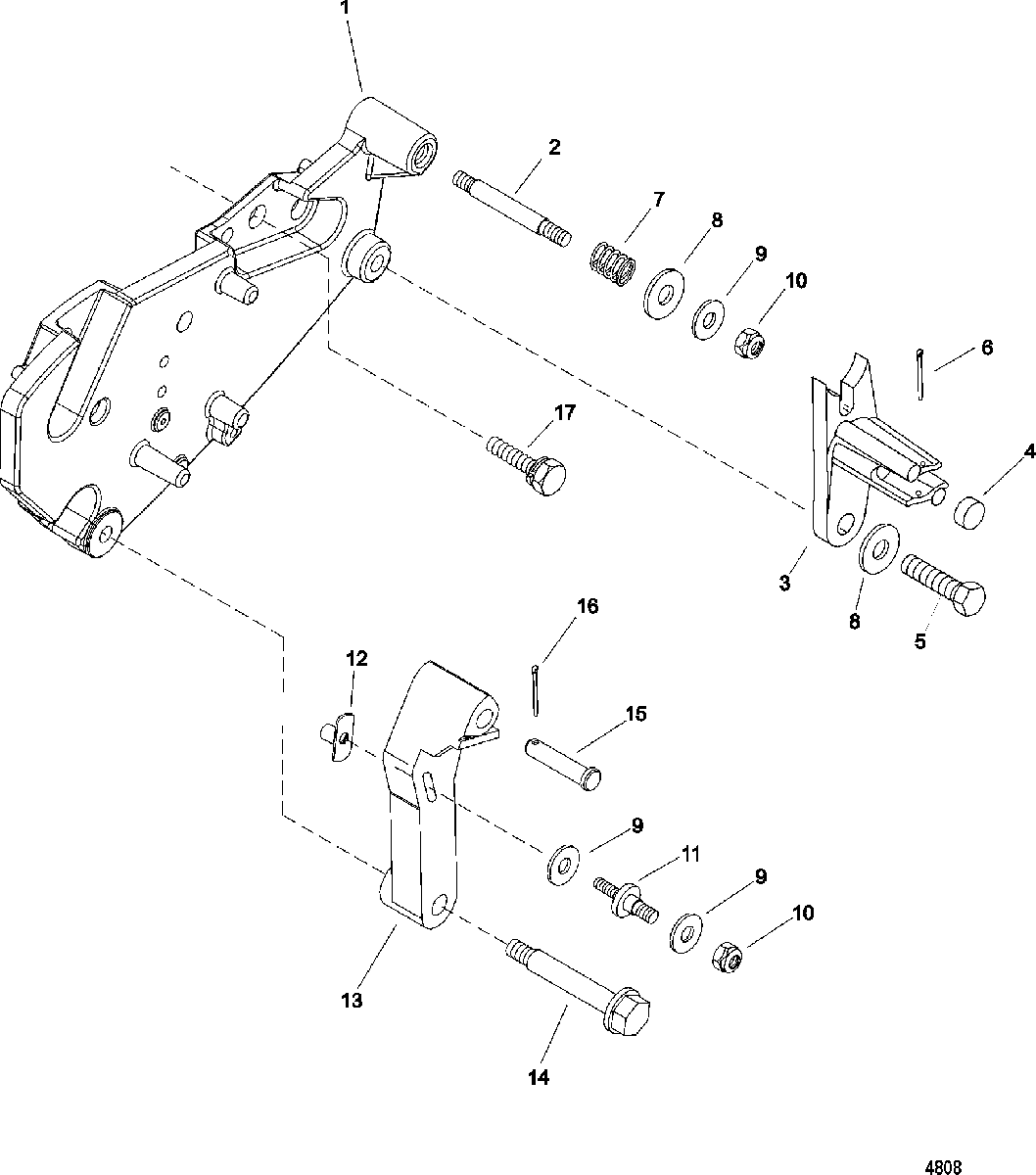

SHIFT BRACKET(Mechanical Shift )(SN-0M659999 and Below) для Mercruiser - 496 MAG (H.O. Model) 0M025000 THRU 0M687143
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLY, ShiftBRACKET ASSEMBLY, Shift
-
216-865154A02 STUD, (.250-20/.250-28 x 2.120)STUD, (.250-20/.250-28 x 2.120)
-
3865434A02 RETAINERRETAINER
-
423-98828 SPACERSPACER
-
510-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
618-328571 COTTER PINCOTTER PIN
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1011-8267119 NUT, (.250-28)NUT, (.250-28)
-
1116-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
1211-63341 TEE NUTTEE NUT
-
13863911A12 LEVER, ShiftLEVER, Shift
-
1410-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
1517-68402 PIN, (.250 x 1.13), ClevisPIN, (.250 x 1.13), Clevis
-
1618-210711 COTTER PINCOTTER PIN
-
1710-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
