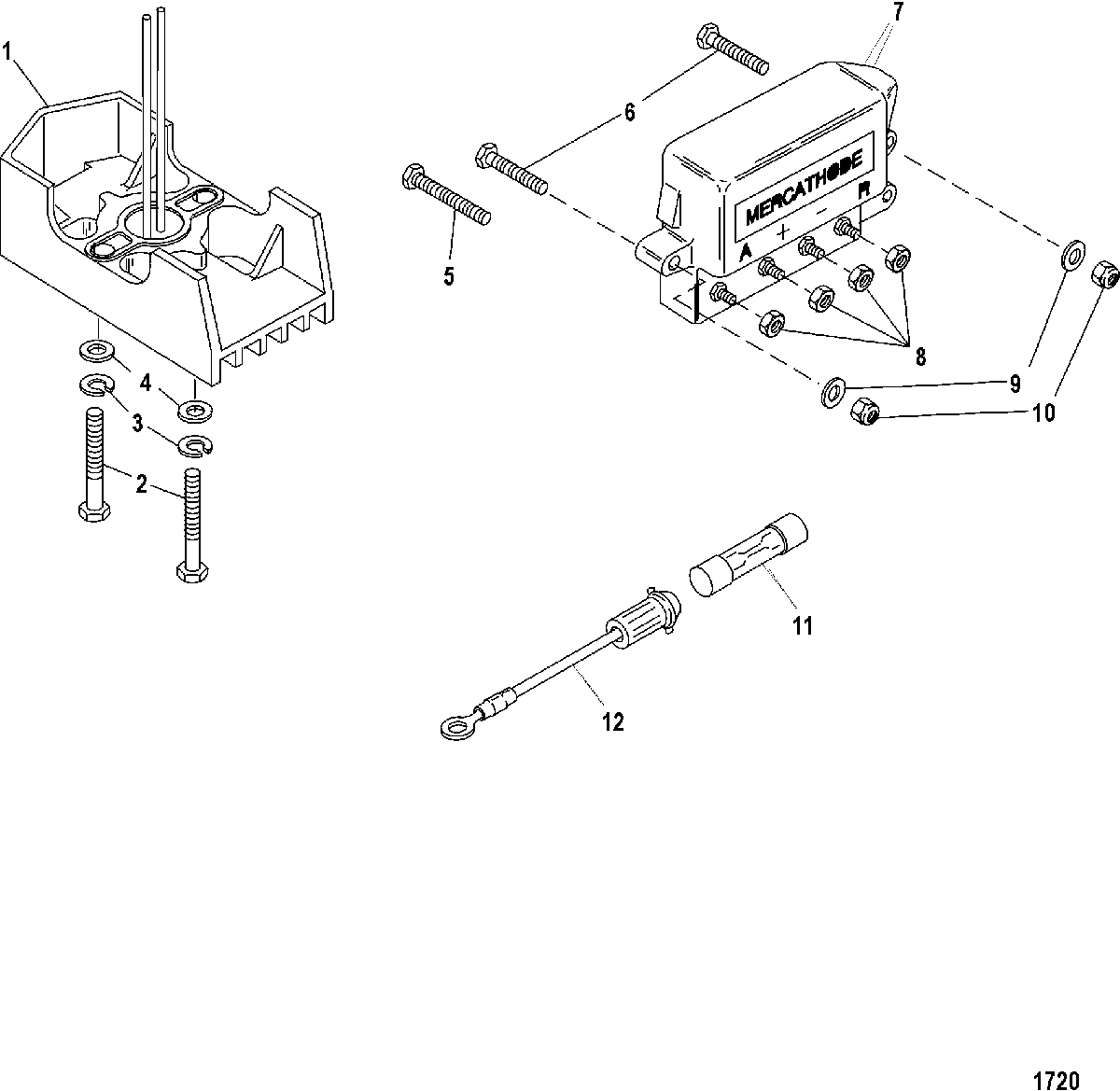

MERCATHODE для Mercruiser - 496 MAG (H.O. Model) 0M025000 THRU 0M687143

  • №
    Артикул
    Название
  • -
    8M0085693 MERCATHODE SYSTEM
    MERCATHODE SYSTEM
  • 1
    8M0085692 ELECTRODE ASSEMBLY
    ELECTRODE ASSEMBLY
  • 2
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
  • 3
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 4
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 5
    10-72202 SCREW, (#10-32 x 1.25)
    SCREW, (#10-32 x 1.25)
  • 6
    10-24637 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 7
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 8
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    12-21273 WASHER
    WASHER
  • 10
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 11
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 12
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
  • 12
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    CABLE ASSEMBLY, (5.00 Inches) Red
  • NS
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
