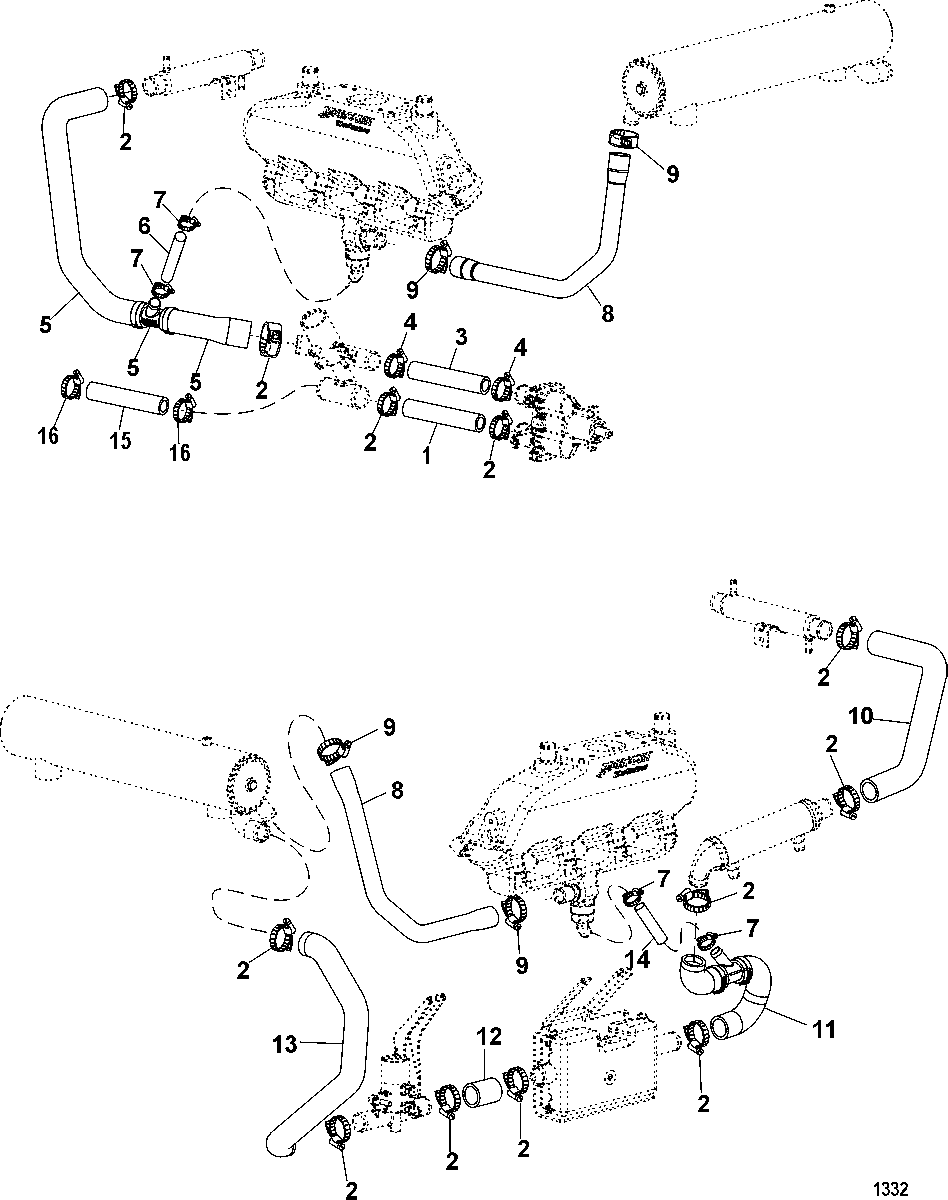

RAW WATER COOLING SYSTEM 1(S/N 0M095324 and Below) для Mercruiser - 496 MAG (H.O. Model) 0M025000 THRU 0M687143

  • №
    Артикул
    Название
  • 1
    32-863036 HOSE, Sea Water Pump to Water Drain
    HOSE, Sea Water Pump to Water Drain
  • 2
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 3
    32-8M0062666 HOSE, Sea Water Pump to Water Drain
    HOSE, Sea Water Pump to Water Drain
  • 4
    54-815504228 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 5
    32-8M0063512 HOSE ASSEMBLY, Water Drain to Power Steering Cooler
    HOSE ASSEMBLY, Water Drain to Power Steering Cooler
  • 6
    32-8M0062634 HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting
    (Starboard)(Cut to 9 In.)
    HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting
    (Starboard)(Cut to 9 In.)
  • 7
    54-815504212 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 8
    32-860327 HOSE, Heat Exchanger to Water Rail
    HOSE, Heat Exchanger to Water Rail
  • 9
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 10
    32-863043 HOSE, Power Steering Cooler to Oil Cooler
    HOSE, Power Steering Cooler to Oil Cooler
  • 11
    32-863044A1 HOSE ASSEMBLY, Oil Cooler to Cool Fuel System
    HOSE ASSEMBLY, Oil Cooler to Cool Fuel System
  • 12
    32-863047 HOSE, Cool Fuel System to Water Drain
    HOSE, Cool Fuel System to Water Drain
  • 13
    32-863051 HOSE, Water Drain to Heat Exchanger
    HOSE, Water Drain to Heat Exchanger
  • 14
    32-8M0062634 HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting
    (PORT)(Cut to 7 In.)
    HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting
    (PORT)(Cut to 7 In.)
  • 15
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    (Cut to 23-1/2 In.)
    HOSE, (96.00 Inches Bulk)
    (Cut to 23-1/2 In.)
  • 16
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • -
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
