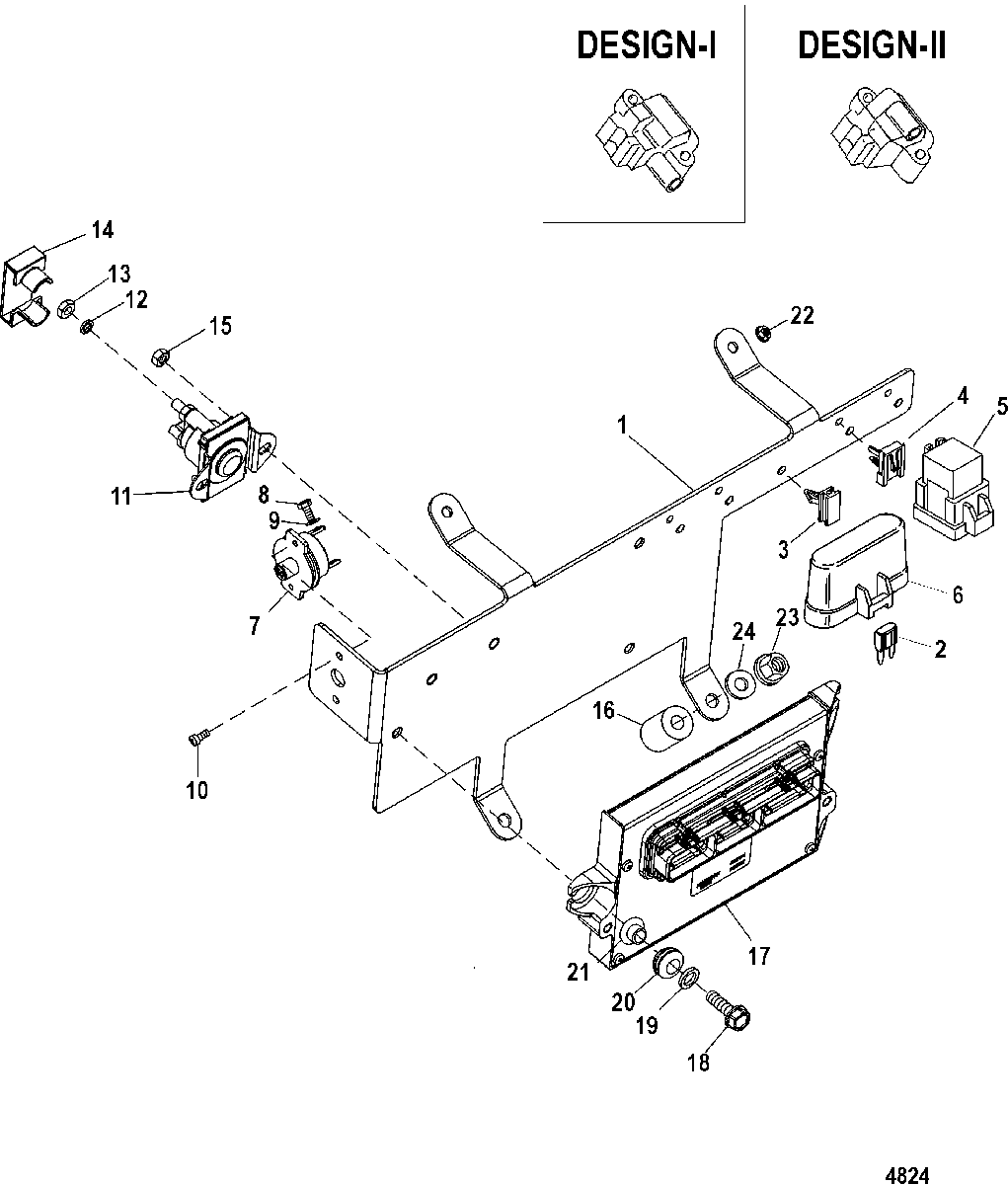

PCM AND BRACKET для Mercruiser - 496 MAG (H.O. Model) 0M025000 THRU 0M687143
-
№АртикулНазвание
-
NS84-8M3000546 HARNESS ASSEMBLY, Wiring (EFI)
(Mechanical Throttle/Shift) SN# 0M364615 & BelowHARNESS ASSEMBLY, Wiring (EFI)
(Mechanical Throttle/Shift) SN# 0M364615 & Below -
NS84-865457A01 HARNESS ASSEMBLY, Wiring (Integrated EFI and Charging)
(Mechanical Throttle and Shift) SN# 0M364616 THRU 0M672040HARNESS ASSEMBLY, Wiring (Integrated EFI and Charging)
(Mechanical Throttle and Shift) SN# 0M364616 THRU 0M672040 -
NS84-865457A02 HARNESS ASSEMBLY, Wiring (Base-Integrated EFI and Charging)
(Mechanical Throttle and Shift) SN# 0M672041 & UpHARNESS ASSEMBLY, Wiring (Base-Integrated EFI and Charging)
(Mechanical Throttle and Shift) SN# 0M672041 & Up -
NS84-865457A02 HARNESS ASSEMBLY, Wiring (H.O.-Integrated EFI and Charging)
(Mechanical Throttle and Shift) SN# 0M667238 & UpHARNESS ASSEMBLY, Wiring (H.O.-Integrated EFI and Charging)
(Mechanical Throttle and Shift) SN# 0M667238 & Up -
NS84-863935T02 HARNESS ASSEMBLY, Wiring (Integrated EFI and Charging)
(Digital Throttle and Shift) SN# 0M667237 & BelowHARNESS ASSEMBLY, Wiring (Integrated EFI and Charging)
(Digital Throttle and Shift) SN# 0M667237 & Below -
NS84-865458A01 HARNESS ASSEMBLY, Wiring (Integrated EFI and Charging)
(Digital Throttle and Shift) SN# 0M667238 & UpHARNESS ASSEMBLY, Wiring (Integrated EFI and Charging)
(Digital Throttle and Shift) SN# 0M667238 & Up -
1862539T BRACKET, PCM
(Use with Design-I Ignition Coil ) SN# 0M376087 & BelowBRACKET, PCM
(Use with Design-I Ignition Coil ) SN# 0M376087 & Below -
1862539T01 BRACKET, PCM
(Use with Design-II Ignition Coil) SN# 0M376088 & UpBRACKET, PCM
(Use with Design-II Ignition Coil) SN# 0M376088 & Up -
288-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
386-865205 CLIP, Fuse Block MountingCLIP, Fuse Block Mounting
-
454-804352 CLIP, Relay MountingCLIP, Relay Mounting
-
586-865202T RELAY
(Mechanical Throttle and Shift)RELAY
(Mechanical Throttle and Shift) -
586-865202T RELAY
(Digital Throttle and Shift)RELAY
(Digital Throttle and Shift) -
6883562 COVER, FuseCOVER, Fuse
-
788-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
810-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
913-26996 LOCKWASHER, (#10) Stainless Steel, Split LockLOCKWASHER, (#10) Stainless Steel, Split Lock
-
1010-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
1189-96158T SOLENOIDSOLENOID
-
NS11-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
NS13-26996 LOCKWASHER, (#10) Stainless Steel, Split LockLOCKWASHER, (#10) Stainless Steel, Split Lock
-
1213-26992 LOCKWASHER, (.250) Stainless Steel, Split LockLOCKWASHER, (.250) Stainless Steel, Split Lock
-
1311-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1485-97861 INSULATOR, SolenoidINSULATOR, Solenoid
-
1511-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1623-862995 SPACERSPACER
-
17865364T02 PCM, Propulsion Control Module (Base)
(Mechanical Throttle and Shift) SN# 0M667042 & BelowPCM, Propulsion Control Module (Base)
(Mechanical Throttle and Shift) SN# 0M667042 & Below -
17865364T02 PCM, Propulsion Control Module (Base)
(Mechanical Throttle and Shift) SN# 0M667043 & UpPCM, Propulsion Control Module (Base)
(Mechanical Throttle and Shift) SN# 0M667043 & Up -
17863784T02 PCM, Propulsion Control Module (Base)
(Digital Throttle and Shift) SN# 0M672220 & BelowPCM, Propulsion Control Module (Base)
(Digital Throttle and Shift) SN# 0M672220 & Below -
17863784T03 PCM, Propulsion Control Module (Base)
(Digital Throttle and Shift) SN# 0M672221 & UpPCM, Propulsion Control Module (Base)
(Digital Throttle and Shift) SN# 0M672221 & Up -
17865366T02 PCM, Propulsion Control Module (H.O.)
(Mechanical Throttle and Shift) SN# 0M667042 & BelowPCM, Propulsion Control Module (H.O.)
(Mechanical Throttle and Shift) SN# 0M667042 & Below -
17865366T02 PCM, Propulsion Control Module (H.O.)
(Mechanical Throttle and Shift) SN# 0M667043 & UpPCM, Propulsion Control Module (H.O.)
(Mechanical Throttle and Shift) SN# 0M667043 & Up -
17863785T03 PCM, Propulsion Control Module (H.O.)
(Digital Throttle and Shift) SN# 0M672221 & UpPCM, Propulsion Control Module (H.O.)
(Digital Throttle and Shift) SN# 0M672221 & Up -
1810-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1923-856954 BUSHING, Electrical PlateBUSHING, Electrical Plate
-
2025-834985 GROMMETGROMMET
-
2112-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2211-4002030 NUT, (M8)NUT, (M8)
-
2311-802751 NUTNUT
-
2412-12038 WASHERWASHER
