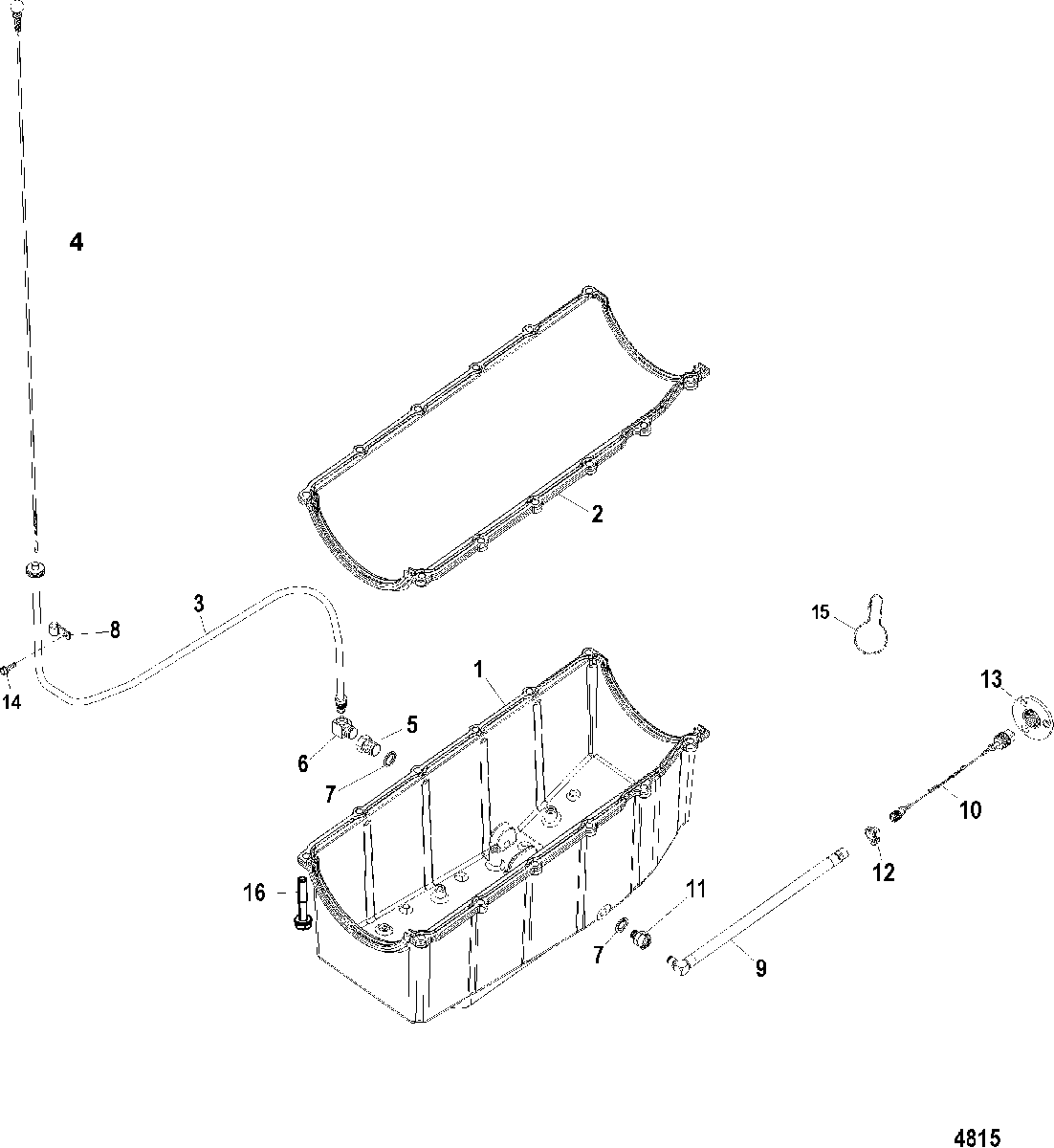

OIL PAN AND DRAIN SYSTEM для Mercruiser - 496 MAG (H.O. Model) 0M025000 THRU 0M687143

  • №
    Артикул
    Название
  • 1
    881653001 PAN, Oil
    PAN, Oil
  • NS
    883922 BAFFLE, Oil Pan
    BAFFLE, Oil Pan
  • NS
    10-883923 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 2
    27-881612 GASKET, Oil Pan
    GASKET, Oil Pan
  • 3
    863408 TUBE, Engine Oil Gauge
    (MCM)
    TUBE, Engine Oil Gauge
    (MCM)
  • 4
    86194210 GAUGE, Oil Level
    GAUGE, Oil Level
  • 5
    22-863389A01 FITTING, Oil Guage Tube
    FITTING, Oil Guage Tube
  • 6
    22-19697 ELBOW
    ELBOW
  • 7
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 8
    54-65653 CLIP
    CLIP
  • 9
    32-805505A4 HOSE, Oil Drain
    (DESIGN I- With Quick Connect Hose Assembly) SN# 0M628485 & Below
    HOSE, Oil Drain
    (DESIGN I- With Quick Connect Hose Assembly) SN# 0M628485 & Below
  • 9
    32-865281 HOSE, Oil Drain
    (DESIGN II-Without Quick Connect Hose Assembly) SN# 0M628486 & Up
    HOSE, Oil Drain
    (DESIGN II-Without Quick Connect Hose Assembly) SN# 0M628486 & Up
  • 9
    32-865280 HOSE, Oil Drain (Jackshaft Models)
    (DESIGN II-Without Quick Connect Hose Assembly) SN# 0M628486 & Up
    HOSE, Oil Drain (Jackshaft Models)
    (DESIGN II-Without Quick Connect Hose Assembly) SN# 0M628486 & Up
  • NS
    25-805063 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 10
    862827 TETHER ASSEMBLY
    TETHER ASSEMBLY
  • 11
    22-862811 FITTING, Female Quick Disconnect
    (DESIGN I - With Quick Connect Hose Assembly) SN# 0M628485 & Below
    FITTING, Female Quick Disconnect
    (DESIGN I - With Quick Connect Hose Assembly) SN# 0M628485 & Below
  • 12
    54-863481 CLAMP
    CLAMP
  • 13
    862777 FLANGE, Drain
    FLANGE, Drain
  • 14
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 15
    54-805524 CLIP
    CLIP
  • 16
    10-898101392 BOLT, (M8 x 30)
    BOLT, (M8 x 30)
