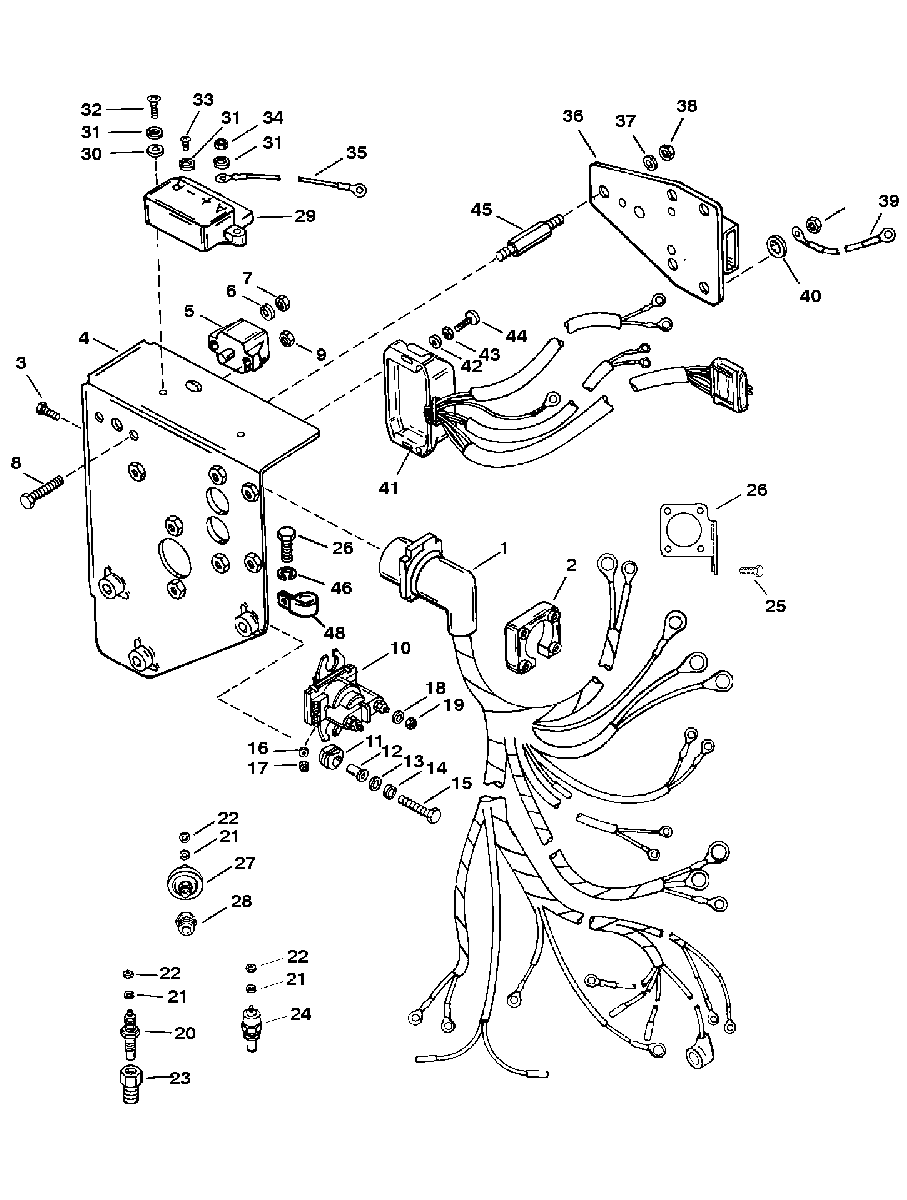

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 450 (GEN. V) GM 454 V-8 1995-1996 0F347100 THRU 0F347277

  • №
    Артикул
    Название
  • 1
    84-847722A2 HARNESS ASSEMBLY-Wiring
    HARNESS ASSEMBLY-Wiring
  • 2
    26079A2 PLATE KIT
    PLATE KIT
  • 3
    10-15001 SCREW (#8-16 x .875)
    SCREW (#8-16 x .875)
  • 4
    8481311 BRACKET-Electrical Components
    BRACKET-Electrical Components
  • 5
    88-11178A01 BREAKER-Circuit (50 AMP)
    BREAKER-Circuit (50 AMP)
  • 6
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 7
    11-68219 NUT (#10-32)
    NUT (#10-32)
  • 8
    10-45862 SCREW (#10-32 x .875)
    SCREW (#10-32 x .875)
  • 9
    11-61356 NUT (#10-32)
    NUT (#10-32)
  • 10
    89-818999A2 SOLENOID ASSEMBLY-Starter
    SOLENOID ASSEMBLY-Starter
  • 11
    25-818967 GROMMET
    GROMMET
  • 12
    23-818968 BUSHING
    BUSHING
  • 13
    12-29245 WASHER
    WASHER
  • 14
    13-26992 LOCKWASHER (.250)
    LOCKWASHER (.250)
  • 15
    10-76630 SCREW (.250-20 x 1.00)
    SCREW (.250-20 x 1.00)
  • 16
    13-26995 LOCKWASHER (#8)
    LOCKWASHER (#8)
  • 17
    11-26419 NUT (#8-32)
    NUT (#8-32)
  • 18
    13-26992 LOCKWASHER (.250)
    LOCKWASHER (.250)
  • 19
    11-94330 NUT (.250-20)
    NUT (.250-20)
  • 20
    13611 SENDER UNIT-Oil Temperature
    SENDER UNIT-Oil Temperature
  • 21
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 22
    11-45076 NUT (#10-32)
    NUT (#10-32)
  • 23
    22-36492 REDUCER
    REDUCER
  • 24
    806490T SENDER ASSEMBLY-Water Temperature
    SENDER ASSEMBLY-Water Temperature
  • 24
    49734 SENDER ASSEMBLY-Water Temperature (Dual)
    SENDER ASSEMBLY-Water Temperature (Dual)
  • 25
    10-88829 SCREW (#10-24 x .500)
    SCREW (#10-24 x .500)
  • 26
    8481911 BRACKET-Wire Harness
    BRACKET-Wire Harness
  • 27
    8M0068784 SENDER ASSEMBLY-Oil Pressure
    SENDER ASSEMBLY-Oil Pressure
  • 27
    37293T SENDER ASSEMBLY-Oil Pressure (Dual)
    SENDER ASSEMBLY-Oil Pressure (Dual)
  • 28
    22-64013 REDUCER
    REDUCER
  • 29
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 30
    12-30164 WASHER
    WASHER
  • 31
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 32
    10-41771 SCREW (#10-24 x .875)
    SCREW (#10-24 x .875)
  • 33
    10-62568 SCREW (#10-16 x .375)
    SCREW (#10-16 x .375)
  • 34
    11-68219 NUT (#10-32)
    NUT (#10-32)
  • 35
    84-86322A17 CABLE ASSEMBLY (Black)
    CABLE ASSEMBLY (Black)
  • 36
    17316A1 IGNITION MODULE ASSEMBLY
    IGNITION MODULE ASSEMBLY
  • 37
    12-29245 WASHER
    WASHER
  • 38
    11-8267098 NUT (.250-20)
    NUT (.250-20)
  • 39
    84-62826T06 CABLE ASSEMBLY (Black)
    CABLE ASSEMBLY (Black)
  • 40
    13-21272 LOCKWASHER (Internal)
    LOCKWASHER (Internal)
  • 41
    823755T1 OVERSPEED ASSEMBLY
    OVERSPEED ASSEMBLY
  • 42
    12-30164 WASHER
    WASHER
  • 43
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 44
    10-41069 SCREW (#10-24 x .750)
    SCREW (#10-24 x .750)
  • 45
    16-847738 STUD-Electrical Bracket Mount
    STUD-Electrical Bracket Mount
  • 46
    12-856774 WASHER
    WASHER
  • 47
    10-825427 SCREW-Bracket Mount (.437-14 x 1.250)
    SCREW-Bracket Mount (.437-14 x 1.250)
  • 48
    54-848183 J CLIP-Electrical Harness
    J CLIP-Electrical Harness
