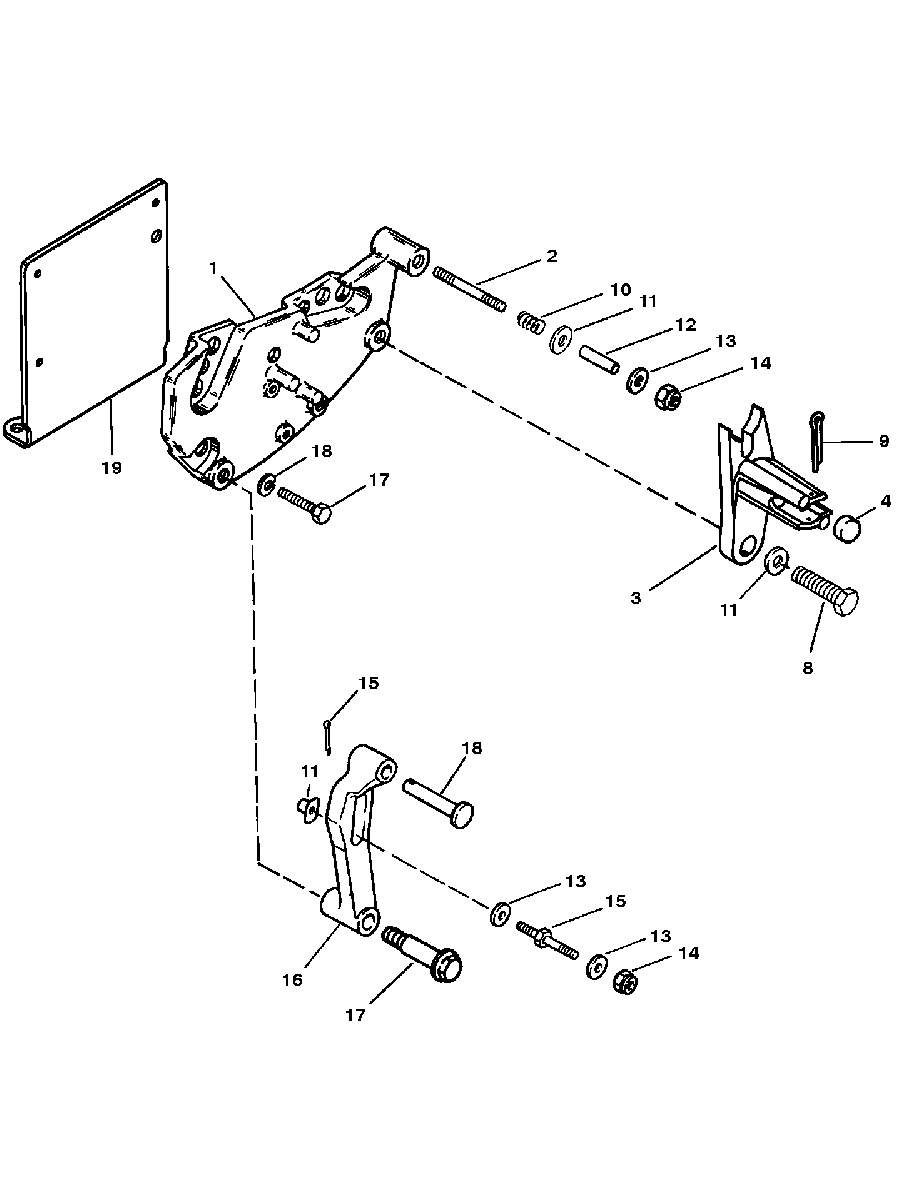

SHIFT BRACKET для Mercruiser - 450 (GEN. V) GM 454 V-8 1995-1996 0F347100 THRU 0F347277

  • №
    Артикул
    Название
  • 1
    807962A15 BRACKET ASSEMBLY-Shift
    BRACKET ASSEMBLY-Shift
  • 2
    16-865154A02 STUD-Shift Cable
    STUD-Shift Cable
  • 3
    865434A02 RETAINER-Shift Cable
    RETAINER-Shift Cable
  • 4
    23-98828 SPACER
    SPACER
  • 5
    10-53167T SCREW (.312-18 x .875)
    SCREW (.312-18 x .875)
  • 6
    18-328571 PIN-Cotter-Shift Cable Retaining
    PIN-Cotter-Shift Cable Retaining
  • 7
    24-98880 SPRING-Shift Cable Stud
    SPRING-Shift Cable Stud
  • 8
    12-56720 WASHER-Shift Bracket Stud
    WASHER-Shift Bracket Stud
  • 9
    23-90523 SPACER-Shift Cable Stud
    SPACER-Shift Cable Stud
  • 10
    12-35462 WASHER-Shift Cable Stud
    WASHER-Shift Cable Stud
  • 11
    11-8267119 NUT (.250-28)-Shift Cable Stud
    NUT (.250-28)-Shift Cable Stud
  • 12
    16-8M0113178 STUD-Shift Cable
    STUD-Shift Cable
  • 13
    11-63341 NUT-Tee-Shift Cable Stud
    NUT-Tee-Shift Cable Stud
  • 14
    863911A12 LEVER-Shift
    LEVER-Shift
  • 15
    10-865148 SCREW (.312-18 x 1.843)-Shoulder-Shift Lever
    SCREW (.312-18 x 1.843)-Shoulder-Shift Lever
  • 16
    17-68402 PIN-Shoulder-Shift Lever
    PIN-Shoulder-Shift Lever
  • 17
    18-210711 PIN-Cotter-Shift Lever
    PIN-Cotter-Shift Lever
  • 18
    8M0052632 ADAPTER
    ADAPTER
  • 19
    10-98256 SCREW (.250-28 x .500)
    SCREW (.250-28 x .500)
  • 20
    13-26992 LOCKWASHER (.250)
    LOCKWASHER (.250)
