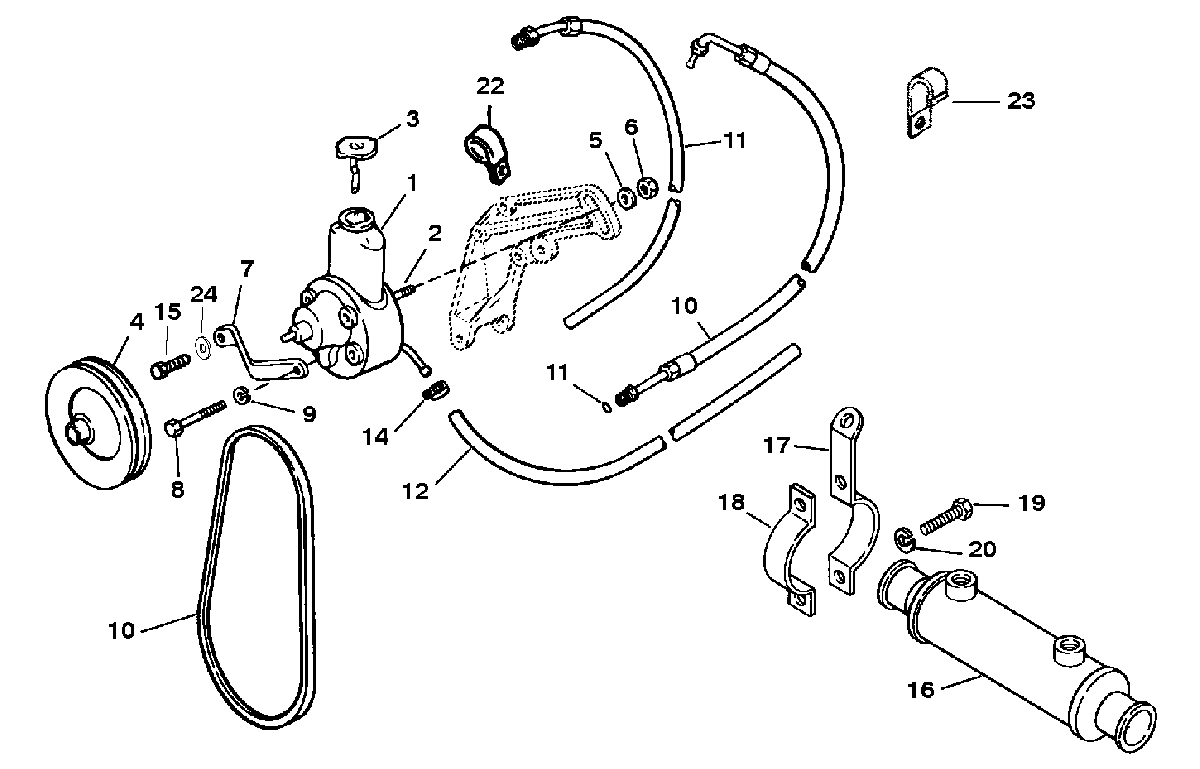

POWER STEERING COMPONENTS для Mercruiser - 450 (GEN. V) GM 454 V-8 1995-1996 0F347100 THRU 0F347277

  • №
    Артикул
    Название
  • 1
    8M0084520 PUMP ASSEMBLY-Power Steering (Blue)
    PUMP ASSEMBLY-Power Steering (Blue)
  • 2
    16-41877 STUD
    STUD
  • 3
    36-95805 CAP
    CAP
  • 4
    738733 PULLEY (Blue)
    PULLEY (Blue)
  • 5
    12-34567 WASHER (BRACE SLOT)
    WASHER (BRACE SLOT)
  • 6
    11-90517 NUT
    NUT
  • 7
    98813F1 BRACE
    BRACE
  • 8
    10-40001188 SCREW (M10 x 20)
    SCREW (M10 x 20)
  • 9
    13-400248 LOCKWASHER
    LOCKWASHER
  • 10
    57-812427Q V BELT
    V BELT
  • 11
    32-98494 HOSE (FITTINGS ON BOTH ENDS)
    HOSE (FITTINGS ON BOTH ENDS)
  • 12
    25-89879 O RING
    O RING
  • 13
    32-9884339 HOSE (FITTINGS ON ONE END)
    HOSE (FITTINGS ON ONE END)
  • 14
    32-8M0062341 HOSE (53.00 In. Bulk) (Cut as Req'd)
    HOSE (53.00 In. Bulk) (Cut as Req'd)
  • 15
    54-180761 CLAMP
    CLAMP
  • 16
    10-825427 SCREW (.437-14 x 1.250)
    SCREW (.437-14 x 1.250)
  • 17
    99356A2 COOLER ASSEMBLY-Oil-Power Steering
    COOLER ASSEMBLY-Oil-Power Steering
  • 18
    63820F3 BRACKET (LONG)
    BRACKET (LONG)
  • 19
    563281 BRACKET (SHORT)
    BRACKET (SHORT)
  • 20
    10-49668 SCREW (.250-20 x .750)
    SCREW (.250-20 x .750)
  • 21
    13-26992 LOCKWASHER (.250)
    LOCKWASHER (.250)
  • 22
    54-848183 J CLIP-Power Steering Hose to Bracket
    J CLIP-Power Steering Hose to Bracket
  • 23
    54-42553 J CLIP-Power Steering Hose to Valve Cover
    J CLIP-Power Steering Hose to Valve Cover
  • 24
    12-45176 WASHER
    WASHER
