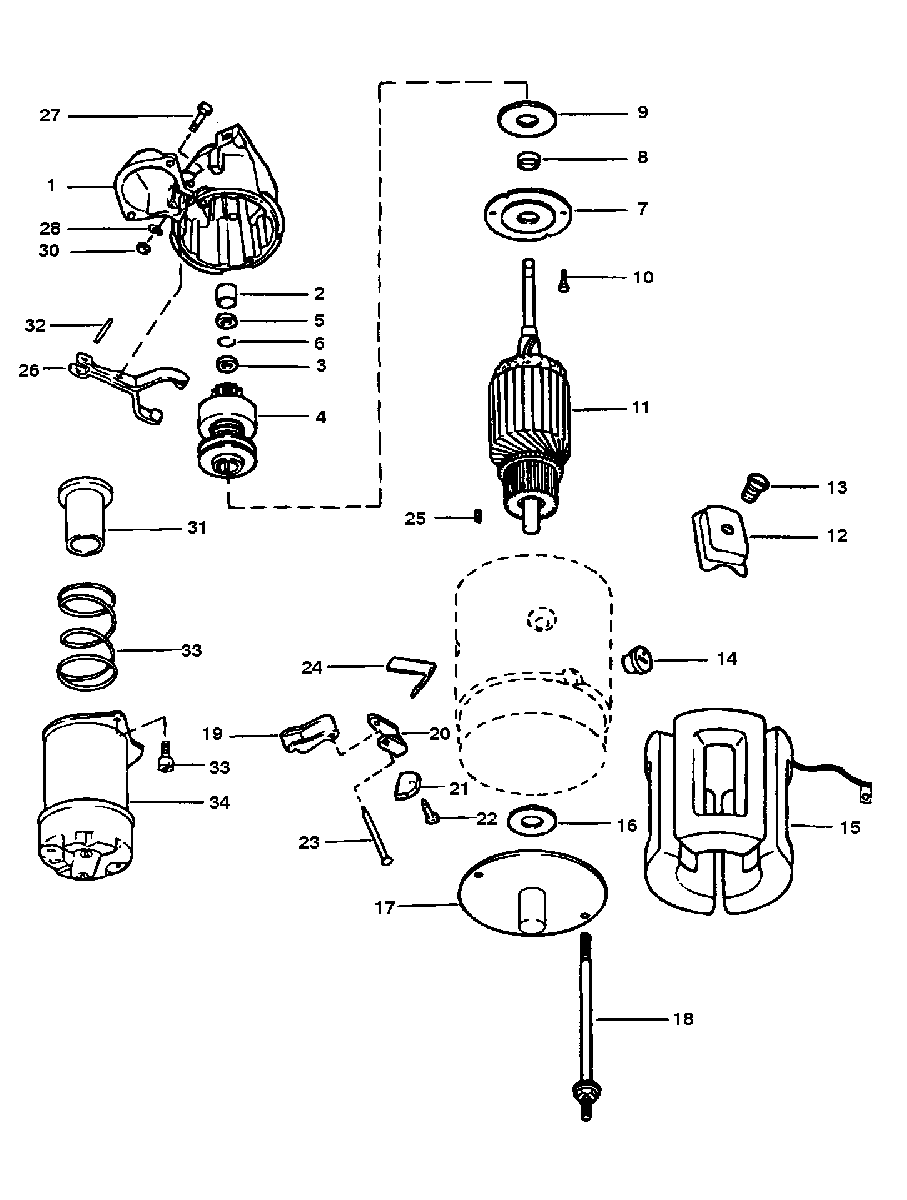

STARTER ASSEMBLY (50-17251A3) для Mercruiser - 450 (GEN. V) GM 454 V-8 1995-1996 0F347100 THRU 0F347277

  • №
    Артикул
    Название
  • -
    50-808011A05 STARTER ASSEMBLY
    (TRANSMISSION & DRIVELINE MODELS)
    STARTER ASSEMBLY
    (TRANSMISSION & DRIVELINE MODELS)
  • 1
    79206 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    23-33369 BUSHING-Drive End Housing
    BUSHING-Drive End Housing
  • 3
    23-809457 COLLAR-Thrust
    COLLAR-Thrust
  • 4
    53-33290 RING-Retaining-Pinion Stop Collar
    RING-Retaining-Pinion Stop Collar
  • 5
    33291 COLLAR-Pinion Stop
    COLLAR-Pinion Stop
  • 6
    68608 DRIVE ASSEMBLY-Clutch
    DRIVE ASSEMBLY-Clutch
  • 7
    79396 PLATE-Bearing
    PLATE-Bearing
  • 8
    23-71694 BUSHING-Bearing Plate
    BUSHING-Bearing Plate
  • 9
    12-68614 WASHER-Bearing Plate
    WASHER-Bearing Plate
  • 10
    10-79209 SCREW-Bearing
    SCREW-Bearing
  • 11
    68606 ARMATURE
    ARMATURE
  • 12
    NSS SHOE-Pole-Field Coil
    (Delco Remy #810601)
    SHOE-Pole-Field Coil
    (Delco Remy #810601)
  • 13
    NSS SCREW
    (Delco Remy #1968396)
    SCREW
    (Delco Remy #1968396)
  • 14
    NSS GROMMET-Field Coil
    (Delco Remy #1846097)
    GROMMET-Field Coil
    (Delco Remy #1846097)
  • 15
    NSS FIELD COIL ASSY
    (Delco Remy #1970467)
    FIELD COIL ASSY
    (Delco Remy #1970467)
  • 16
    NSS WASHER-Leather
    (Delco Remy #1985617)
    WASHER-Leather
    (Delco Remy #1985617)
  • 17
    79211 FRAME-Commutator End
    FRAME-Commutator End
  • 18
    NSS BOLT-Thru
    (Delco Remy #1939970)
    BOLT-Thru
    (Delco Remy #1939970)
  • 19
    33284 HOLDER-Insulated-Field Frame Brush
    HOLDER-Insulated-Field Frame Brush
  • 20
    33283 HOLDER-Field Frame Brush Ground
    HOLDER-Field Frame Brush Ground
  • 21
    33270 BRUSH-Field Frame
    BRUSH-Field Frame
  • 22
    NSS SCREW-Brush Lead
    (Delco Remy #1967747)
    SCREW-Brush Lead
    (Delco Remy #1967747)
  • 22
    NSS SCREW-Brush Lead
    (Delco Remy #443527)
    SCREW-Brush Lead
    (Delco Remy #443527)
  • 23
    33294 SUPPORT
    SUPPORT
  • 24
    24-33285 SPRING-Field Frame Brush
    SPRING-Field Frame Brush
  • 25
    NSS PIN-Dowel
    (Delco Remy #1985696)
    PIN-Dowel
    (Delco Remy #1985696)
  • 26
    33297 LEVER-Shift
    LEVER-Shift
  • 27
    NSS STUD-Shift Lever
    (Delco Remy #1814529)
    STUD-Shift Lever
    (Delco Remy #1814529)
  • 28
    12-68615 WASHER-Shift Lever Stud
    WASHER-Shift Lever Stud
  • 29
    11-26484 NUT (.312-18)
    NUT (.312-18)
  • 30
    33317 PLUNGER
    PLUNGER
  • 31
    17-79207 PIN-Plunger to Shift Lever
    PIN-Plunger to Shift Lever
  • 32
    24-46889 SPRING-Plunger Return
    SPRING-Plunger Return
  • 33
    NSS SCREW-Solenoid
    (Delco Remy #132255)
    SCREW-Solenoid
    (Delco Remy #132255)
  • 34
    89-18080 SOLENOID
    SOLENOID
