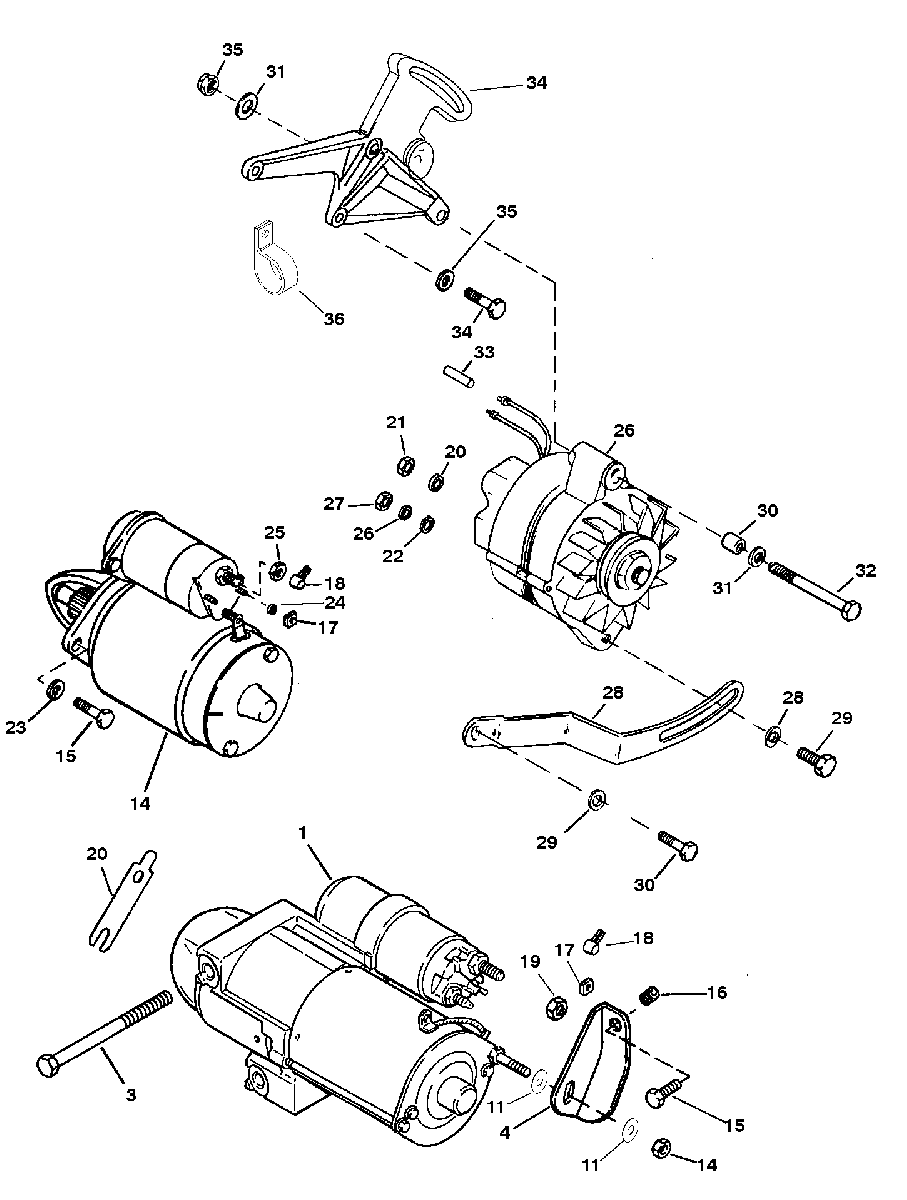

STARTER AND ALTERNATOR для Mercruiser - 450 (GEN. V) GM 454 V-8 1995-1996 0F347100 THRU 0F347277

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER ASS'Y (BRAVO PLUG-IN) (3.500In. Dia.)
    SEE STARTER ASSEMBLY (50-99418A2) (3.500in. Dia. End cap)
    STARTER ASS'Y (BRAVO PLUG-IN) (3.500In. Dia.)
    SEE STARTER ASSEMBLY (50-99418A2) (3.500in. Dia. End cap)
  • 1
    50-863007A1 STARTER ASS'Y (BRAVO PLUG-IN) (2.875 In. Dia.)
    SEE STARTER ASSEMBLY (50-806964A3) (2.875 in. dia.end cap)
    STARTER ASS'Y (BRAVO PLUG-IN) (2.875 In. Dia.)
    SEE STARTER ASSEMBLY (50-806964A3) (2.875 in. dia.end cap)
  • 2
    10-8053432 SCREW - SPECIAL
    SCREW - SPECIAL
  • 3
    89057 BRACE - (3.500 In. Starter)
    BRACE - (3.500 In. Starter)
  • 4
    12-29245 WASHER - (3.500 In. Starter)
    WASHER - (3.500 In. Starter)
  • 5
    11-8267098 NUT (10M) (3.500 In. Starter)
    NUT (10M) (3.500 In. Starter)
  • 6
    10-35765A1 SCREW & WASHER (.312-18 x .625) (3.500 In. Starter)
    SCREW & WASHER (.312-18 x .625) (3.500 In. Starter)
  • 7
    22-325611 PLUG - (3.50 In. Starter)
    PLUG - (3.50 In. Starter)
  • 8
    11-400211 NUT (5M)
    NUT (5M)
  • 9
    85-79695T BOOT - INSULATOR
    BOOT - INSULATOR
  • 10
    11-15874 NUT (10M) (3.500 In. Starter)
    NUT (10M) (3.500 In. Starter)
  • 10
    11-401388 NUT (8M) (2.875 In. Starter)
    NUT (8M) (2.875 In. Starter)
  • 10
    15-8172721 SHIM - SPECIAL
    SHIM - SPECIAL
  • 12
    50-808011A05 STARTER ASSEMBLY (DRIVELINE)
    SEE STARTER ASSEMBLY (50-17251A3)
    STARTER ASSEMBLY (DRIVELINE)
    SEE STARTER ASSEMBLY (50-17251A3)
  • 12
    50-808011A05 STARTER ASSEMBLY (DRIVELINE)
    SEE STARTER ASSEMBLY (50-808011A1)
    STARTER ASSEMBLY (DRIVELINE)
    SEE STARTER ASSEMBLY (50-808011A1)
  • 13
    10-47461 SCREW (.437-14 x1.00)
    SCREW (.437-14 x1.00)
  • 14
    13-32993 LOCKWASHER (.437)
    LOCKWASHER (.437)
  • 15
    13-26993 LOCKWASHER (.312)
    LOCKWASHER (.312)
  • 16
    11-4013610 NUT (M10)
    NUT (M10)
  • 17
    8M0084546 ALTERNATOR ASSEMBLY (BLUE)
    SEE ALTERNATOR (MANDO #AC-155603)
    ALTERNATOR ASSEMBLY (BLUE)
    SEE ALTERNATOR (MANDO #AC-155603)
  • 18
    13-26992 LOCKWASHER (.250)
    LOCKWASHER (.250)
  • 19
    11-8267098 NUT (.250-20)
    NUT (.250-20)
  • 20
    12-96457 WASHER
    WASHER
  • 21
    13-26996 LOCKWASHER ( #10)
    LOCKWASHER ( #10)
  • 22
    11-79989 NUT (#10-24)
    NUT (#10-24)
  • 23
    85013T BRACE - ALTERNATOR ADJUSTING
    BRACE - ALTERNATOR ADJUSTING
  • 24
    12-45176 WASHER
    WASHER
  • 25
    10-825427 SCREW (.437-14 x1.250)
    SCREW (.437-14 x1.250)
  • 26
    12-26168 WASHER
    WASHER
  • 27
    10-29198 SCREW (.375-24 x3.750)
    SCREW (.375-24 x3.750)
  • 28
    23-33186 BUSHING
    BUSHING
  • 29
    12-20553 WASHER
    WASHER
  • 30
    10-48308 SCREW (.375-24 x3.750)
    SCREW (.375-24 x3.750)
  • 31
    5790811 SLEEVE - ALTERNATOR LEAD
    SLEEVE - ALTERNATOR LEAD
  • 32
    848146T BRACKET - ALTERNATOR MOUNT
    BRACKET - ALTERNATOR MOUNT
  • 33
    12-45176 WASHER
    WASHER
  • 34
    10-99204 SCREW (.437-14 x1.00)
    SCREW (.437-14 x1.00)
  • 34
    10-825427 SCREW (.437-14 x 1.250)
    SCREW (.437-14 x 1.250)
  • 35
    11-23161 NUT (.375-24)
    NUT (.375-24)
  • 36
    54-848130 CLIP - HOSE CIRCULATING PUMP
    CLIP - HOSE CIRCULATING PUMP
