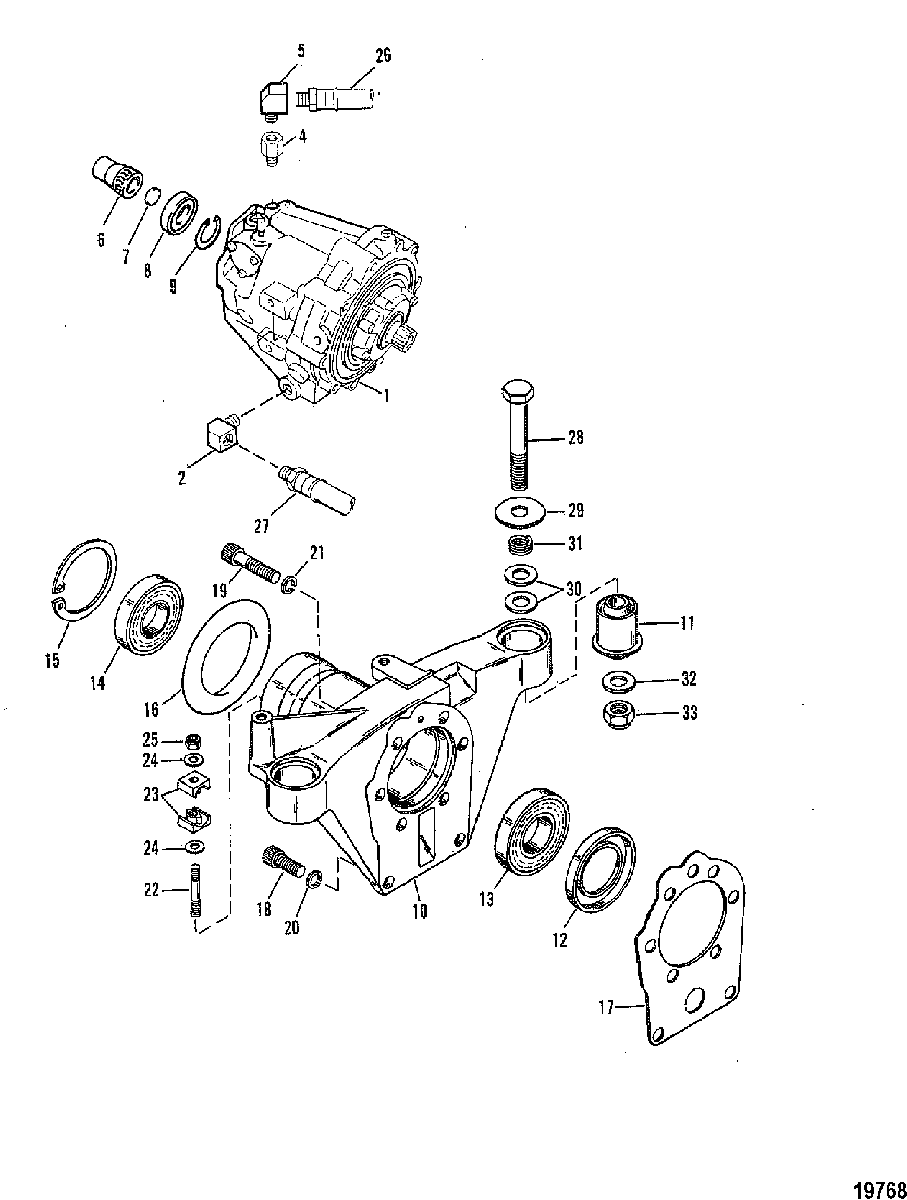

Transmission Assembly(S/N-5670317 & Up для Mercruiser - 400 TRS GM 454 V-8 1980-1986 4179554 THRU 0B457644
-
№АртикулНазвание
-
147754A9 TRANSMISSION ASSEMBLY
(47754A3-M/C III ONLY)TRANSMISSION ASSEMBLY
(47754A3-M/C III ONLY) -
222-47629 ELBOW, 90 Degree, TRANSMISSION TO OIL HOSEELBOW, 90 Degree, TRANSMISSION TO OIL HOSE
-
422-88517 FITTING, ReducingFITTING, Reducing
-
522-47631 ELBOW, TRANSMISSION TO OIL HOSEELBOW, TRANSMISSION TO OIL HOSE
-
657758A2 COUPLING ASSEMBLY
(47339A4-M/C III ONLY )COUPLING ASSEMBLY
(47339A4-M/C III ONLY ) -
719-47463 EXPANSION PLUG, EXPANSION-ENGINE COUPLINGEXPANSION PLUG, EXPANSION-ENGINE COUPLING
-
830-47470 BEARING, Ball, ENGINE COUPLINGBEARING, Ball, ENGINE COUPLING
-
953-47469 RING, SNAP-BALL BEARING TO ENGINE COUPLINGRING, SNAP-BALL BEARING TO ENGINE COUPLING
-
1098322A2 TAILSTOCK ASSEMBLY
(4733A1-M/C III ONLY)TAILSTOCK ASSEMBLY
(4733A1-M/C III ONLY) -
1135852 MOUNT, RUBBER-TAILSTOCKMOUNT, RUBBER-TAILSTOCK
-
1226-47465 SEAL, Oil, TAILSTOCKSEAL, Oil, TAILSTOCK
-
1330-57762T BEARING, Ball (3.156), TAILSTOCK (3-5/32" O.D.)BEARING, Ball (3.156), TAILSTOCK (3-5/32" O.D.)
-
1430-32537T BEARING, Ball (2.843), TAILSTOCK (2-27/32" O.D.)BEARING, Ball (2.843), TAILSTOCK (2-27/32" O.D.)
-
1553-54481 RING, SNAP-BALL BEARING TO TAILSTOCKRING, SNAP-BALL BEARING TO TAILSTOCK
-
1625-54067 SEAL, TAILSTOCKSEAL, TAILSTOCK
-
1727-47903 GASKET, TAILSTOCKGASKET, TAILSTOCK
-
1810-29081 SCREW, (.437-14 x 1.250), TAILSTOCK TO TRANSMISSIONSCREW, (.437-14 x 1.250), TAILSTOCK TO TRANSMISSION
-
1910-99524 SCREW, (.437-14 x 2.00), TAILSTOCK TO TRANSMISSIONSCREW, (.437-14 x 2.00), TAILSTOCK TO TRANSMISSION
-
2013-30381 LOCKWASHER, Hi Collar (.437), TAILSTOCK SCREWLOCKWASHER, Hi Collar (.437), TAILSTOCK SCREW
-
2113-32993 LOCKWASHER, (.437), TAILSTOCK SCREWLOCKWASHER, (.437), TAILSTOCK SCREW
-
2216-99801 STUD, CLUMP BLOCKSTUD, CLUMP BLOCK
-
2341058 CLAMP BLOCK, SHIFT CABLECLAMP BLOCK, SHIFT CABLE
-
2412-69056 WASHER, (.255 x .620 x .030) Stainless Steel, CLAMP BLOCK STUDWASHER, (.255 x .620 x .030) Stainless Steel, CLAMP BLOCK STUD
-
2511-35888 NUT, (.250-28) Stainless Steel, CLAMP BLOCK STUDNUT, (.250-28) Stainless Steel, CLAMP BLOCK STUD
-
2632-4751612 HOSE, TRANSMISSION TO OIL COOLER (16-3/4")HOSE, TRANSMISSION TO OIL COOLER (16-3/4")
-
2732-475163 HOSE, TRANSMISSION TO OIL COOLER (7-7/8")HOSE, TRANSMISSION TO OIL COOLER (7-7/8")
-
2810-47467 SCREW, (.625-18 x 5.500), TAILSTOCK TO INNER TRANSOM PLATESCREW, (.625-18 x 5.500), TAILSTOCK TO INNER TRANSOM PLATE
-
2912-47475 WASHER, (1.120 x 2.250 x .19)WASHER, (1.120 x 2.250 x .19)
-
3012-47466 WASHER, (1.125 x 1.750 x .16)WASHER, (1.125 x 1.750 x .16)
-
3113-34846 LOCKWASHER, Thackeray Spring (.636)LOCKWASHER, Thackeray Spring (.636)
-
3212-33171 WASHER, (.6406 x 1.750 x .125)WASHER, (.6406 x 1.750 x .125)
-
3311-22339 NUT, (.625-18)NUT, (.625-18)
