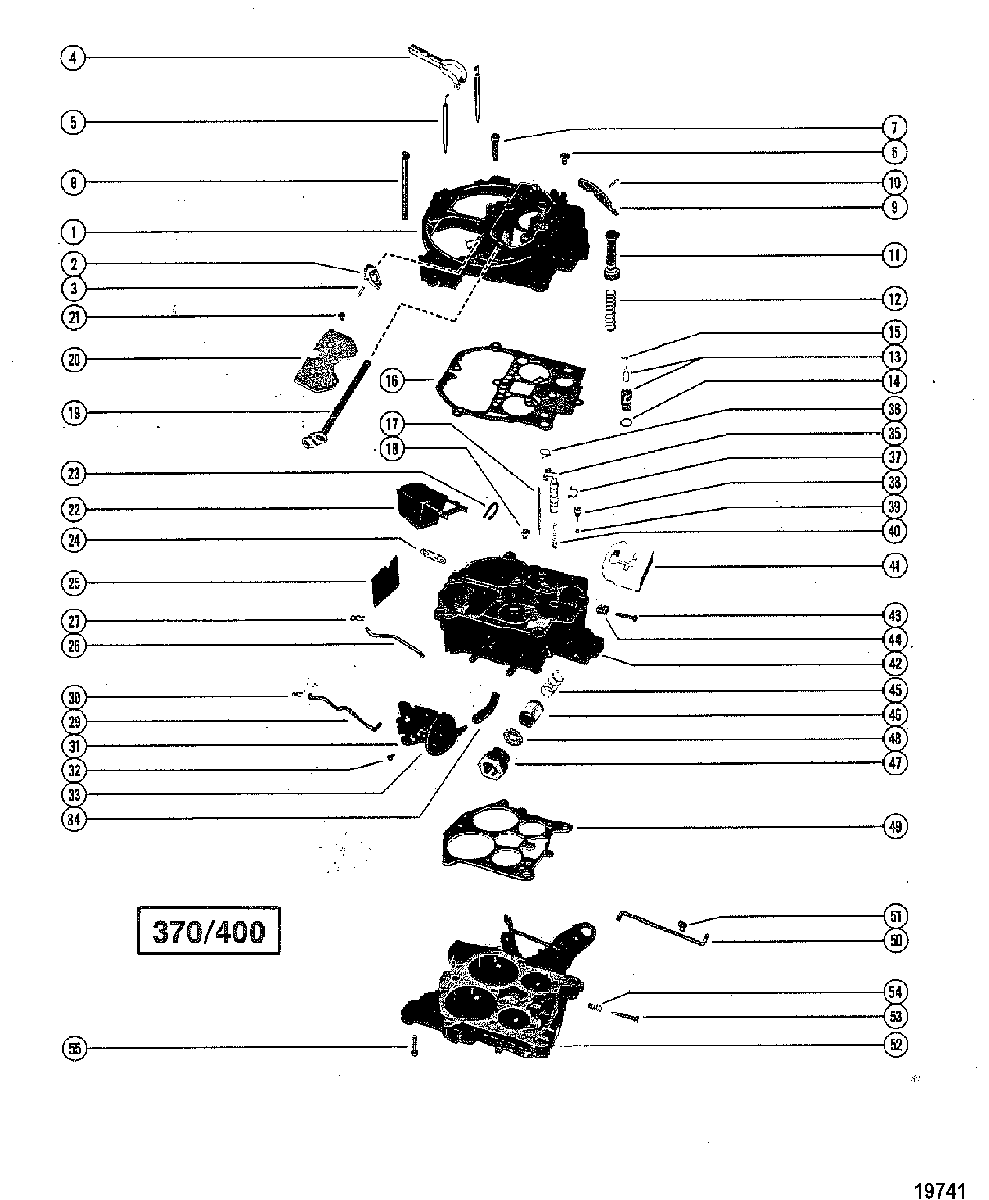

Carburetor Assembly(370/400) для Mercruiser - 400 TRS GM 454 V-8 1980-1986 4179554 THRU 0B457644

  • №
    Артикул
    Название
  • -
    1347-804625R02 CARBURETOR ASSMEBLY, COMPLETE
    CARBURETOR ASSMEBLY, COMPLETE
  • 1
    N.S.S. Not Sold Separate, Air Horn Assembly (ROCHESTER #17051603)
    Not Sold Separate, Air Horn Assembly (ROCHESTER #17051603)
  • 2
    N.S.S. Not Sold Separate, Lever-Air Valve Lockout (ROCHESTER #7037968)
    Not Sold Separate, Lever-Air Valve Lockout (ROCHESTER #7037968)
  • 3
    N.S.S. Not Sold Separate, Roll Pin-Lockout Lever
    Not Sold Separate, Roll Pin-Lockout Lever
  • 4
    N.S.S. Not Sold Separate, Holder Kit-Sec. Metering Rod (ROCHESTER #7034522)
    Not Sold Separate, Holder Kit-Sec. Metering Rod (ROCHESTER #7034522)
  • 5
    N.S.S. Not Sold Separate, Metering Rod-Secondary (ROCHESTER #7046010)
    Not Sold Separate, Metering Rod-Secondary (ROCHESTER #7046010)
  • 6
    N.S.S. Not Sold Separate, Screw-Air Horn to Float Bowl (3/8')(ROCHESTER #7031105)
    Not Sold Separate, Screw-Air Horn to Float Bowl (3/8')(ROCHESTER #7031105)
  • 7
    N.S.S. Not Sold Separate, Screw-Air Horn to Float Bowl (1')(ROCHESTER #7014699)
    Not Sold Separate, Screw-Air Horn to Float Bowl (1')(ROCHESTER #7014699)
  • 8
    N.S.S. Not Sold Separate, AIR HORN TO FLOAT BOWL (3')(ROCHESTER #7029912)
    Not Sold Separate, AIR HORN TO FLOAT BOWL (3')(ROCHESTER #7029912)
  • 9
    N.S.S. Not Sold Separate, Lever-Actuating-Pump (ROCHESTER #7048169)
    Not Sold Separate, Lever-Actuating-Pump (ROCHESTER #7048169)
  • 10
    N.S.S. Not Sold Separate, Roll Pin-Hinge-Pump Lever
    Not Sold Separate, Roll Pin-Hinge-Pump Lever
  • 11
    N.S.S. Not Sold Separate, Pump Assembly
    Not Sold Separate, Pump Assembly
  • 12
    N.S.S. Not Sold Separate, Spring-Pump Return
    Not Sold Separate, Spring-Pump Return
  • 13
    N.S.S. Not Sold Separate, Needle and Seat Assembly
    Not Sold Separate, Needle and Seat Assembly
  • 14
    N.S.S. Not Sold Separate, Gasket-Needle and Seat
    Not Sold Separate, Gasket-Needle and Seat
  • 15
    N.S.S. Not Sold Separate, Pull Clip-Float Needle
    Not Sold Separate, Pull Clip-Float Needle
  • 16
    N.S.S. Not Sold Separate, Gasket-Air Horn
    Not Sold Separate, Gasket-Air Horn
  • 17
    N.S.S. Not Sold Separate, Metering Rod-Primary
    Not Sold Separate, Metering Rod-Primary
  • 18
    N.S.S. Not Sold Separate, Jet-Primary
    Not Sold Separate, Jet-Primary
  • 19
    N.S.S. Not Sold Separate, Choke Shaft & Lever (ROCHESTER #7036059)
    Not Sold Separate, Choke Shaft & Lever (ROCHESTER #7036059)
  • 20
    N.S.S. Not Sold Separate, Valve-Choke-Choke Shaft (ROCHESTER #7036021)
    Not Sold Separate, Valve-Choke-Choke Shaft (ROCHESTER #7036021)
  • 21
    N.S.S. Not Sold Separate, Screw-Choke Valve to Choke Shaft (ROCHESTER #7029866)
    Not Sold Separate, Screw-Choke Valve to Choke Shaft (ROCHESTER #7029866)
  • 22
    1397-3327 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 23
    N.S.S. Not Sold Separate, Pin-Hinge-Float (ROCHESTER #7029856)
    Not Sold Separate, Pin-Hinge-Float (ROCHESTER #7029856)
  • 24
    N.S.S. Not Sold Separate, Lever-Intermediate Choke (ROCHESTER #7031231)
    Not Sold Separate, Lever-Intermediate Choke (ROCHESTER #7031231)
  • 25
    N.S.S. Not Sold Separate, Baffle-Float Bowl (ROCHESTER #703136)
    Not Sold Separate, Baffle-Float Bowl (ROCHESTER #703136)
  • 26
    N.S.S. Not Sold Separate, Rod-Choke (ROCHESTER #7031394)
    Not Sold Separate, Rod-Choke (ROCHESTER #7031394)
  • 27
    N.S.S. Not Sold Separate, Clip-Choke Rod
    Not Sold Separate, Clip-Choke Rod
  • 29
    N.S.S. Not Sold Separate, Rod-Vacuum Control (ROCHESTER #7038167)
    Not Sold Separate, Rod-Vacuum Control (ROCHESTER #7038167)
  • 30
    N.S.S. Not Sold Separate, Clip-Vacuum Control Rod
    Not Sold Separate, Clip-Vacuum Control Rod
  • 31
    N.S.S. Not Sold Separate, Bracket Assembly-Vacuum Control (ROCHESTER #7060265)
    Not Sold Separate, Bracket Assembly-Vacuum Control (ROCHESTER #7060265)
  • 32
    N.S.S. Not Sold Separate, Screw-Vacuum Control Bracket/Float Bowl (ROCHESTER #7031925)
    Not Sold Separate, Screw-Vacuum Control Bracket/Float Bowl (ROCHESTER #7031925)
  • 33
    1397-3317 CONTROL ASSEMBLY, VACUUM
    CONTROL ASSEMBLY, VACUUM
  • 34
    N.S.S. Not Sold Separate, Hose-Vacuum (ROCHESTER #7026339)
    Not Sold Separate, Hose-Vacuum (ROCHESTER #7026339)
  • 35
    N.S.S. Not Sold Separate, Power Piston Assembly (ROCHESTER #7034637)
    Not Sold Separate, Power Piston Assembly (ROCHESTER #7034637)
  • 36
    N.S.S. Not Sold Separate, Spring-Metering Rod-Primary (ROCHESTER #7029862)
    Not Sold Separate, Spring-Metering Rod-Primary (ROCHESTER #7029862)
  • 37
    N.S.S. Not Sold Separate, Retainer-Power Piston (ROCHESTER #7034339)
    Not Sold Separate, Retainer-Power Piston (ROCHESTER #7034339)
  • 38
    N.S.S. Not Sold Separate, Retainer-Pump Discharge Ball (ROCHESTER #7029849)
    Not Sold Separate, Retainer-Pump Discharge Ball (ROCHESTER #7029849)
  • 39
    N.S.S. Not Sold Separate, Ball-Pump Discharge
    Not Sold Separate, Ball-Pump Discharge
  • 40
    N.S.S. Not Sold Separate, Spring-Power Piston (ROCHESTER #7034361)
    Not Sold Separate, Spring-Power Piston (ROCHESTER #7034361)
  • 41
    N.S.S. Not Sold Separate, Insert-Float Bowl (ROCHESTER #7034361)
    Not Sold Separate, Insert-Float Bowl (ROCHESTER #7034361)
  • 42
    N.S.S. Not Sold Separate, Float Bowl Assembly
    Not Sold Separate, Float Bowl Assembly
  • 43
    N.S.S. Not Sold Separate, Screw-Idler Stop
    Not Sold Separate, Screw-Idler Stop
  • 44
    N.S.S. Not Sold Separate, Spring-Idle Stop Screw (ROCHESTER #7003176)
    Not Sold Separate, Spring-Idle Stop Screw (ROCHESTER #7003176)
  • 45
    3302-9032 SPRING, FILTER NUT
    SPRING, FILTER NUT
  • 46
    35-53336Q STRAINER, FUEL INLET
    STRAINER, FUEL INLET
  • 47
    1397-3330 NUT, FILTER-FUEL INLET
    NUT, FILTER-FUEL INLET
  • 48
    N.S.S. Not Sold Separate, Gasket-Filter Nut
    Not Sold Separate, Gasket-Filter Nut
  • 49
    N.S.S. Not Sold Separate, Gasket-Throttle Body
    Not Sold Separate, Gasket-Throttle Body
  • 50
    N.S.S. Not Sold Separate, Rod-Pump (ROCHESTER #7026138)
    Not Sold Separate, Rod-Pump (ROCHESTER #7026138)
  • 51
    N.S.S. Not Sold Separate, Clip-Pump Rod
    Not Sold Separate, Clip-Pump Rod
  • 52
    N.S.S. Not Sold Separate, Throttle Body Assembly (ROCHESTER #7044819)
    Not Sold Separate, Throttle Body Assembly (ROCHESTER #7044819)
  • 53
    N.S.S. Not Sold Separate, Idle Needle-Throttle Body
    Not Sold Separate, Idle Needle-Throttle Body
  • 54
    24-87734 SPRING, IDLE NEEDLE
    SPRING, IDLE NEEDLE
  • 55
    N.S.S. Not Sold Separate, Screw-Throttle Body to Float Bowl (ROCHESTER #703570)
    Not Sold Separate, Screw-Throttle Body to Float Bowl (ROCHESTER #703570)
  • -
    N.S.S. Not Sold Separate, Spring and Cam Kit-Air Valve (ROCHESTER #7035344)
    Not Sold Separate, Spring and Cam Kit-Air Valve (ROCHESTER #7035344)
  • -
    823426A1 OVERHAUL KIT
    OVERHAUL KIT
  • -
    823426A1 GASKET SET
    GASKET SET
  • -
    823426A1 OVERHAUL KIT
    OVERHAUL KIT
