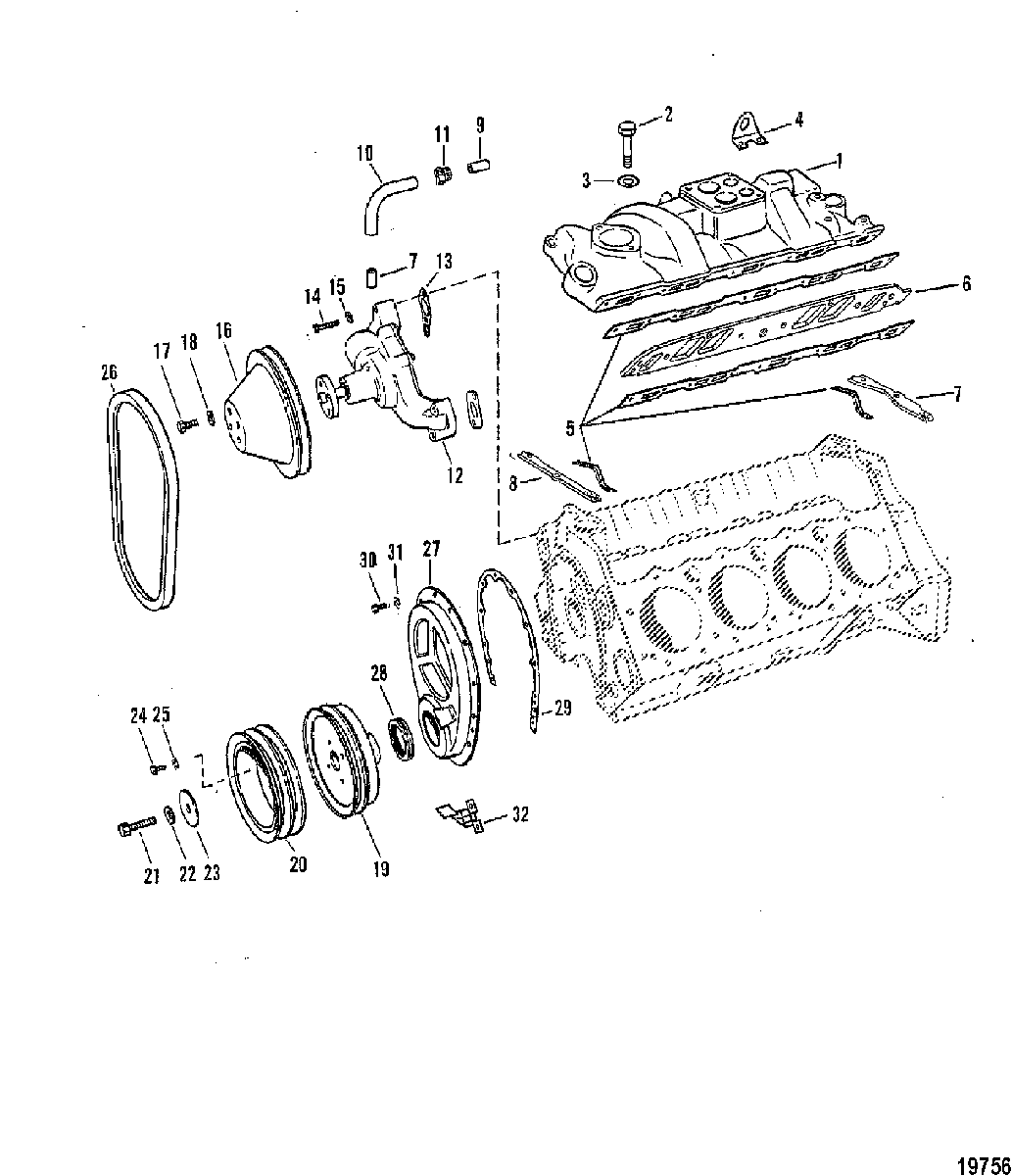

Intake Manifold and Front Cover(460) для Mercruiser - 400 TRS GM 454 V-8 1980-1986 4179554 THRU 0B457644

  • №
    Артикул
    Название
  • 1
    42291 MANIFOLD, Intake
    MANIFOLD, Intake
  • 2
    10-358701 SCREW, (.375-16 x 2), INTAKE MANIFOLD
    SCREW, (.375-16 x 2), INTAKE MANIFOLD
  • 2
    10-35787 SCREW, (.375-16 x 2.250), INTAKE MANIFOLD
    SCREW, (.375-16 x 2.250), INTAKE MANIFOLD
  • 3
    12-856774 WASHER, (.406 x .750 x .104), INTAKE MANIFOLD SCREW
    WASHER, (.406 x .750 x .104), INTAKE MANIFOLD SCREW
  • 3
    13-35048 LOCKWASHER, (.375), INTAKE MANIFOLD SCREW
    LOCKWASHER, (.375), INTAKE MANIFOLD SCREW
  • 4
    54-64628 LIFTING EYE
    LIFTING EYE
  • 5
    27-98086A1 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 6
    54637 ADAPTOR PLATE (SIDE)
    ADAPTOR PLATE (SIDE)
  • 7
    54636 ADAPTOR PLATE ASSEMBLY (REAR)
    ADAPTOR PLATE ASSEMBLY (REAR)
  • 8
    54635 ADAPTOR PLATE (FRONT)
    ADAPTOR PLATE (FRONT)
  • 9
    22-806242 CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD
    CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD
  • 10
    32-99520 HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD
    HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD
  • 11
    54-815504412 CLAMP, BY-PASS HOSE
    CLAMP, BY-PASS HOSE
  • 12
    46-8M0113735 PUMP, Water
    PUMP, Water
  • 13
    27-49110 GASKET, Circulating Water Pump Mount
    GASKET, Circulating Water Pump Mount
  • 14
    10-32132 SCREW, (.375-16 x 1.750), WATER PUMP TO CYLINDER BLOCK
    SCREW, (.375-16 x 1.750), WATER PUMP TO CYLINDER BLOCK
  • 15
    13-35048 LOCKWASHER, (.375), WATER PUMP SCREW
    LOCKWASHER, (.375), WATER PUMP SCREW
  • 16
    52349 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 17
    10-47277 SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
    SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
  • 18
    13-39107 LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
    LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
  • 19
    72605T1 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 20
    52181 PULLEY, HARMONIC BALANCER
    PULLEY, HARMONIC BALANCER
  • 21
    10-14758 BOLT, PULLEY AND HARMONIC BALANCER
    BOLT, PULLEY AND HARMONIC BALANCER
  • 22
    13-14759 LOCKWASHER
    LOCKWASHER
  • 23
    12-49103 WASHER, PULLEY AND BALANCER BOLT
    WASHER, PULLEY AND BALANCER BOLT
  • 24
    10-34353 SCREW, (.375-16 x 1.00), PULLEY
    SCREW, (.375-16 x 1.00), PULLEY
  • 25
    13-35048 LOCKWASHER, (.375), PULLEY BOLT
    LOCKWASHER, (.375), PULLEY BOLT
  • 26
    57-48122Q BELT, (48 Inches), ALTERNATOR DRIVE (48")
    BELT, (48 Inches), ALTERNATOR DRIVE (48")
  • 27
    66215 COVER ASSEMBLY, CRANKCASE
    COVER ASSEMBLY, CRANKCASE
  • 28
    26-8219471 SEAL, Oil, CRANKCASE COVER
    SEAL, Oil, CRANKCASE COVER
  • 29
    27-54529 GASKET, Timing Cover
    GASKET, Timing Cover
  • 30
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, CRANKCASE COVER TO BLOCK
    SCREW, (.250-20 x .620) Stainless Steel, CRANKCASE COVER TO BLOCK
  • 31
    13-26992 LOCKWASHER, (.250) Stainless Steel, COVER SCREW
    LOCKWASHER, (.250) Stainless Steel, COVER SCREW
  • 32
    59966 POINTER, TIMING
    POINTER, TIMING
  • -
    27-99386A2 GASKET SET
    GASKET SET
