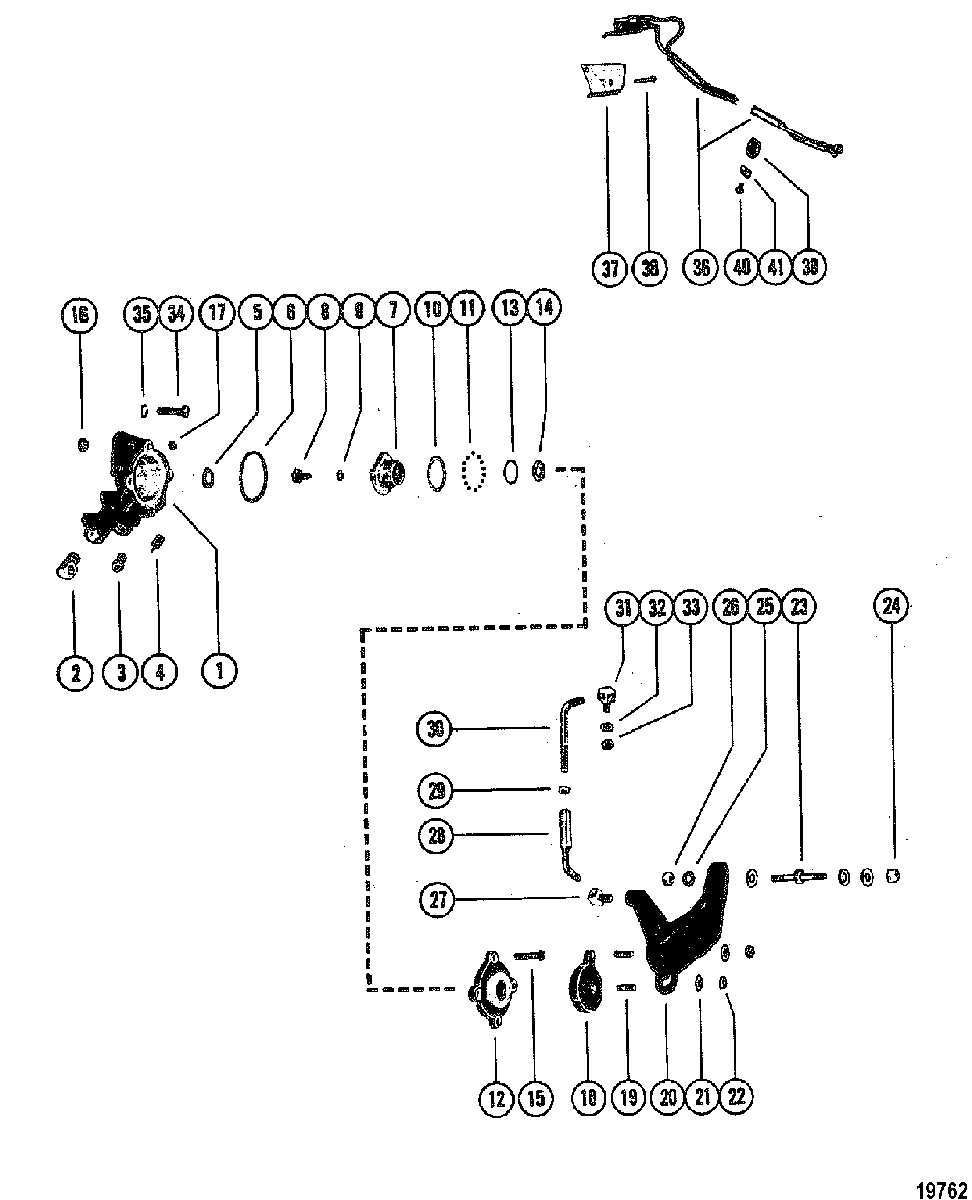

Reverse Lock Valve(S/N-5670316 & Below) для Mercruiser - 400 TRS GM 454 V-8 1980-1986 4179554 THRU 0B457644
-
№АртикулНазвание
-
176812T4 VALVE ASSEMBLY, Reverse LockVALVE ASSEMBLY, Reverse Lock
-
222-45794 ELBOW, HYDRAULIC TRIM HOSEELBOW, HYDRAULIC TRIM HOSE
-
322-48167 CONNECTOR, ELBOWCONNECTOR, ELBOW
-
445709 FOLLOWER, CAMFOLLOWER, CAM
-
513-25906 WASHER, WAVE - REVERSE LOCK VALVEWASHER, WAVE - REVERSE LOCK VALVE
-
625-457101 O-RING, (1.424 x .103), REVERSE LOCK VALVEO-RING, (1.424 x .103), REVERSE LOCK VALVE
-
745526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
810-46736 SCREW, (0.5 In.), CAM TO CAM LEVER (1/2')SCREW, (0.5 In.), CAM TO CAM LEVER (1/2')
-
913-26996 LOCKWASHER, (#10) Stainless Steel, CAM SCREWLOCKWASHER, (#10) Stainless Steel, CAM SCREW
-
1012-45713 WASHER, RETAINING - BALL TO VALVE COVERWASHER, RETAINING - BALL TO VALVE COVER
-
1130-45712 BALL, VALVE COVERBALL, VALVE COVER
-
1245528A2 COVER, REVERSE LOCK VALVECOVER, REVERSE LOCK VALVE
-
1325-45711 O-RING, (.612 x .103), VALVE COVERO-RING, (.612 x .103), VALVE COVER
-
1412-59570 WASHER, VALVE COVERWASHER, VALVE COVER
-
1510-45716 SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVESCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE
-
1611-20110 NUT, (#10-32), COVER SCREWNUT, (#10-32), COVER SCREW
-
1722-390721 PLUG, (1/8 Inch Brass), PIPE - REVERSE LOCK VALVEPLUG, (1/8 Inch Brass), PIPE - REVERSE LOCK VALVE
-
1846732A1 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
1916-45715 STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVER (23/32")STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVER (23/32")
-
2047346T LEVER, SHIFT - CAM LEVERLEVER, SHIFT - CAM LEVER
-
2112-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
2211-20110 NUT, (#10-32), SHIFT CONTROL LEVERNUT, (#10-32), SHIFT CONTROL LEVER
-
2316-34069 STUD, SHIFT CABLE TO SHIFT LEVER (2-1/4")STUD, SHIFT CABLE TO SHIFT LEVER (2-1/4")
-
2411-8267089 NUT, (.250-28), SHIFT CABLE STUDNUT, (.250-28), SHIFT CABLE STUD
-
2512-39143 WASHER, (.253 x .625 x .0937), SHIFT CABLE STUDWASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
-
2611-8267089 NUT, (.250-28), SHIFT CABLE STUD TO SHIFT LEVERNUT, (.250-28), SHIFT CABLE STUD TO SHIFT LEVER
-
2727947 SWIVEL, LINK ROD TO SHIFT LEVERSWIVEL, LINK ROD TO SHIFT LEVER
-
2825996A1 SWIVEL AND LINK ROD ASSEMBLYSWIVEL AND LINK ROD ASSEMBLY
-
2911-25168 NUT, (.250-28), JAM - LINK RODNUT, (.250-28), JAM - LINK ROD
-
3038982 LINK ROD, SHIFT LEVERLINK ROD, SHIFT LEVER
-
3147459 SWIVEL, LINK ROD TO TRANSMISSION SHIFT LEVERSWIVEL, LINK ROD TO TRANSMISSION SHIFT LEVER
-
3212-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, LINK ROD SWIVELWASHER, (.192 x .375 x .0312) Stainless Steel, LINK ROD SWIVEL
-
3311-20110 NUT, (#10-32), LINK ROD SWIVELNUT, (#10-32), LINK ROD SWIVEL
-
3410-25299 SCREW, (.312-18 x .75), REV. LOCK VALVESCREW, (.312-18 x .75), REV. LOCK VALVE
-
3513-21804 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
3646482A2 SWITCH ASSEMBLY, CUT-OUT- REVERSE LOCK VALVESWITCH ASSEMBLY, CUT-OUT- REVERSE LOCK VALVE
-
3745717 SHIELD, CUT-OUT SWITCHSHIELD, CUT-OUT SWITCH
-
3810-36003 SCREW, SHIELD & SWITCH (3/4")SCREW, SHIELD & SWITCH (3/4")
-
3954-24836 CLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATECLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATE
-
4010-21643 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHINGSCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING
-
418M0084613 C WASHER, CLIP ATTACHING SCREWC WASHER, CLIP ATTACHING SCREW
