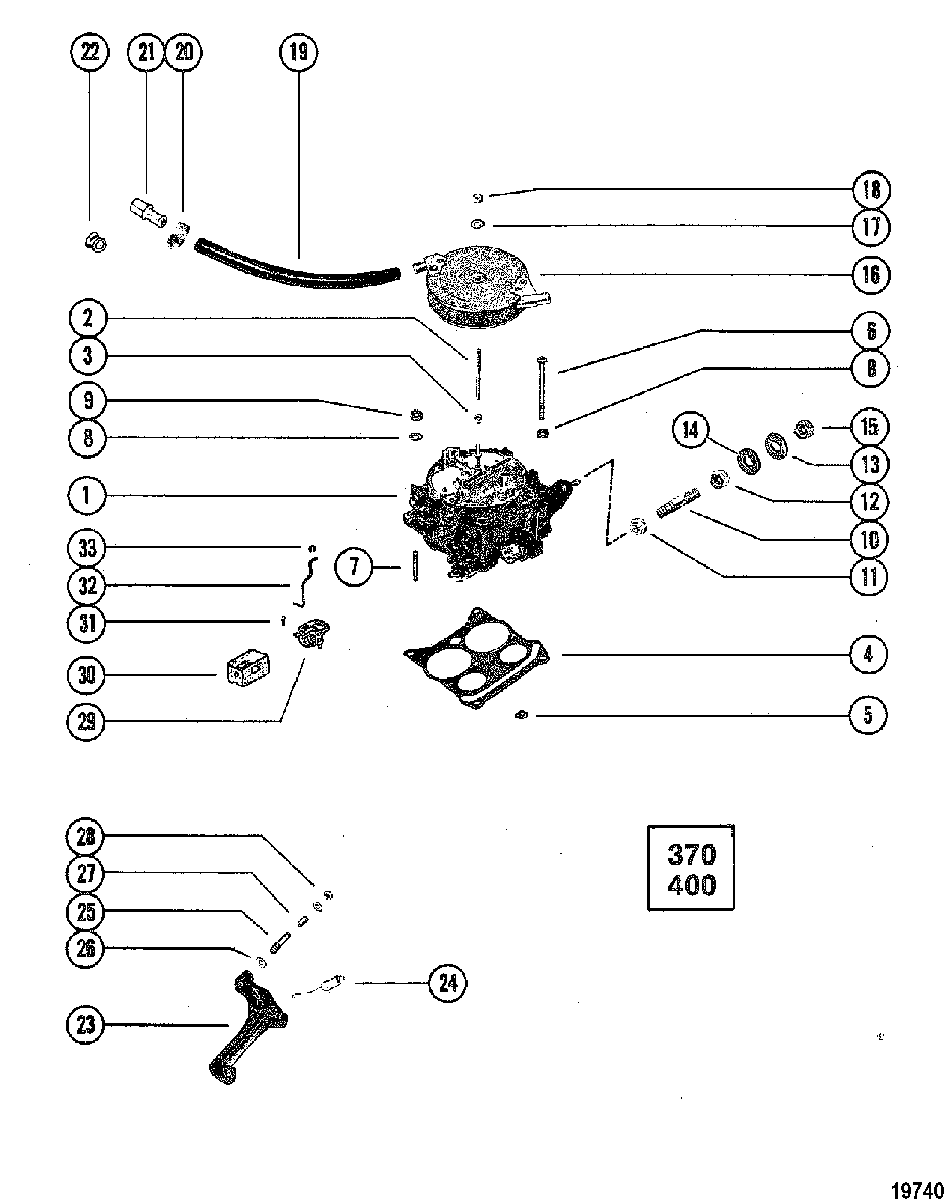

Carburetor and Automatic Choke(370/400) для Mercruiser - 400 TRS GM 454 V-8 1980-1986 4179554 THRU 0B457644

  • №
    Артикул
    Название
  • 1
    1347-804625R02 CARBURETOR ASSMEBLY
    CARBURETOR ASSMEBLY
  • 2
    16-57835 STUD, (.250-20/.250-28 x 4.440), FLAME ARRESTOR
    STUD, (.250-20/.250-28 x 4.440), FLAME ARRESTOR
  • 2
    16-95117 STUD, FLAME ARRESTOR (5.40')
    STUD, FLAME ARRESTOR (5.40')
  • 3
    11-8267139 NUT, JAM - FLAME ARRESTOR
    NUT, JAM - FLAME ARRESTOR
  • 4
    27-524572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 5
    22-36373 PLUG, (.375-18) Hex - Steel, INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375-18) Hex - Steel, INTAKE MANIFOLD VACUUM HOLE
  • 6
    10-74822 SCREW, (3.5 In.), CARBURETOR MOUNTING (3-1/2')
    SCREW, (3.5 In.), CARBURETOR MOUNTING (3-1/2')
  • 7
    16-46857 STUD, (5/16 x 1-7/8), CARBURETOR MOUNTING (1-7/8')
    STUD, (5/16 x 1-7/8), CARBURETOR MOUNTING (1-7/8')
  • 8
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR MOUNTING
    WASHER, (.328 x .562 x .062), CARBURETOR MOUNTING
  • 9
    11-29250 NUT, (.312-24), CARBURETOR MOUNTING STUD
    NUT, (.312-24), CARBURETOR MOUNTING STUD
  • 10
    16-728091 STUD, (.250-20/.250-28 x 1.620), THROTTLE CABLE TO CARBURETOR
    STUD, (.250-20/.250-28 x 1.620), THROTTLE CABLE TO CARBURETOR
  • 11
    11-826709109 NUT, (.250-28), STUD TO THROTTLE LEVER
    NUT, (.250-28), STUD TO THROTTLE LEVER
  • 12
    11-21825 NUT, (.250-28), STUD TO THROTTLE LEVER
    NUT, (.250-28), STUD TO THROTTLE LEVER
  • 13
    23-53811 SPACER
    SPACER
  • 14
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
  • 15
    11-8267098 NUT, (.250-20), THROTTLE CABLE STUD
    NUT, (.250-20), THROTTLE CABLE STUD
  • 16
    805298A1 FLAME ARRESTOR
    (Use with Sight Glass)
    FLAME ARRESTOR
    (Use with Sight Glass)
  • 16
    95950 FLAME ARRESTOR
    (Use with Sight Tube)
    FLAME ARRESTOR
    (Use with Sight Tube)
  • 17
    12-22937 WASHER, FLAME ARRESTOR STUD
    WASHER, FLAME ARRESTOR STUD
  • 18
    11-8267089 NUT, (.250-28), FLAME ARRESTOR STUD
    NUT, (.250-28), FLAME ARRESTOR STUD
  • 19
    32-8M0062669 HOSE, VENT - CARBURETOR (11')
    HOSE, VENT - CARBURETOR (11')
  • 20
    54-53101 CLAMP, CENT HOSE ATTACHING
    CLAMP, CENT HOSE ATTACHING
  • 21
    47957 CONNECTOR
    SN# 05670298 & Below
    CONNECTOR
    SN# 05670298 & Below
  • 22
    N.S.S. Not Sold Separate, GROMMET-ROCKER COVER (GH #3989347)
    Not Sold Separate, GROMMET-ROCKER COVER (GH #3989347)
  • 23
    47502A2 BRACKET, MOUNTING - THROTTLE CABLE
    BRACKET, MOUNTING - THROTTLE CABLE
  • 24
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 25
    16-35897 STUD, (1 11/16), THROTTLE CABLE TO MOUNTING BRACKET (1-11/16')
    STUD, (1 11/16), THROTTLE CABLE TO MOUNTING BRACKET (1-11/16')
  • 26
    12-69056 WASHER, (.255 x .625 x .0312), THROTTLE CABLE STUD
    WASHER, (.255 x .625 x .0312), THROTTLE CABLE STUD
  • 27
    23-31866 SPACER, (.256 x .313 x .625), THROTTLE CABLE STUD
    SPACER, (.256 x .313 x .625), THROTTLE CABLE STUD
  • 28
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 29
    66205 CHOKE, AUTOMATIC - CARBURETOR
    CHOKE, AUTOMATIC - CARBURETOR
  • 30
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 31
    10-69235 SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT (5/8')
    SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT (5/8')
  • 32
    72468 CHOKE ROD, AUTOMATIC CHOKE
    CHOKE ROD, AUTOMATIC CHOKE
  • 33
    54-49290 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
  • -
    27-47410A1 GASKET SET
    GASKET SET
