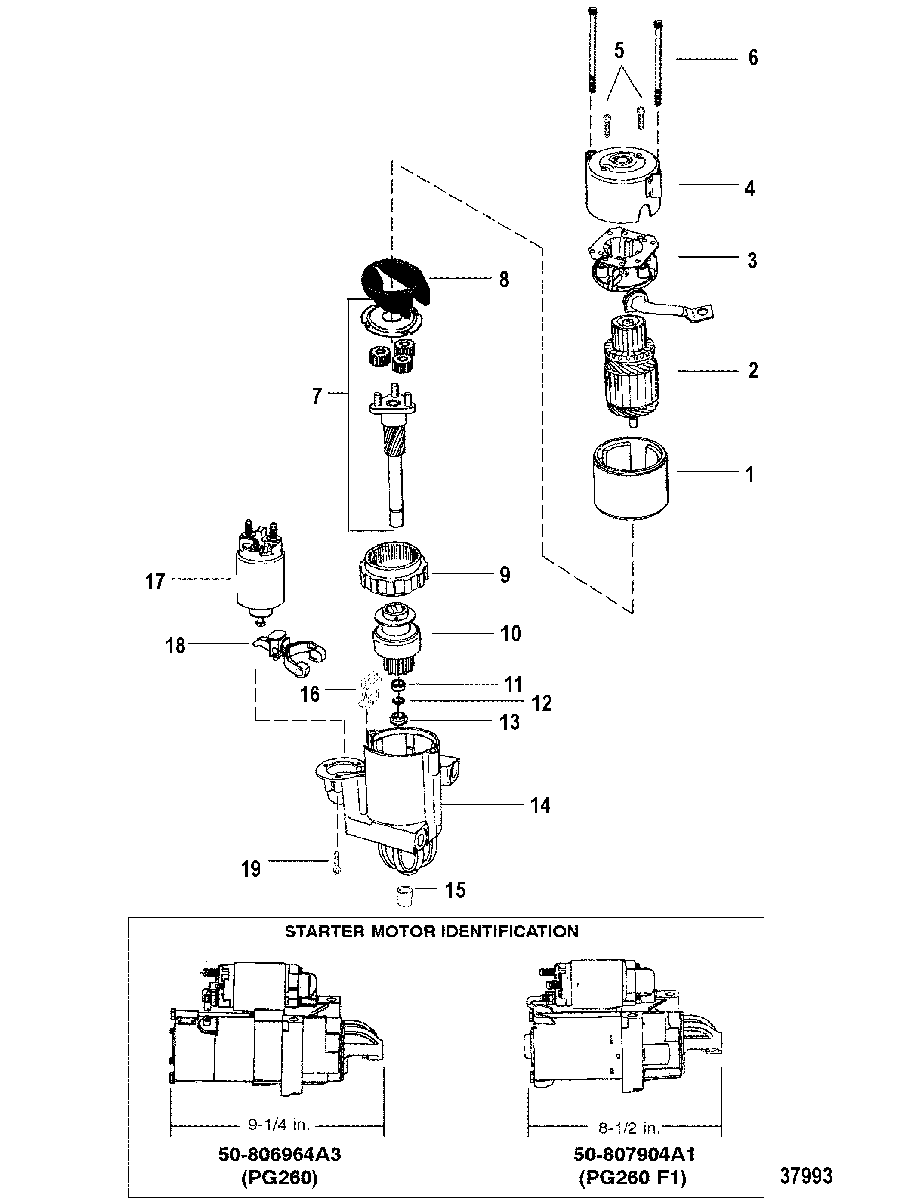

STARTER MOTOR, PG260 and PG260-F1 для Mercruiser - 4.3LXH (GEN +) (4 BBL.) GM 262 V-6 1996-1997 0F803114 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    PG260
    STARTER MOTOR ASSEMBLY
    PG260
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    PG260-F1
    STARTER MOTOR ASSEMBLY
    PG260-F1
  • 2
    NSS NOT SOLD SEPARATE, Armature
    NOT SOLD SEPARATE, Armature
  • 3
    NSS NOT SOLD SEPARATE, Brush Holder and Spring
    NOT SOLD SEPARATE, Brush Holder and Spring
  • 4
    NSS NOT SOLD SEPARATE, Frame
    NOT SOLD SEPARATE, Frame
  • 5
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 6
    NSS NOT SOLD SEPARATE, Thru Bolt
    PG260
    NOT SOLD SEPARATE, Thru Bolt
    PG260
  • 6
    16-803004 THRU BOLT (EXTENDED)
    PG260-F1
    THRU BOLT (EXTENDED)
    PG260-F1
  • 6
    10-803005 THRU BOLT
    PG260-F1
    THRU BOLT
    PG260-F1
  • 7
    NSS NOT SOLD SEPARATE, Shaft and Gear
    NOT SOLD SEPARATE, Shaft and Gear
  • 8
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 9
    NSS NOT SOLD SEPARATE, Gear
    NOT SOLD SEPARATE, Gear
  • 10
    NSS NOT SOLD SEPARATE, Drive
    PG260
    NOT SOLD SEPARATE, Drive
    PG260
  • 10
    803003 DRIVE
    PG260-F1
    DRIVE
    PG260-F1
  • 11
    33291 COLLAR
    COLLAR
  • 12
    53-33290 RING, Retaining
    RING, Retaining
  • 13
    NSS NOT SOLD SEPARATE, Collar-Thrust
    NOT SOLD SEPARATE, Collar-Thrust
  • 14
    809459 HOUSING
    PG260
    HOUSING
    PG260
  • 14
    803001T HOUSING, Drive
    PG260-F1
    HOUSING, Drive
    PG260-F1
  • 15
    23-814476 BUSHING
    BUSHING
  • 16
    NSS NOT SOLD SEPARATE, Grommet
    NOT SOLD SEPARATE, Grommet
  • 17
    809463A1 SOLENOID KIT
    SOLENOID KIT
  • 18
    NSS NOT SOLD SEPARATE, Lever
    NOT SOLD SEPARATE, Lever
  • 19
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
