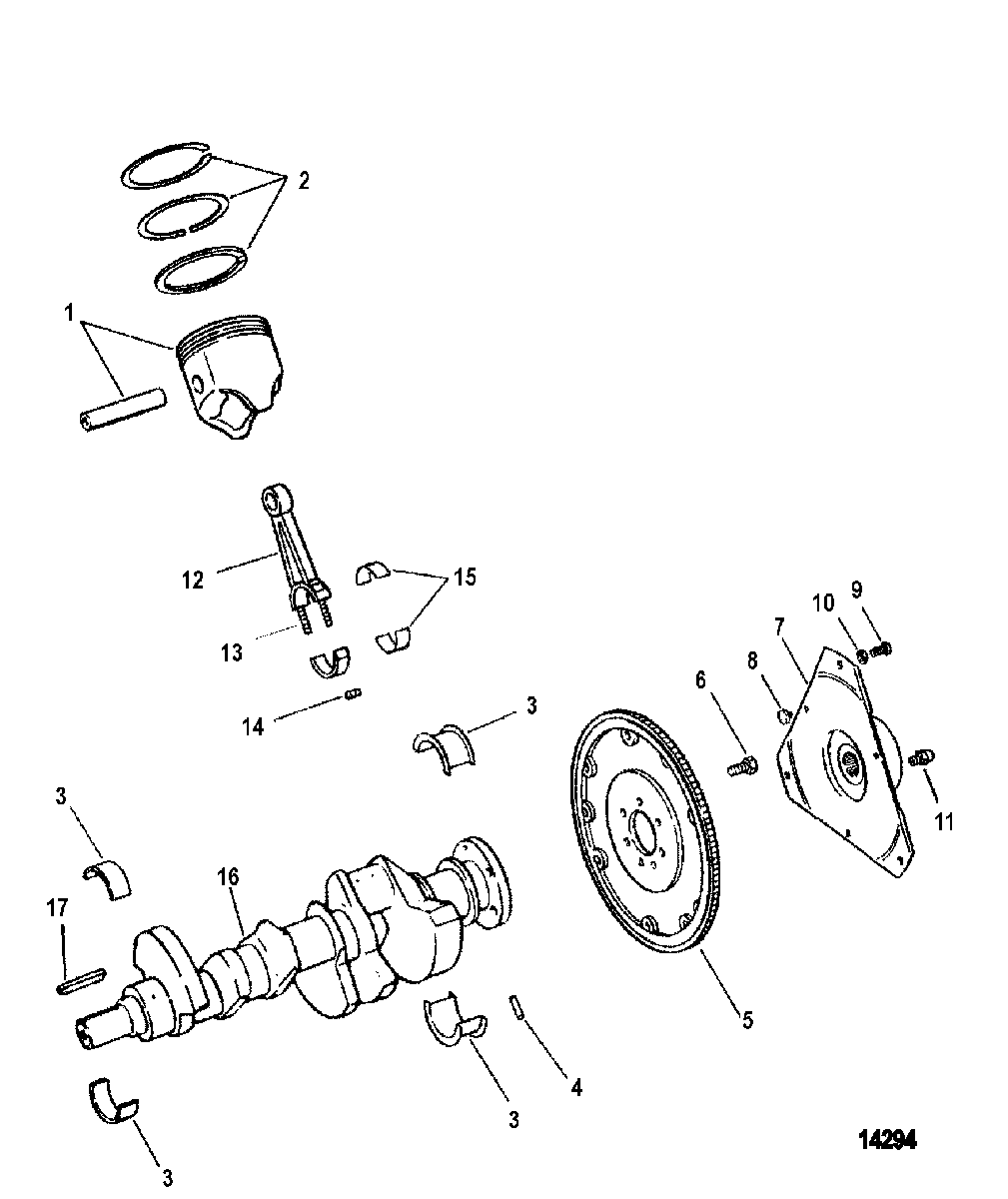

CRANKSHAFT AND PISTONS для Mercruiser - 4.3LXH (GEN +) (4 BBL.) GM 262 V-6 1996-1997 0F803114 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    735-835001T PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 1
    735-835002T PISTON ASSEMBLY
    (.5MM O.S.)
    PISTON ASSEMBLY
    (.5MM O.S.)
  • 2
    39-8018611 RING SET
    (STANDARD)
    RING SET
    (STANDARD)
  • 2
    39-835000 RING SET, Piston
    (.5MM O.S.)
    RING SET, Piston
    (.5MM O.S.)
  • 3
    23-818465 BEARING SET, 5 Pair
    (STANDARD)
    BEARING SET, 5 Pair
    (STANDARD)
  • 3
    23-818466 BEARING SET, 5 Pair
    (.001 USA)
    BEARING SET, 5 Pair
    (.001 USA)
  • 3
    23-818467 BEARING SET, 5 Pair
    (.010 USA)
    BEARING SET, 5 Pair
    (.010 USA)
  • 3
    23-818468 BEARING SET, 5 Pair
    (.020 USA)
    BEARING SET, 5 Pair
    (.020 USA)
  • 4
    17-43504 PIN, Dowel (1/4 Diameter)
    PIN, Dowel (1/4 Diameter)
  • 5
    222-8243201 FLYWHEEL
    FLYWHEEL
  • 6
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 7
    18643A5 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 8
    18644 BUMPER, Rubber
    BUMPER, Rubber
  • 9
    10-14883 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 10
    12-13510 WASHER
    WASHER
  • 11
    22-74036 FITTING, Grease
    FITTING, Grease
  • 12
    614-811839T02 CONNECTING ROD
    CONNECTING ROD
  • 13
    10-11969 BOLT
    BOLT
  • 14
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 15
    23-11992001 BEARING
    (STANDARD - PAIR)
    BEARING
    (STANDARD - PAIR)
  • 15
    23-11993 BEARING
    (.001 USA - PAIR)
    BEARING
    (.001 USA - PAIR)
  • 15
    23-811858001 BEARING
    (.010 USA - PAIR)
    BEARING
    (.010 USA - PAIR)
  • 15
    23-811859 BEARING
    (.020 USA - PAIR)
    BEARING
    (.020 USA - PAIR)
  • 16
    429-9517002 CRANKSHAFT
    CRANKSHAFT
  • 17
    28-818485 KEY
    KEY
