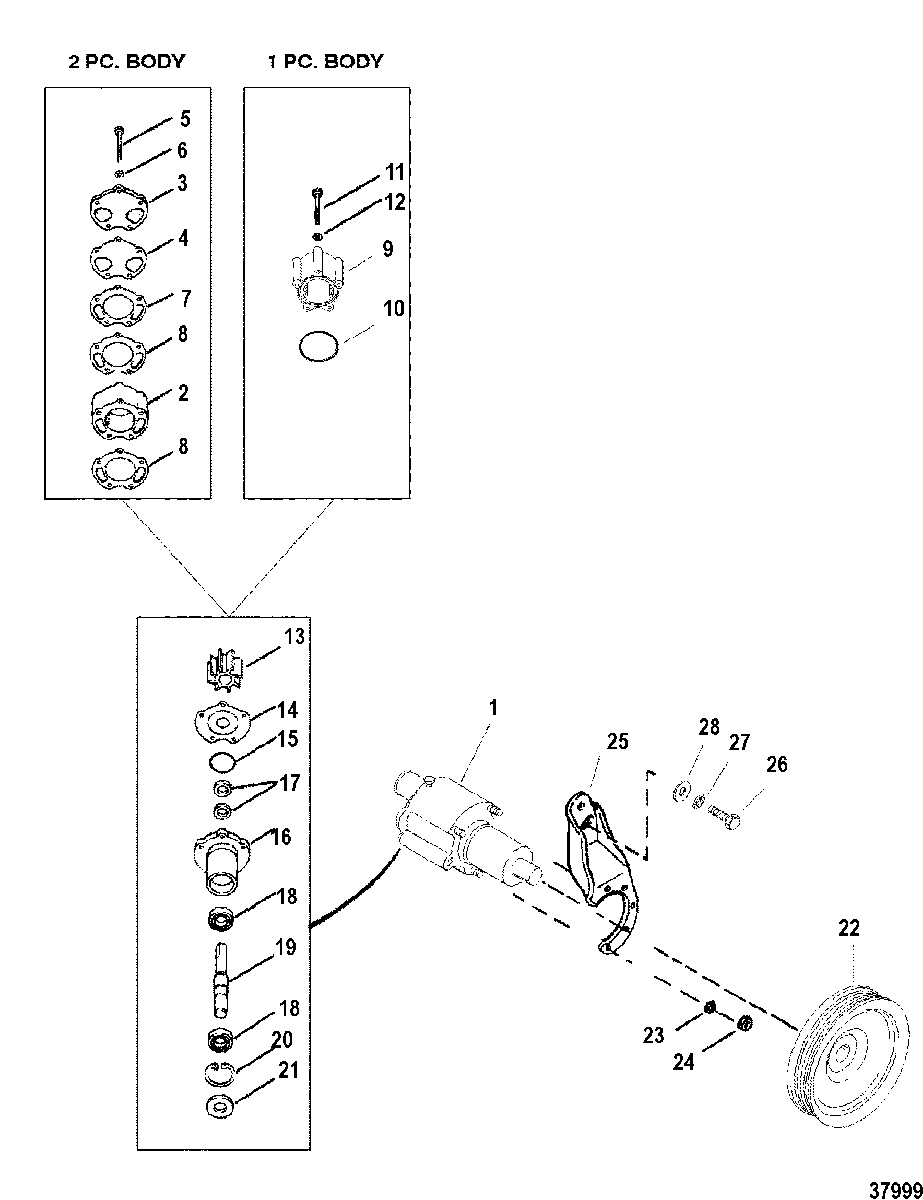

SEA WATER PUMP ASSEMBLY(USE WITH BRAVO ENGINES) для Mercruiser - 4.3LXH (GEN +) (4 BBL.) GM 262 V-6 1996-1997 0F803114 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    46-807151A9 PUMP ASSEMBLY, Sea Water
    (ONE PIECE BODY)
    PUMP ASSEMBLY, Sea Water
    (ONE PIECE BODY)
  • 2
    46-72774A40 BODY ASSEMBLY, Sea Water - Complete
    TWO PIECE BODY
    BODY ASSEMBLY, Sea Water - Complete
    TWO PIECE BODY
  • 3
    87631A4 COVER KIT
    TWO PIECE BODY
    COVER KIT
    TWO PIECE BODY
  • 4
    27-8052151 GASKET
    TWO PIECE BODY
    GASKET
    TWO PIECE BODY
  • 5
    10-73275 SCREW, (.312-18 x 2.88)
    TWO PIECE BODY
    SCREW, (.312-18 x 2.88)
    TWO PIECE BODY
  • 5
    10-99347 SCREW, (.312-18 x 3.75)
    TWO PIECE BODY
    SCREW, (.312-18 x 3.75)
    TWO PIECE BODY
  • 6
    12-20084 WASHER, (.328 x .562 x .062)
    TWO PIECE BODY
    WASHER, (.328 x .562 x .062)
    TWO PIECE BODY
  • 7
    94916 WEAR PLATE (OUTER)
    TWO PIECE BODY
    WEAR PLATE (OUTER)
    TWO PIECE BODY
  • 8
    27-94914 GASKET
    TWO PIECE BODY
    GASKET
    TWO PIECE BODY
  • 9
    46-807151A14 BODY AND COVER
    ONE PIECE BODY
    BODY AND COVER
    ONE PIECE BODY
  • 10
    25-33465 QUAD RING
    ONE PIECE BODY
    QUAD RING
    ONE PIECE BODY
  • 11
    10-807356 SCREW, (.312-18 x 2.680)
    ONE PIECE BODY
    SCREW, (.312-18 x 2.680)
    ONE PIECE BODY
  • 11
    10-74191 SCREW, (.312-18 x 3.250)
    ONE PIECE BODY
    SCREW, (.312-18 x 3.250)
    ONE PIECE BODY
  • 12
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    ONE PIECE BODY
    WASHER, (.344 x .688 x .065) Stainless Steel
    ONE PIECE BODY
  • 13
    47-59362T1 IMPELLER
    IMPELLER
  • 14
    94576 WEAR PLATE (INNER)
    WEAR PLATE (INNER)
  • 15
    25-94288 QUAD RING
    QUAD RING
  • 16
    46-94913A5 HOUSING ASSEMBLY, Pump
    HOUSING ASSEMBLY, Pump
  • 17
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 18
    30-72961 BEARING, Ball
    BEARING, Ball
  • 19
    59501A1 SHAFT
    SHAFT
  • 20
    53-23720 RING, Retaining
    RING, Retaining
  • 21
    26-72785 SEAL
    SEAL
  • 22
    861579 PULLEY
    PULLEY
  • 23
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 24
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 25
    8077491 BRACKET
    BRACKET
  • 26
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 27
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 28
    12-34714 WASHER
    WASHER
