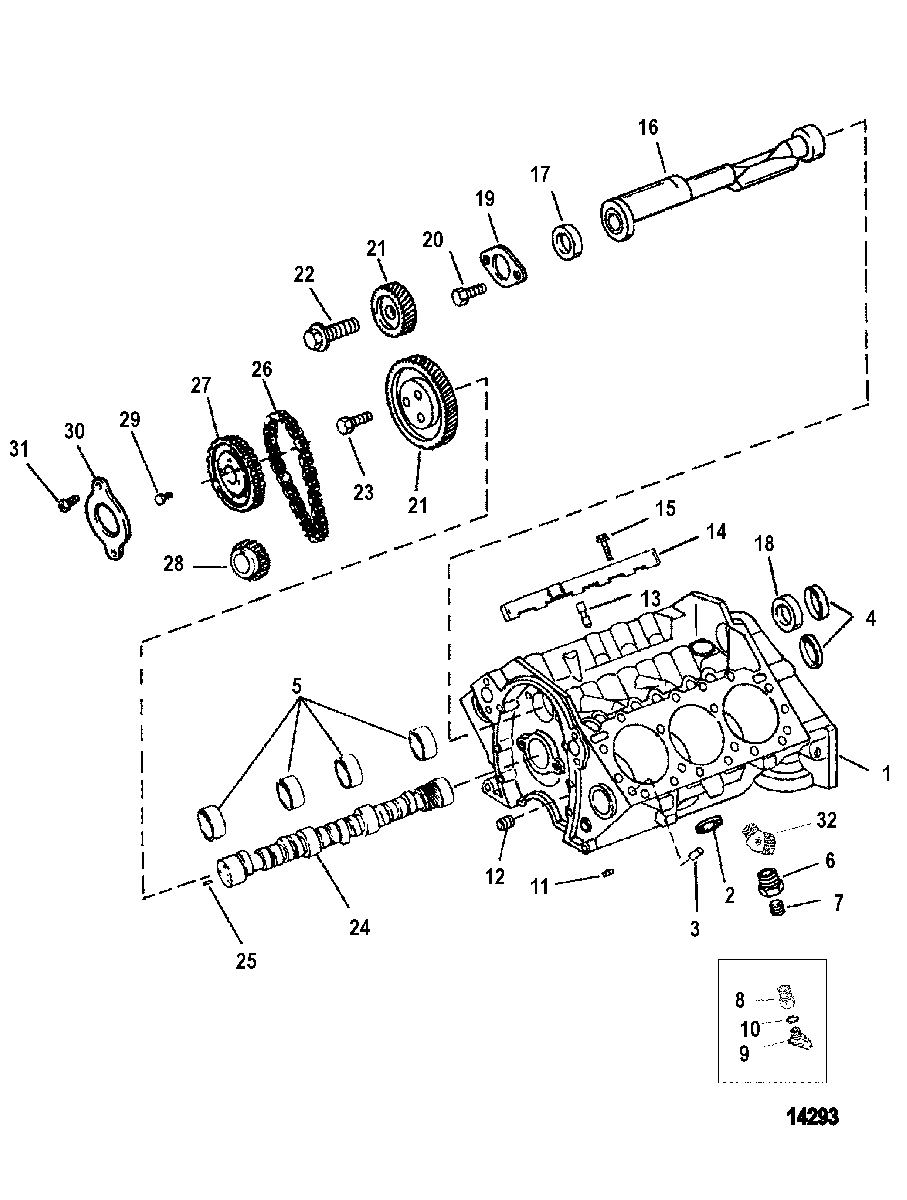

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 4.3LXH (GEN +) (4 BBL.) GM 262 V-6 1996-1997 0F803114 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block
    ORDER LONG BLOCK 807735A1 (2 BBL.) OR 807736A1 (4 BBL.)
    NOT SOLD SEPARATE, Cylinder Block
    ORDER LONG BLOCK 807735A1 (2 BBL.) OR 807736A1 (4 BBL.)
  • 2
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 3
    17-35465 PIN, Dowel (.312)
    PIN, Dowel (.312)
  • 4
    22-72640 PLUG, Expansion
    PLUG, Expansion
  • 5
    23-802999 BEARING SET
    BEARING SET
  • 6
    22-48556 BUSHING , Reducer (.250 To .125)
    BRASS DRAIN PLUG
    BUSHING , Reducer (.250 To .125)
    BRASS DRAIN PLUG
  • 7
    22-328022 PLUG, Pipe (.125-27)
    BRASS DRAIN PLUG
    PLUG, Pipe (.125-27)
    BRASS DRAIN PLUG
  • 8
    22-860088 BUSHING
    PLASTIC DRAIN PLUG
    BUSHING
    PLASTIC DRAIN PLUG
  • 9
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLASTIC DRAIN PLUG
    PLUG KIT, (.500-13) Royal Blue
    PLASTIC DRAIN PLUG
  • 10
    25-32509 QUAD RING
    PLASTIC DRAIN PLUG
    QUAD RING
    PLASTIC DRAIN PLUG
  • 11
    22-42796 VALVE, Oil Filter Bypass
    VALVE, Oil Filter Bypass
  • 12
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
  • 13
    8118441 LIFTER, Roller
    LIFTER, Roller
  • 14
    8243311 RETAINER, Lifter
    RETAINER, Lifter
  • 15
    10-8243321 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 16
    8241481 BALANCED SHAFT
    BALANCED SHAFT
  • 17
    NSS NOT SOLD SEPARATE, Ball Bearing-Front
    NOT SOLD SEPARATE, Ball Bearing-Front
  • 18
    31-824150 BEARING, Needle (REAR)
    BEARING, Needle (REAR)
  • 19
    824153 RETAINER, Balance Shaft
    RETAINER, Balance Shaft
  • 20
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 21
    43-8241511 GEAR KIT
    GEAR KIT
  • 22
    10-824152 SCREW
    SCREW
  • 23
    10-824329 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 24
    431-803186 CAMSHAFT
    CAMSHAFT
  • 25
    17-353121 PIN, Dowel
    PIN, Dowel
  • 26
    17161T CHAIN, Timing
    CHAIN, Timing
  • 27
    883494 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 28
    43-17160 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 29
    10-824329 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 30
    824333 RETAINER, Camshaft
    RETAINER, Camshaft
  • 31
    10-824334 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 32
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • -
    864256A1 MARINE LONG BLOCK ENGINE
    (2 BARREL)
    MARINE LONG BLOCK ENGINE
    (2 BARREL)
  • -
    864256A1 MARINE LONG BLOCK ENGINE
    (4 BARREL)
    MARINE LONG BLOCK ENGINE
    (4 BARREL)
  • -
    27-824326A02 GASKET SET, Overhaul
    GASKET SET, Overhaul
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
