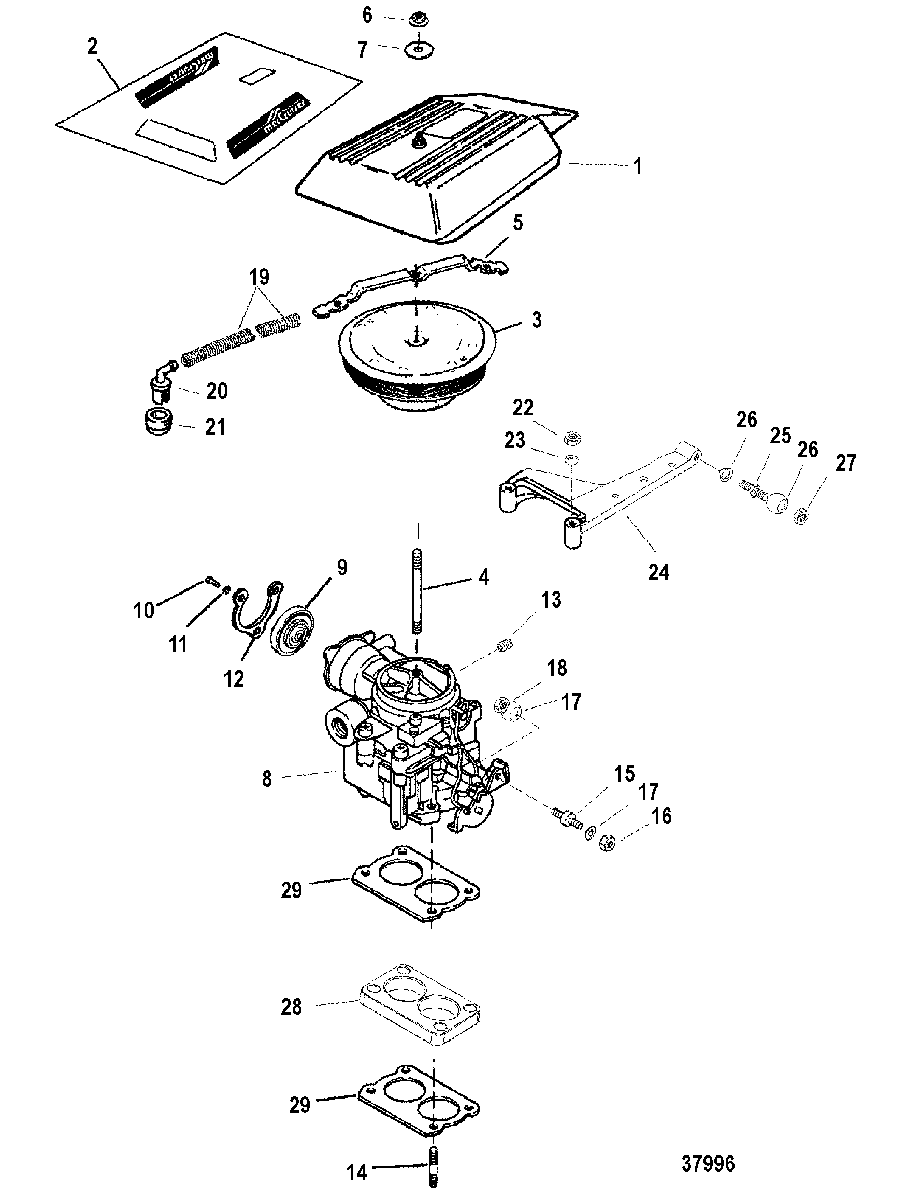

CARBURETOR AND THROTTLE LINKAGE(2 BARREL) для Mercruiser - 4.3LXH (GEN +) (4 BBL.) GM 262 V-6 1996-1997 0F803114 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    37-812776A38 DECAL SET, Cover
    DECAL SET, Cover
  • 3
    805016A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 4
    16-8M0113181 STUD, (.250-20/.250-28 x Special)
    STUD, (.250-20/.250-28 x Special)
  • 5
    805313 RETAINER
    RETAINER
  • 6
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 7
    12-86400 WASHER
    WASHER
  • 8
    3310-807764A1 CARBURETOR ASSEMBLY
    (SEE "CARBURETOR (MERCARB - 2 BARREL)" FOR BREAKDOWN)
    CARBURETOR ASSEMBLY
    (SEE "CARBURETOR (MERCARB - 2 BARREL)" FOR BREAKDOWN)
  • 9
    70125A02 COVER, Choke
    COVER, Choke
  • 10
    10-33047 SCREW
    SCREW
  • 11
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 12
    53-805140 PLATE
    PLATE
  • 13
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 14
    16-65868 STUD, (.312-18/.312-24 x 2.120)
    STUD, (.312-18/.312-24 x 2.120)
  • 14
    16-807849 STUD, (.312-18/.312-24 x 3.380)
    STUD, (.312-18/.312-24 x 3.380)
  • 15
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 16
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 17
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 18
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 19
    32-8M0086022 HOSE, Breather
    HOSE, Breather
  • 20
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 21
    25-827152 GROMMET
    GROMMET
  • 22
    11-862902 NUT, (.9375-24)
    NUT, (.9375-24)
  • 23
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 24
    805489T BRACKET
    BRACKET
  • 25
    16-38525 STUD
    STUD
  • 26
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 27
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 28
    807726A2 ADAPTOR
    ADAPTOR
  • 29
    27-8079821 GASKET
    GASKET
  • -
    27-824326A02 GASKET SET, Overhaul
    GASKET SET, Overhaul
