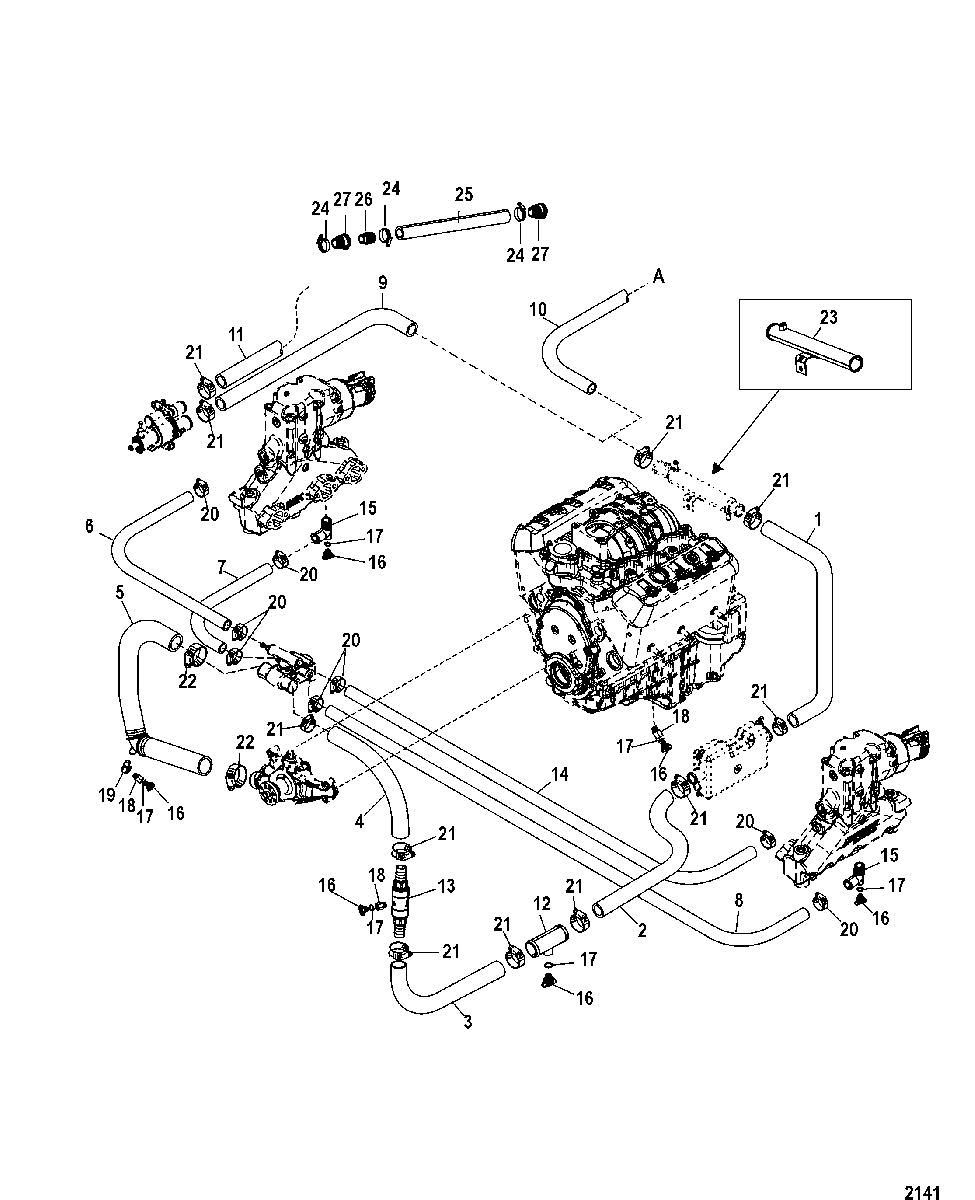

Standard Cooling System(Seven Point Drain) для Mercruiser - 4.3L MPI ALPHA/BRAVO 0M615000 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    32-860206 HOSE, Fuel Cooler to Power Steering Cooler
    HOSE, Fuel Cooler to Power Steering Cooler
  • 2
    32-866331 HOSE, (4.00 Inches), Fuel cooler to Drain Fitting
    (Cut to Length)
    HOSE, (4.00 Inches), Fuel cooler to Drain Fitting
    (Cut to Length)
  • 3
    32-864578 HOSE, Drain Fitting to Check Valve
    HOSE, Drain Fitting to Check Valve
  • 4
    32-864579 HOSE, Check Valve to Thermo Housing
    HOSE, Check Valve to Thermo Housing
  • 5
    32-864703A1 HOSE, Circulating Pump to Thermostat Housing
    HOSE, Circulating Pump to Thermostat Housing
  • 6
    32-864994 HOSE, Thermostat Housing to Starboard Elbow
    HOSE, Thermostat Housing to Starboard Elbow
  • 7
    32-863858 HOSE, Thermo Housing to Starboard Manifold
    HOSE, Thermo Housing to Starboard Manifold
  • 8
    32-863458 HOSE, Thermo Housing to Port Manifold
    HOSE, Thermo Housing to Port Manifold
  • 9
    32-8636111 HOSE, Sea Pump To Power Steering Cooler (Bravo)
    HOSE, Sea Pump To Power Steering Cooler (Bravo)
  • 10
    32-807661 HOSE, Transom to Power Steering Cooler (Alpha)
    HOSE, Transom to Power Steering Cooler (Alpha)
  • 11
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Drive (Bravo)
    HOSE, (96.00 Inches Bulk), Sea Water Pump to Drive (Bravo)
  • 12
    861505 FITTING, Drain Tee
    FITTING, Drain Tee
  • 13
    21-862271A1 CHECK VALVE
    CHECK VALVE
  • 14
    32-864993 HOSE, Thermostat Housing to Port Elbow
    HOSE, Thermostat Housing to Port Elbow
  • 15
    22-862210A01 ELBOW KIT, Drain, Drain
    ELBOW KIT, Drain, Drain
  • 16
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue, Drain Fitting
    PLUG KIT, (.500-13) Royal Blue, Drain Fitting
  • 17
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 18
    22-860088 BUSHING
    BUSHING
  • 19
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 20
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 21
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 22
    54-815504228 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 23
    863841T TUBE, Water, Brass
    (Compact Hydralic Steering)
    TUBE, Water, Brass
    (Compact Hydralic Steering)
  • 24
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 25
    32-8M0062653 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 26
    22-865362 QUICK CONNECT
    QUICK CONNECT
  • 27
    22-865324 QUICK CONNECT
    QUICK CONNECT
