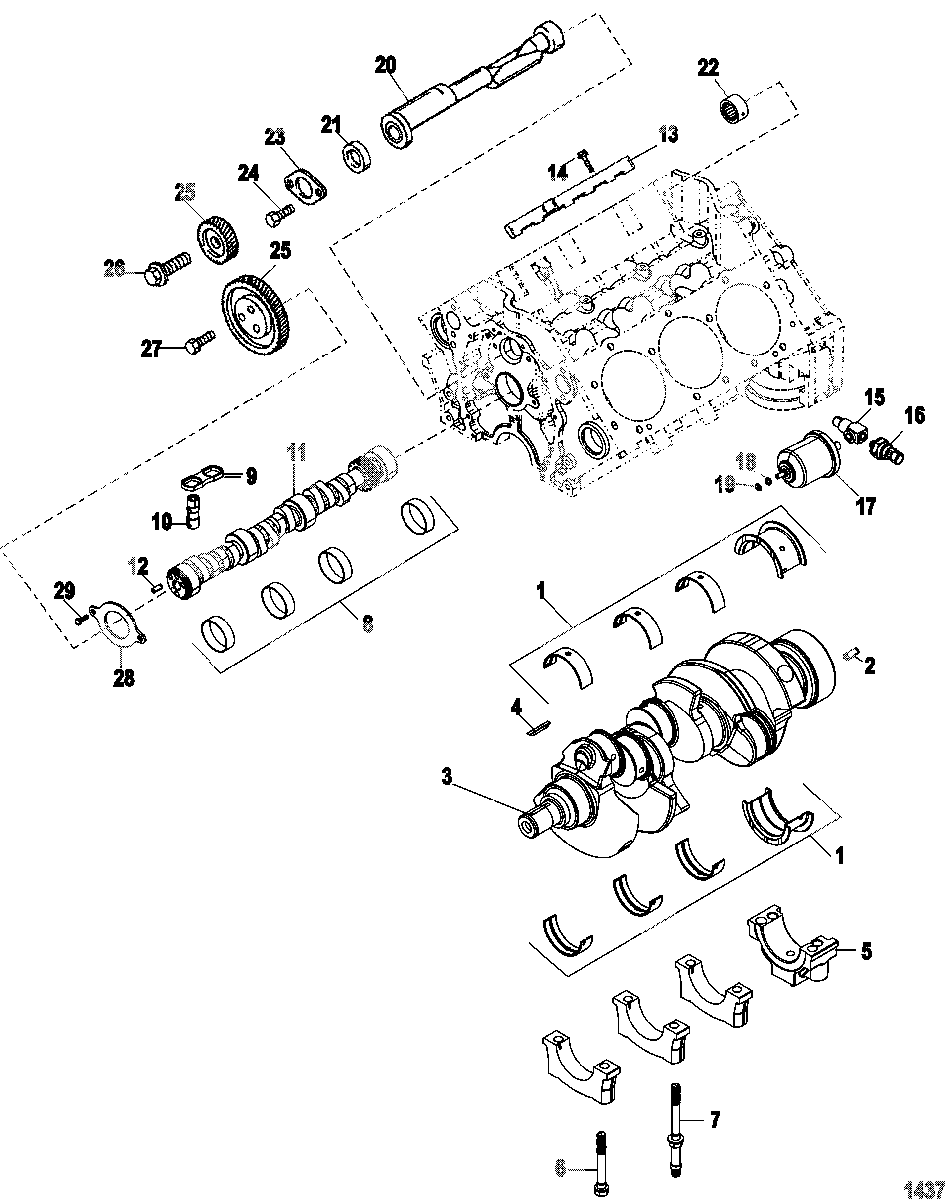

Cylinder Block, Camshaft , Crankshaft and Balanceshaft для Mercruiser - 4.3L MPI ALPHA/BRAVO 0M615000 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    23-818465 BEARING SET, 5 Pair
    (Standard)
    BEARING SET, 5 Pair
    (Standard)
  • 1
    23-818466 BEARING SET, 5 Pair
    (.001 Undersize)
    BEARING SET, 5 Pair
    (.001 Undersize)
  • 1
    23-818467 BEARING SET, 5 Pair
    (.010 Undersize)
    BEARING SET, 5 Pair
    (.010 Undersize)
  • 1
    23-818468 BEARING SET, 5 Pair
    (.020 Undersize)
    BEARING SET, 5 Pair
    (.020 Undersize)
  • 2
    17-43504 PIN, Dowel
    PIN, Dowel
  • 3
    429-804911001 CRANKSHAFT
    CRANKSHAFT
  • 4
    28-8184851 KEY, Crankshaft
    KEY, Crankshaft
  • 5
    NSS NOT SOLD SEPARATE, Cap-Crankshaft Bearing
    NOT SOLD SEPARATE, Cap-Crankshaft Bearing
  • 6
    10-8625671 SCREW, Crankshaft Bearing Cap
    SCREW, Crankshaft Bearing Cap
  • 7
    16-54790 STUD, Crankshaft Bearing Cap
    STUD, Crankshaft Bearing Cap
  • 8
    23-802999 BEARING SET
    BEARING SET
  • 9
    17341T GUIDE, Lifter
    GUIDE, Lifter
  • 10
    8118441 LIFTER, Roller
    LIFTER, Roller
  • 11
    431-803186 CAMSHAFT
    CAMSHAFT
  • 12
    17-353121 PIN, Dowel
    PIN, Dowel
  • 13
    8243311 RETAINER, Lifter Guide
    RETAINER, Lifter Guide
  • 14
    10-8243321 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 15
    22-864669 FITTING
    FITTING
  • 16
    881879T11 SENSOR, (0 - 100 PSI), Oil Pressure
    SENSOR, (0 - 100 PSI), Oil Pressure
  • 17
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 17
    37293T SENDER ASSEMBLY, Oil Pressure
    (Dual Station)
    SENDER ASSEMBLY, Oil Pressure
    (Dual Station)
  • 18
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 19
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 20
    8241481 BALANCED SHAFT
    BALANCED SHAFT
  • 21
    30-824149 BEARING, Ball, Front
    BEARING, Ball, Front
  • 22
    31-824150 BEARING, Needle, Rear
    BEARING, Needle, Rear
  • 23
    824153 RETAINER, Balance Shaft
    RETAINER, Balance Shaft
  • 24
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 25
    43-8241511 GEAR KIT, Balance Shaft
    GEAR KIT, Balance Shaft
  • 26
    10-824152 SCREW
    SCREW
  • 27
    10-824329 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue, Where Applicable
    RTV SILICONE, (3 Ounce Tube) Metallic Blue, Where Applicable
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce), Where Applicable
    SEALING COMPOUND, (16 Ounce), Where Applicable
  • -
    864256A2 LONGBLOCK ASSEMBLY (4.3L)
    LONGBLOCK ASSEMBLY (4.3L)
