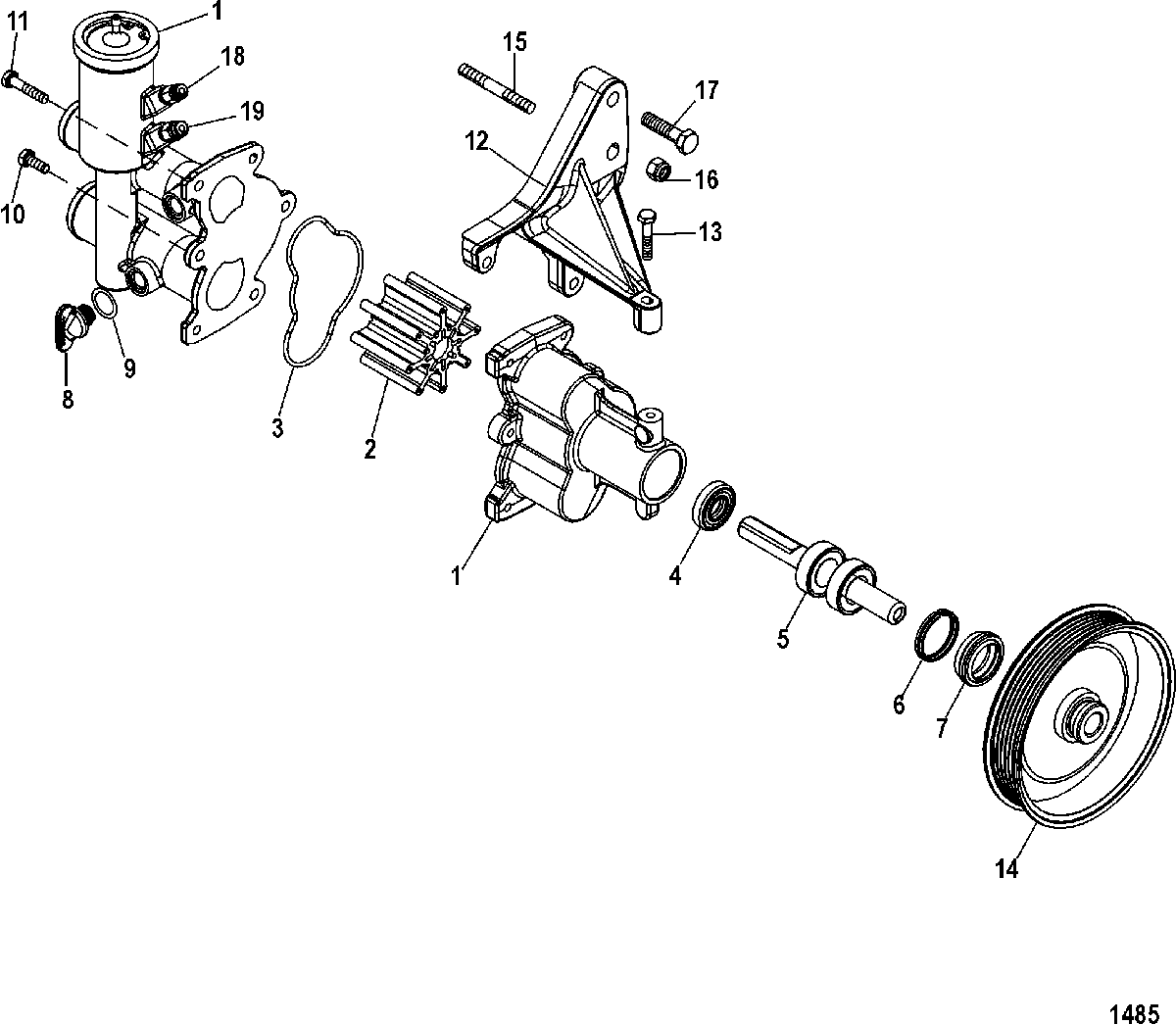

Sea Water Pump Assembly для Mercruiser - 4.3L MPI ALPHA/BRAVO 0M615000 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    46-8M0137216 PUMP ASSEMBLY
    (Without Air Fittings)
    PUMP ASSEMBLY
    (Without Air Fittings)
  • 1
    46-8M0137217 PUMP ASSEMBLY
    (With Air Fittings)
    PUMP ASSEMBLY
    (With Air Fittings)
  • 2
    47-8M0104229 IMPELLER
    IMPELLER
  • 3
    25-841807 O-RING, (3.500 x .103)
    O-RING, (3.500 x .103)
  • 4
    26-8M2001645 SEAL, Oil
    SEAL, Oil
  • 5
    8M0050018 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 6
    862039 TOLERANCE RING
    TOLERANCE RING
  • 7
    26-862040 SEAL, Lip
    SEAL, Lip
  • 8
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 9
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 10
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 11
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 12
    865143T01 BRACKET, Sea Water Pump
    BRACKET, Sea Water Pump
  • 13
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 14
    862351T PULLEY
    PULLEY
  • 15
    16-863853 STUD
    STUD
  • 16
    11-82671112 NUT, (.375-16)
    NUT, (.375-16)
  • 17
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 18
    22-8M0082319 FITTING, Gray - Straight, Male Air
    (.1562)(Component of T-4 Pump)
    FITTING, Gray - Straight, Male Air
    (.1562)(Component of T-4 Pump)
  • 19
    22-8M0082320 FITTING, Orange - Straight, Male Air
    (.1875)(Component of T-4 Pump)
    FITTING, Orange - Straight, Male Air
    (.1875)(Component of T-4 Pump)
