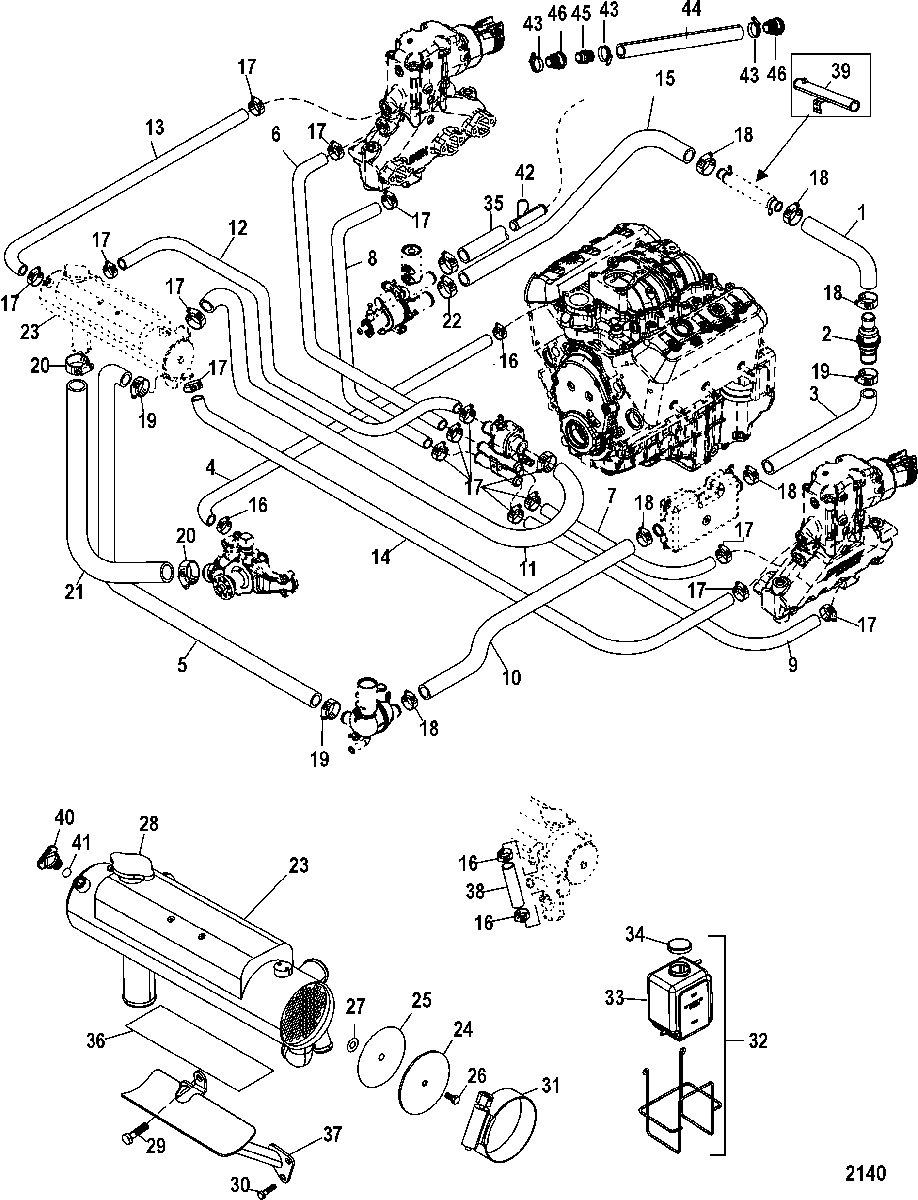

Closed Cooling System для Mercruiser - 4.3L MPI ALPHA/BRAVO 0M615000 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    32-863489 HOSE, Power Steering Cooler to Check Valve
    HOSE, Power Steering Cooler to Check Valve
  • 2
    21-864206A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    32-863811 HOSE, Check Valve to Fuel Cooler
    HOSE, Check Valve to Fuel Cooler
  • 4
    32-864551 HOSE, Intake Bypass to Circulating Pump
    HOSE, Intake Bypass to Circulating Pump
  • 5
    32-864431 HOSE, Distribution Housing to Heat Exchanger
    HOSE, Distribution Housing to Heat Exchanger
  • 6
    32-864713 HOSE, Thermostat Housing to Upper Manifold (STBD)
    (Without Riser)
    HOSE, Thermostat Housing to Upper Manifold (STBD)
    (Without Riser)
  • 6
    32-864933 HOSE, Thermostat Housing to Upper Manifold (STBD)
    (With Riser)
    HOSE, Thermostat Housing to Upper Manifold (STBD)
    (With Riser)
  • 7
    32-864714 HOSE, Thermostat Housing to Upper Manifold (PORT)
    (Without Riser)
    HOSE, Thermostat Housing to Upper Manifold (PORT)
    (Without Riser)
  • 7
    32-864931 HOSE, Thermostat Housing to Upper Manifold (PORT)
    (With Riser)
    HOSE, Thermostat Housing to Upper Manifold (PORT)
    (With Riser)
  • 8
    32-864534 HOSE, Thermostat Housing to Lower Manifold
    (Starboard)
    HOSE, Thermostat Housing to Lower Manifold
    (Starboard)
  • 9
    32-864575 HOSE, Thermostat Housing to Lower Manifold
    (Port)
    HOSE, Thermostat Housing to Lower Manifold
    (Port)
  • 10
    32-863781 HOSE, Fuel Cooler to Accumulator Housing
    HOSE, Fuel Cooler to Accumulator Housing
  • 11
    32-864506 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 12
    32-864507 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 13
    32-864532 HOSE, Heat Exchanger to Elbow (Starboard)
    (Without Riser)
    HOSE, Heat Exchanger to Elbow (Starboard)
    (Without Riser)
  • 13
    32-864934 HOSE, Heat Exchanger to Elbow (Starboard)
    (With Riser)
    HOSE, Heat Exchanger to Elbow (Starboard)
    (With Riser)
  • 14
    32-864726 HOSE, Heat Exchanger to Elbow (Port)
    (Without Riser)
    HOSE, Heat Exchanger to Elbow (Port)
    (Without Riser)
  • 14
    32-864934 HOSE, Heat Exchanger to Elbow (Port)
    (With Riser)
    HOSE, Heat Exchanger to Elbow (Port)
    (With Riser)
  • 15
    32-8636111 HOSE, Sea Pump to Power Steering Cooler
    HOSE, Sea Pump to Power Steering Cooler
  • 16
    54-815504212 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 17
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 18
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 19
    54-815504228 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 20
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 21
    32-864886 HOSE, Heat Exchanger to Circulating Pump
    HOSE, Heat Exchanger to Circulating Pump
  • 22
    54-815504224 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 23
    864395T01 HEAT EXCHANGER, Closed Cooling
    HEAT EXCHANGER, Closed Cooling
  • 24
    864708 COVER
    COVER
  • 25
    25-8M0084884 SEAL, End Cover
    SEAL, End Cover
  • 26
    10-814877 BOLT
    BOLT
  • 27
    25-8M0039163 O-RING, Special
    O-RING, Special
  • 28
    36-8148791 CAP, Pressure
    CAP, Pressure
  • 29
    10-805559 SCREW, (.375-16 x .875) Stainless Steel
    SCREW, (.375-16 x .875) Stainless Steel
  • 30
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 31
    54-815504396 CLAMP, Worm Gear, Heat Exchanger
    CLAMP, Worm Gear, Heat Exchanger
  • 32
    71587A10 RECOVERY KIT, Coolant
    RECOVERY KIT, Coolant
  • NS
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 33
    71587A11 BOTTLE, Plastic, Coolant Recovery Kit
    BOTTLE, Plastic, Coolant Recovery Kit
  • 34
    72058 CAP, Coolant Recovery Bottle
    CAP, Coolant Recovery Bottle
  • 35
    32-8M0062666 HOSE, Sea Water Pump to Water Pick Up
    HOSE, Sea Water Pump to Water Pick Up
  • 36
    18431 PAD, Heat Exchanger
    PAD, Heat Exchanger
  • 37
    864494T BRACKET, Cooler
    BRACKET, Cooler
  • 38
    32-8M0062634 HOSE, (44.00 Inches Bulk)
    (Cut to 6 Inch Length)
    HOSE, (44.00 Inches Bulk)
    (Cut to 6 Inch Length)
  • 39
    863841T TUBE, Water, Brass
    (Compact Hydralic Steering)
    TUBE, Water, Brass
    (Compact Hydralic Steering)
  • 40
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 41
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 42
    22-864727 FITTING, Y, (3) 1-1/4 In. OD Hose Barbs
    (Bravo)
    FITTING, Y, (3) 1-1/4 In. OD Hose Barbs
    (Bravo)
  • 43
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 44
    32-8M0062653 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 45
    22-865362 QUICK CONNECT
    QUICK CONNECT
  • 46
    22-865324 QUICK CONNECT
    QUICK CONNECT
