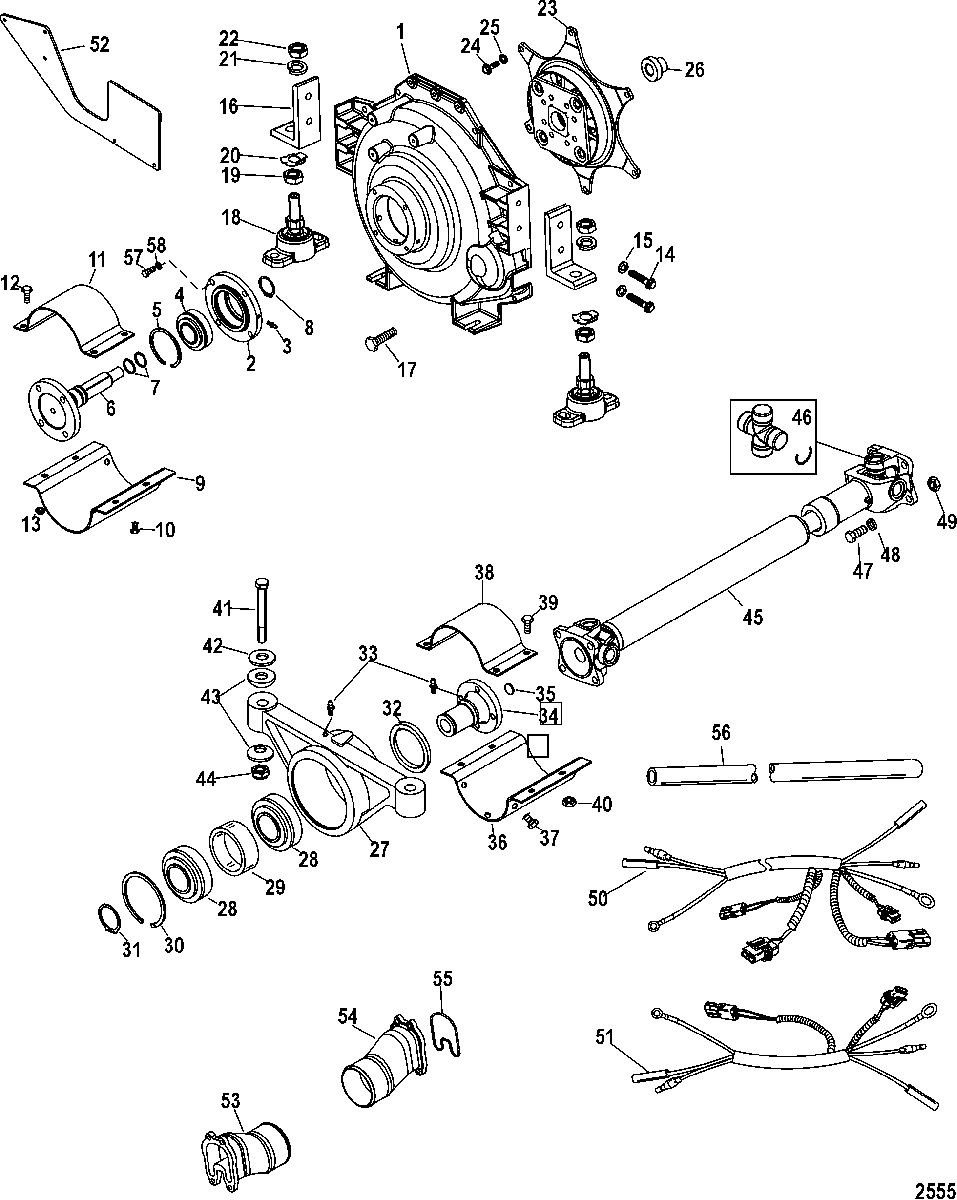

Jackshaft Components для Mercruiser - 4.3L MPI ALPHA/BRAVO 0M615000 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    862737 HOUSING, Flywheel
    HOUSING, Flywheel
  • 2
    862833 BEARING, Adaptor
    BEARING, Adaptor
  • 3
    22-74036 FITTING, Grease
    FITTING, Grease
  • 4
    30-879194A03 BEARING, Ball
    BEARING, Ball
  • 5
    53-94104 RING, Retaining
    RING, Retaining
  • 6
    862832T SHAFT
    SHAFT
  • 7
    25-29845 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 8
    53-8M0141818 RING, Retaining
    RING, Retaining
  • 9
    93918A1 SHIELD, Lower, Lower
    SHIELD, Lower, Lower
  • 10
    10-96995 SCREW, (.375-16 x .880)
    SCREW, (.375-16 x .880)
  • 11
    93919A1 SHIELD, Upper, Upper
    SHIELD, Upper, Upper
  • 12
    10-96995 SCREW, (.375-16 x .880)
    SCREW, (.375-16 x .880)
  • 13
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 14
    10-47651 SCREW, (.437-14 x 1.50)
    SCREW, (.437-14 x 1.50)
  • 15
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 16
    862738 BRACKET, Flywheel Housing
    BRACKET, Flywheel Housing
  • 17
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 17
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 17
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 18
    66284A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 19
    11-816331 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 20
    14-12657 TAB WASHER, Tab
    TAB WASHER, Tab
  • 21
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 22
    11-859126 NUT, (.750-16)
    NUT, (.750-16)
  • 23
    862838 DRIVEPLATE ASSEMBLY
    DRIVEPLATE ASSEMBLY
  • 24
    10-14883 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 25
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 26
    23-862834 BUSHING, Pilot
    BUSHING, Pilot
  • 27
    817416A4 HOUSING ASSEMBLY, Bearing
    HOUSING ASSEMBLY, Bearing
  • 28
    30-93944A2 BEARING SET, Ball
    BEARING SET, Ball
  • 29
    23-817417T SPACER
    SPACER
  • 30
    53-93914 RING, Retaining
    RING, Retaining
  • 31
    53-93915 RING, Retaining
    RING, Retaining
  • 32
    26-93924 SEAL, Oil
    SEAL, Oil
  • 33
    22-74036 FITTING, Grease
    FITTING, Grease
  • 34
    NSS NOT SOLD SEPARATE, Shaft-Input
    NOT SOLD SEPARATE, Shaft-Input
  • 35
    19-93921 EXPANSION PLUG
    EXPANSION PLUG
  • 36
    93918A1 SHIELD, Lower, Lower
    SHIELD, Lower, Lower
  • 37
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 38
    93919A1 SHIELD, Upper, Upper
    SHIELD, Upper, Upper
  • 39
    10-96995 SCREW, (.375-16 x .880)
    SCREW, (.375-16 x .880)
  • 40
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 41
    10-57053 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 42
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 43
    12-42307 WASHER, Spherical
    WASHER, Spherical
  • 44
    11-898832 NUT, (.500-20)
    NUT, (.500-20)
  • 45
    45-94819T5 DRIVESHAFT ASSEMBLY, (34.50 Inches)
    DRIVESHAFT ASSEMBLY, (34.50 Inches)
  • 46
    61221T CROSS AND BEARING, With Clips, With Clips
    CROSS AND BEARING, With Clips, With Clips
  • 47
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 48
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 49
    11-82670815 NUT, (.437-20)
    NUT, (.437-20)
  • 50
    84-41575A10 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 51
    84-41575A11 HARNESS ASSEMBLY, Extension
    HARNESS ASSEMBLY, Extension
  • 52
    863180 BRACKET
    BRACKET
  • 53
    862268T1 TUBE, Exhaust
    TUBE, Exhaust
  • 54
    862268T2 TUBE, Exhaust
    TUBE, Exhaust
  • 55
    41802 SEAL, Rubber, Exhaust
    SEAL, Rubber, Exhaust
  • 56
    32-8M0062666 HOSE, (96.00 Inches Bulk), Water Inlet
    HOSE, (96.00 Inches Bulk), Water Inlet
  • 57
    10-14883 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 58
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
