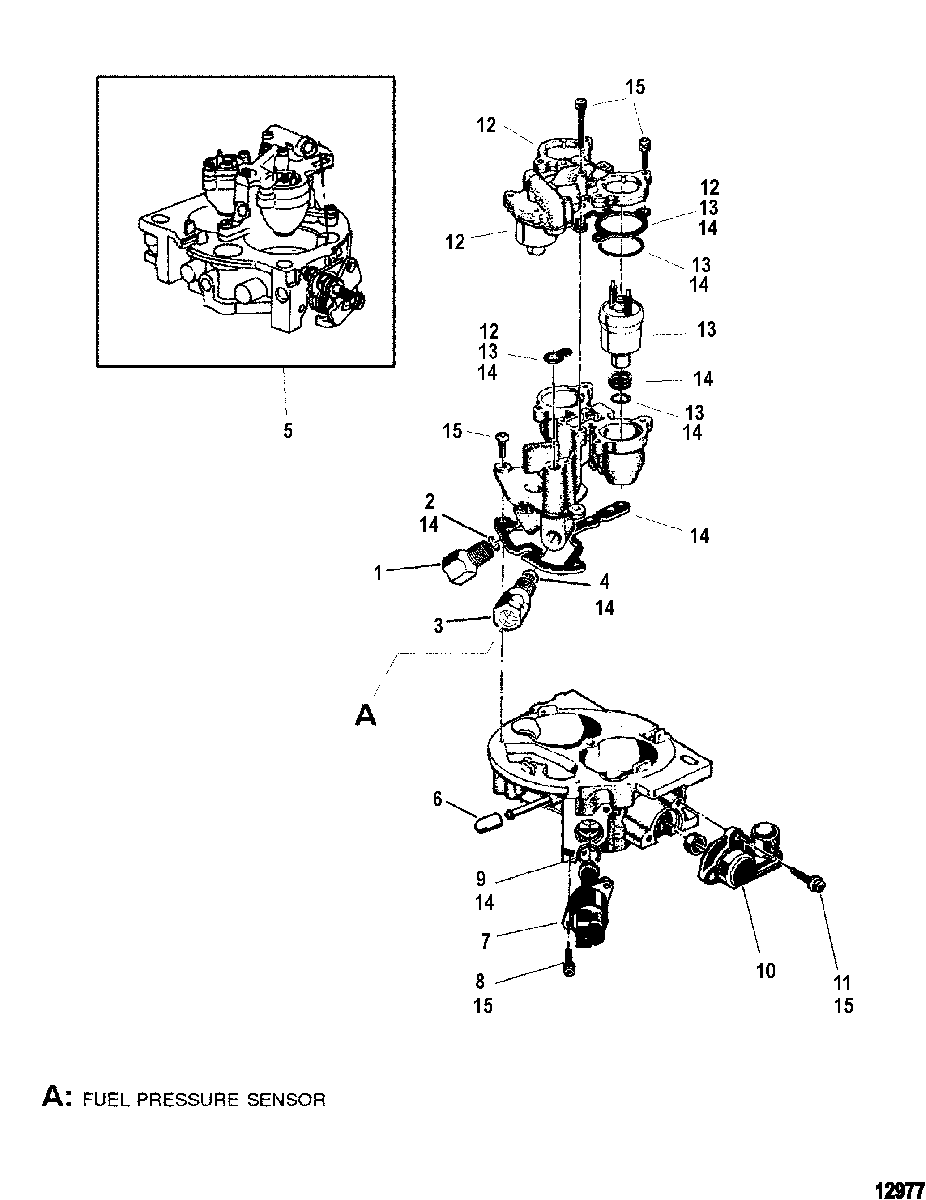

Throttle Body для Mercruiser - 4.3L EFI (GEN+) TBI GM 262 V-6 0L619000 THRU 0M322780

  • №
    Артикул
    Название
  • 1
    22-806653A1 FITTING ASSEMBLY
    (Inlet)
    FITTING ASSEMBLY
    (Inlet)
  • 2
    26-806655 SEAL
    SEAL
  • 3
    22-861880A1 ADAPTOR, Fuel Fitting
    ADAPTOR, Fuel Fitting
  • 4
    26-806706 SEAL
    SEAL
  • 5
    860320A1 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 6
    19-854310 PLUG
    PLUG
  • 7
    805224A1 MOTOR ASSEMBLY, IAC
    MOTOR ASSEMBLY, IAC
  • 8
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 9
    25-808547 O-RING
    O-RING
  • 10
    805226A1 SENSOR ASSEMBLY, TPS
    SENSOR ASSEMBLY, TPS
  • 11
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 12
    852955 REGULATOR KIT, Fuel Pressure
    REGULATOR KIT, Fuel Pressure
  • 13
    852956A1 INJECTOR KIT
    INJECTOR KIT
  • 14
    27-852957 GASKET KIT, Overhaul
    GASKET KIT, Overhaul
  • 15
    10-852958 SCREW KIT
    SCREW KIT
  • 16
    881879A8 SENSOR, Fuel Pressure
    SENSOR, Fuel Pressure
  • 17
    22-8M0123050 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • -
    27-807756A96 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
