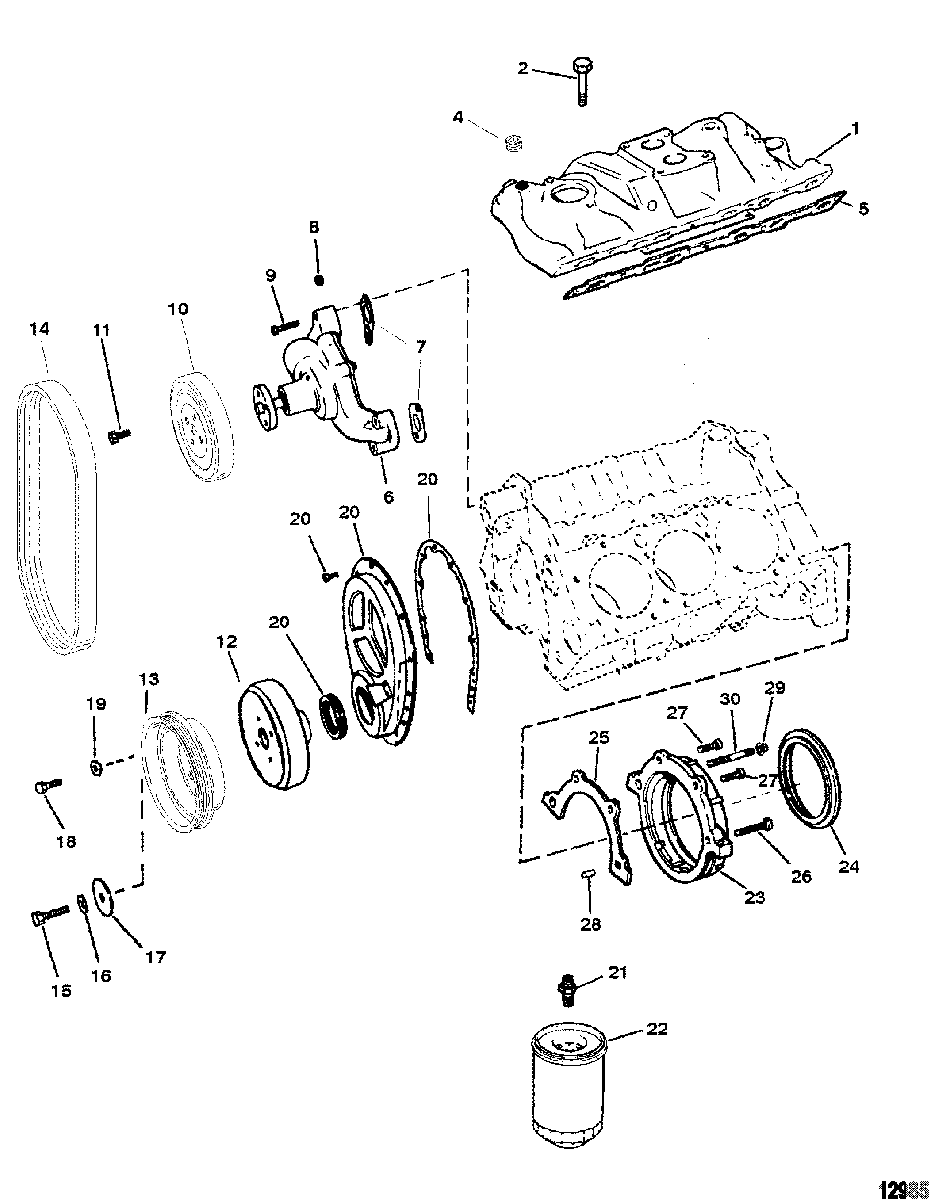

Intake Manifold And Front Cover для Mercruiser - 4.3L EFI (GEN+) TBI GM 262 V-6 0L619000 THRU 0M322780

  • №
    Артикул
    Название
  • 1
    824330T1 MANIFOLD, Intake
    MANIFOLD, Intake
  • 2
    10-835004 BOLT, (.312-18 x 1.75)
    BOLT, (.312-18 x 1.75)
  • 3
    10-802655 BOLT, (3/8-16 x 1.25)
    BOLT, (3/8-16 x 1.25)
  • 4
    22-75983 PLUG
    PLUG
  • 5
    27-824326002 GASKET SET
    GASKET SET
  • 6
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 7
    27-34897 GASKET
    GASKET
  • 8
    22-48336 PLUG, Water Pump
    PLUG, Water Pump
  • 9
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 9
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 9
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 10
    807729T PULLEY
    PULLEY
  • 11
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 12
    809892T BALANCER, Harmonic
    BALANCER, Harmonic
  • 13
    807730T PULLEY
    PULLEY
  • 14
    57-865615Q04 BELT, Serpentine
    (Alpha With Power Steering)
    BELT, Serpentine
    (Alpha With Power Steering)
  • 14
    57-865615Q03 BELT, Serpentine
    (Bravo With Power Steering)
    BELT, Serpentine
    (Bravo With Power Steering)
  • 14
    57-865615Q09 BELT, Serpentine
    (Alpha Without Power Steering)
    BELT, Serpentine
    (Alpha Without Power Steering)
  • 14
    57-865615Q08 BELT, Serpentine
    (Bravo Without Power Steering)
    BELT, Serpentine
    (Bravo Without Power Steering)
  • 15
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 16
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 17
    12-35332001 WASHER
    WASHER
  • 18
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 19
    12-34714 WASHER
    WASHER
  • 20
    809893T TIMING COVER ASSEMBLY, Screws, Grommets And Oil Seal Are Not Sold Separately)
    TIMING COVER ASSEMBLY, Screws, Grommets And Oil Seal Are Not Sold Separately)
  • 21
    11972 ADAPTOR
    (With Out Remote Oil Filter)
    ADAPTOR
    (With Out Remote Oil Filter)
  • 22
    35-883702Q FILTER, Oil
    (With Out Remote Oil Filter)
    FILTER, Oil
    (With Out Remote Oil Filter)
  • 23
    804910001 RETAINER, Seal
    RETAINER, Seal
  • 24
    26-879194364 SEAL, Oil (Stamped 12555769)
    SEAL, Oil (Stamped 12555769)
  • 24
    26-852941 SEAL, Oil (Stamped 12554314)
    SEAL, Oil (Stamped 12554314)
  • 25
    27-881715 GASKET
    GASKET
  • 26
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 27
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 28
    17-14263 PIN, Dowel, Dowel
    PIN, Dowel, Dowel
  • 29
    11-11996 NUT
    NUT
  • 30
    16-148271 STUD
    STUD
  • -
    27-807756A96 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
