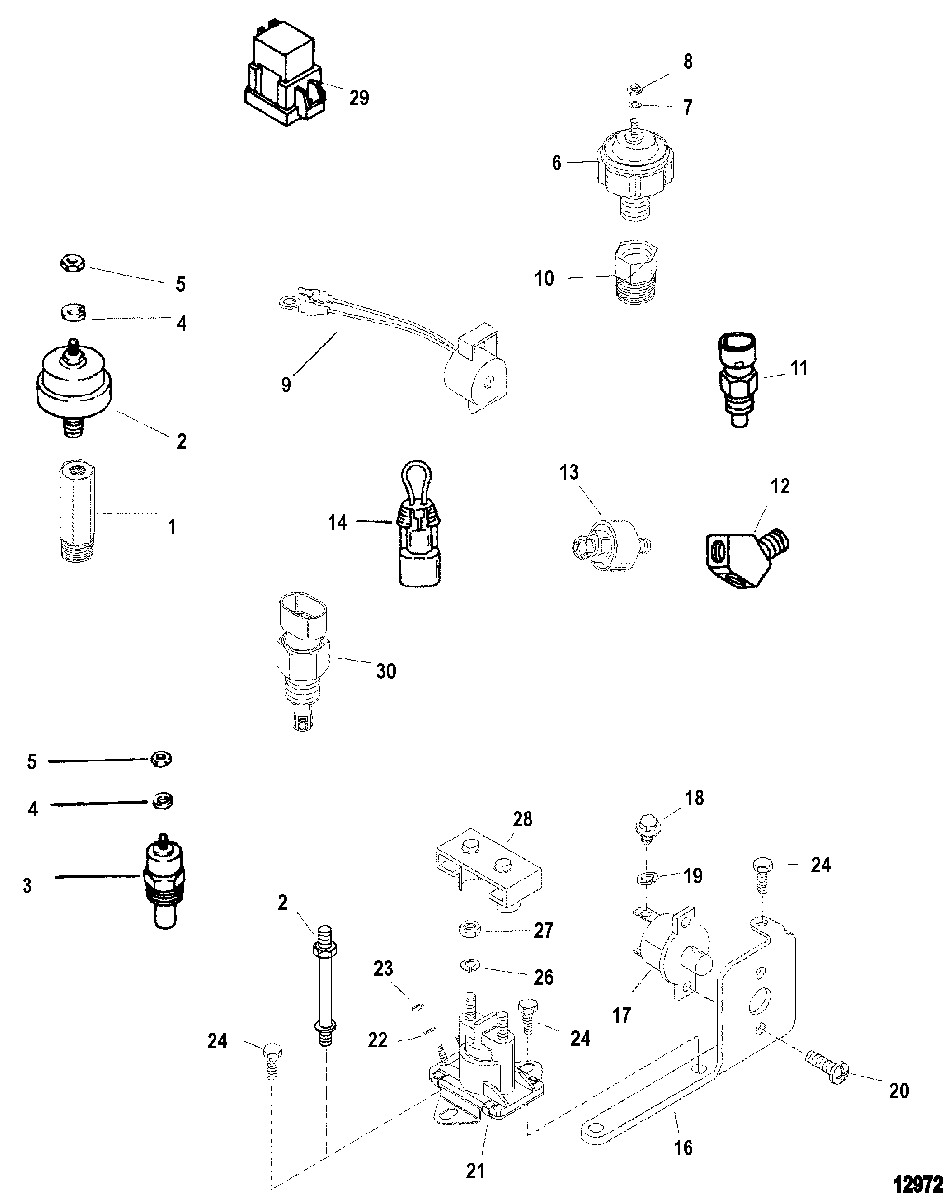

Electrical Components для Mercruiser - 4.3L EFI (GEN+) TBI GM 262 V-6 0L619000 THRU 0M322780

  • №
    Артикул
    Название
  • 1
    22-805059 FITTING
    FITTING
  • 2
    8M0068784 SENDER ASSEMBLY
    SENDER ASSEMBLY
  • 2
    37293T SENDER ASSEMBLY
    (Dual Station)
    SENDER ASSEMBLY
    (Dual Station)
  • 3
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 3
    49734 SENDER
    (Dual Station)
    SENDER
    (Dual Station)
  • 4
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 5
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 6
    87-805605A1 SWITCH ASSEMBLY
    (Audio Warning System)
    SWITCH ASSEMBLY
    (Audio Warning System)
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel
    (Audio Warning System)
    LOCKWASHER, (#10) Stainless Steel
    (Audio Warning System)
  • 8
    11-68219 NUT, (#10-32) Stainless Steel
    (Audio Warning System)
    NUT, (#10-32) Stainless Steel
    (Audio Warning System)
  • 9
    816492A6 ALARM KIT
    (Audio Warning System)
    ALARM KIT
    (Audio Warning System)
  • 10
    22-805059 FITTING
    FITTING
  • 11
    805218T SENSOR
    SENSOR
  • 12
    22-8067051 FITTING, Dual
    FITTING, Dual
  • 13
    808015T SENSOR, ESC Control
    SENSOR, ESC Control
  • 14
    805592A1 CONNECTOR ASSEMBLY
    (Bravo)
    CONNECTOR ASSEMBLY
    (Bravo)
  • 15
    830796A1 CONNECTOR ASSEMBLY
    CONNECTOR ASSEMBLY
  • 16
    899719T01 BRACKET, Electrical
    BRACKET, Electrical
  • 17
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 18
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 19
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 20
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 21
    89-96158T SOLENOID
    SOLENOID
  • 22
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 23
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 24
    10-805564 SCREW, (.250-20 x .750)
    (Alpha)
    SCREW, (.250-20 x .750)
    (Alpha)
  • 25
    16-805459 STUD, Mercathode Mounting
    (Bravo)
    STUD, Mercathode Mounting
    (Bravo)
  • 26
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 27
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 28
    85-97861 INSULATOR
    INSULATOR
  • 29
    86-865202T RELAY
    RELAY
  • 30
    805223T SENSOR
    SENSOR
