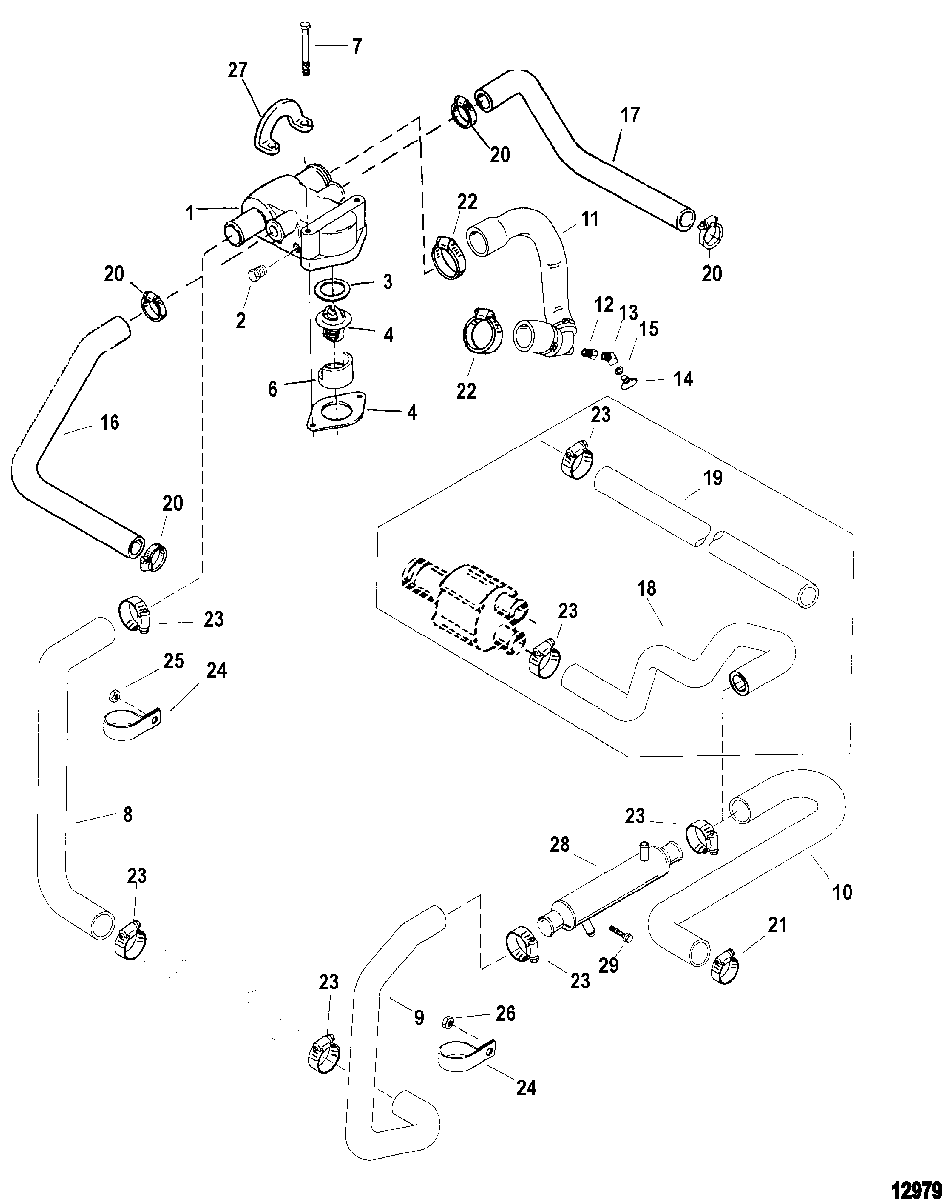

Standard Cooling System для Mercruiser - 4.3L EFI (GEN+) TBI GM 262 V-6 0L619000 THRU 0M322780

  • №
    Артикул
    Название
  • 1
    860256A3 HOUSING ASSEMBLY, Thermostat
    (Alpha)
    HOUSING ASSEMBLY, Thermostat
    (Alpha)
  • 1
    860256A4 HOUSING ASSEMBLY, Thermostat
    (Bravo)
    HOUSING ASSEMBLY, Thermostat
    (Bravo)
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET
    GASKET
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71DegreeC (160 Degree F)
    THERMOSTAT, 71DegreeC (160 Degree F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113179 SCREW, (.375-16 x 3.00)
    SCREW, (.375-16 x 3.00)
  • 8
    32-808033 HOSE, Molded
    HOSE, Molded
  • 9
    32-860206 HOSE, Fuel Cooler To Power Steering Cooler
    HOSE, Fuel Cooler To Power Steering Cooler
  • 10
    32-807661 HOSE
    (Alpha Engines)
    HOSE
    (Alpha Engines)
  • 11
    32-861590A05 HOSE ASSEMBLY, Thermostat Housing To Water Pump With Drain
    HOSE ASSEMBLY, Thermostat Housing To Water Pump With Drain
  • 12
    22-860088 BUSHING
    BUSHING
  • 13
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 14
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 15
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 16
    32-860144 HOSE, Thermostat Housing To Port Exhaust Manifold
    HOSE, Thermostat Housing To Port Exhaust Manifold
  • 16
    32-862139 HOSE, Thermostat Housing To Port Exhaust Manifold
    (To PC Manifold)
    HOSE, Thermostat Housing To Port Exhaust Manifold
    (To PC Manifold)
  • 17
    32-807697 HOSE, Thermostat Housing To Starboard Manifold
    (One Piece Manifold)
    HOSE, Thermostat Housing To Starboard Manifold
    (One Piece Manifold)
  • 17
    32-862124 HOSE, Thermostat Housing To Starboard Manifold
    (Two Piece Manifold)
    HOSE, Thermostat Housing To Starboard Manifold
    (Two Piece Manifold)
  • 18
    32-860205 HOSE, Oil Cooler To Sea Water Pump
    (Bravo Engines)
    HOSE, Oil Cooler To Sea Water Pump
    (Bravo Engines)
  • 19
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    (Bravo Engines)
    HOSE, (96.00 Inches Bulk)
    (Bravo Engines)
  • 20
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 21
    54-815504212 CLAMP, Worm Gear
    (Alpha Engines)
    CLAMP, Worm Gear
    (Alpha Engines)
  • 22
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 22
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    (Bravo Engines)
    CLAMP, Worm Gear (1.98 DIameter)
    (Bravo Engines)
  • 23
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 24
    54-816398 CLIP
    CLIP
  • 25
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 26
    11-4013610 NUT, (M10) Stainless Steel
    NUT, (M10) Stainless Steel
  • 27
    12552 LIFTING EYE
    LIFTING EYE
  • 28
    8M0125855 COOLER
    COOLER
  • 29
    10-816585 SCREW, (.375-18 x .875)
    Metal Cooler
    SCREW, (.375-18 x .875)
    Metal Cooler
  • 29
    10-8M2016106 SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
    SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • -
    27-807756A96 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
  • -
    32-861590A05 HOSE, Molded
    HOSE, Molded
