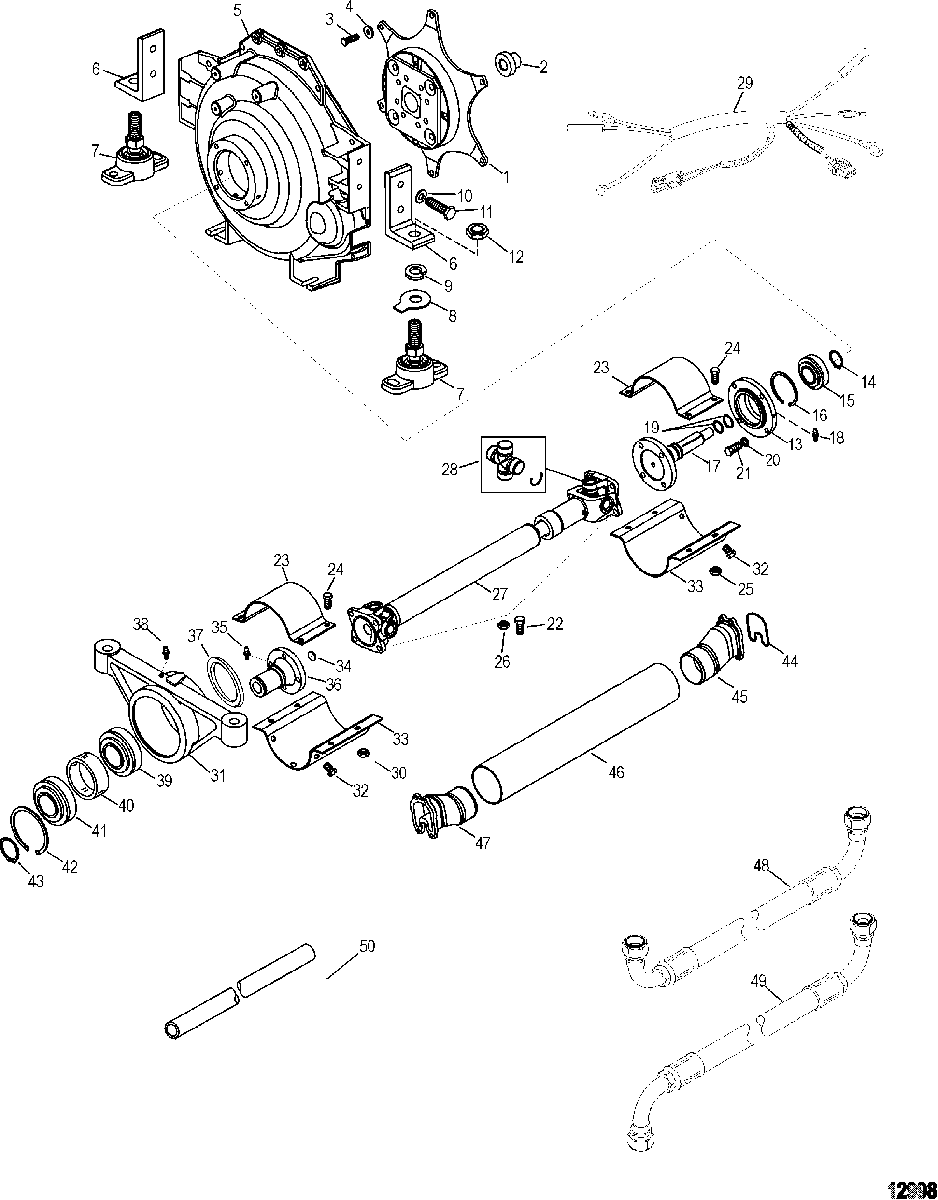

Jackshaft для Mercruiser - 4.3L EFI (GEN+) TBI GM 262 V-6 0L619000 THRU 0M322780

  • №
    Артикул
    Название
  • 1
    862838 DRIVEPLATE ASSEMBLY
    DRIVEPLATE ASSEMBLY
  • 2
    23-862834 BUSHING
    BUSHING
  • 3
    10-14883 SCREW, (.375-16 x 1.12), Hex HD
    SCREW, (.375-16 x 1.12), Hex HD
  • 4
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 5
    862737 HOUSING, Flywheel
    HOUSING, Flywheel
  • 6
    862738 BRACKET, Flywheel Housing Mounts
    BRACKET, Flywheel Housing Mounts
  • 7
    66284A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 8
    14-12657 TAB WASHER, Tab
    TAB WASHER, Tab
  • 9
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 10
    13-32993 LOCKWASHER, (.437), Splitlock
    LOCKWASHER, (.437), Splitlock
  • 11
    10-47651 SCREW, (.437-14 x 1.50), Hex HD
    SCREW, (.437-14 x 1.50), Hex HD
  • 12
    11-859126 NUT, (.750-16)
    NUT, (.750-16)
  • 13
    862833 BEARING, Adaptor
    BEARING, Adaptor
  • 14
    53-8M0141818 RING, Retaining, External
    RING, Retaining, External
  • 15
    30-879194A03 BEARING, Ball
    BEARING, Ball
  • 16
    53-94104 RING, Retaining, Retainer, Internal
    RING, Retaining, Retainer, Internal
  • 17
    862832T SHAFT, Output
    SHAFT, Output
  • 18
    22-49099 FITTING, Grease
    FITTING, Grease
  • 19
    25-29845 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 20
    13-35048 LOCKWASHER, (.375), Splitlock
    LOCKWASHER, (.375), Splitlock
  • 21
    10-14883 SCREW, (.375-16 x 1.12), Hex HD
    SCREW, (.375-16 x 1.12), Hex HD
  • 22
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 23
    862873T SHIELD, Upper
    SHIELD, Upper
  • 24
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 25
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 26
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 27
    862772A28 JACKSHAFT ASSEMBLY
    JACKSHAFT ASSEMBLY
  • 28
    880800A1 UNIVERSAL JOINT, Cross Assembly
    UNIVERSAL JOINT, Cross Assembly
  • 29
    84-41575A7 HARNESS ASSEMBLY, Extension
    HARNESS ASSEMBLY, Extension
  • 30
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 31
    817416A4 HOUSING ASSEMBLY, Bearing Assembly
    HOUSING ASSEMBLY, Bearing Assembly
  • 32
    10-76926 SCREW, (.375-16 x .875)
    (Quanity Three With Housing Assembly #817416A 4)
    SCREW, (.375-16 x .875)
    (Quanity Three With Housing Assembly #817416A 4)
  • 33
    93918A1 SHIELD, Lower, Lower
    (Quantity One With Housing Assembly #817416A 4)
    SHIELD, Lower, Lower
    (Quantity One With Housing Assembly #817416A 4)
  • 34
    19-93921 EXPANSION PLUG
    EXPANSION PLUG
  • 35
    22-74036 FITTING, Grease
    FITTING, Grease
  • 36
    NSS NOT SOLD SEPARATE, Shaft - Input
    NOT SOLD SEPARATE, Shaft - Input
  • 37
    26-93924 SEAL, Oil
    SEAL, Oil
  • 38
    22-74036 FITTING, Grease
    FITTING, Grease
  • 39
    30-860081 BEARING, Ball
    BEARING, Ball
  • 40
    23-817417 SPACER, Bearing
    SPACER, Bearing
  • 41
    30-93944A2 BEARING SET, Ball
    BEARING SET, Ball
  • 42
    53-93914 RING, Retaining, Internal
    RING, Retaining, Internal
  • 43
    53-93915 RING, Retaining, External
    RING, Retaining, External
  • 44
    41802 SEAL, Rubber
    SEAL, Rubber
  • 45
    862268T2 TUBE, Exhaust
    TUBE, Exhaust
  • 47
    862268T1 TUBE, Exhaust
    TUBE, Exhaust
  • 48
    32-80622236 HOSE, Pressure (120 Inches)
    HOSE, Pressure (120 Inches)
  • 49
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return - Pressure
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return - Pressure
  • 50
    32-862877 HOSE, Transom to Cooler
    HOSE, Transom to Cooler
